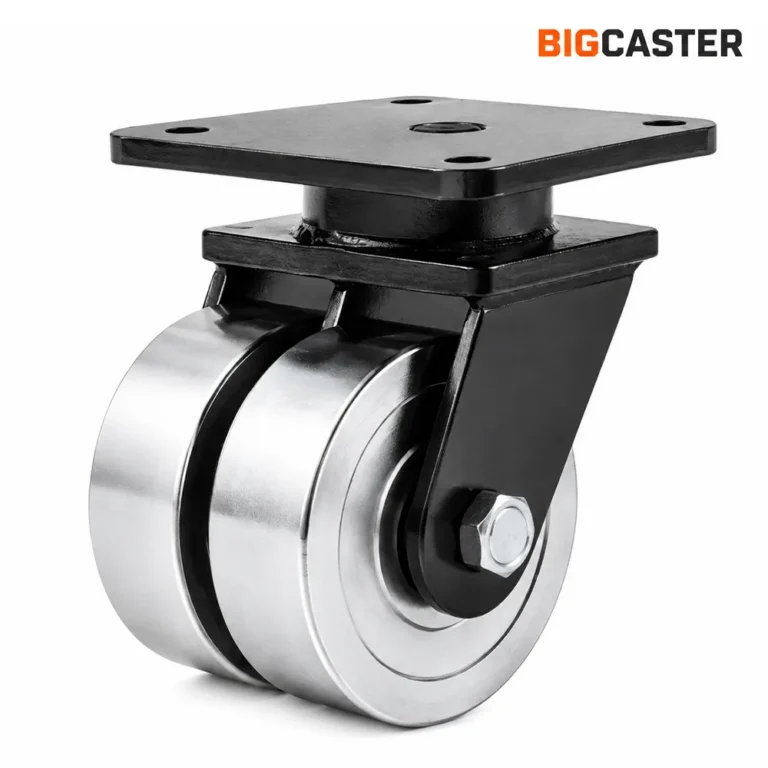

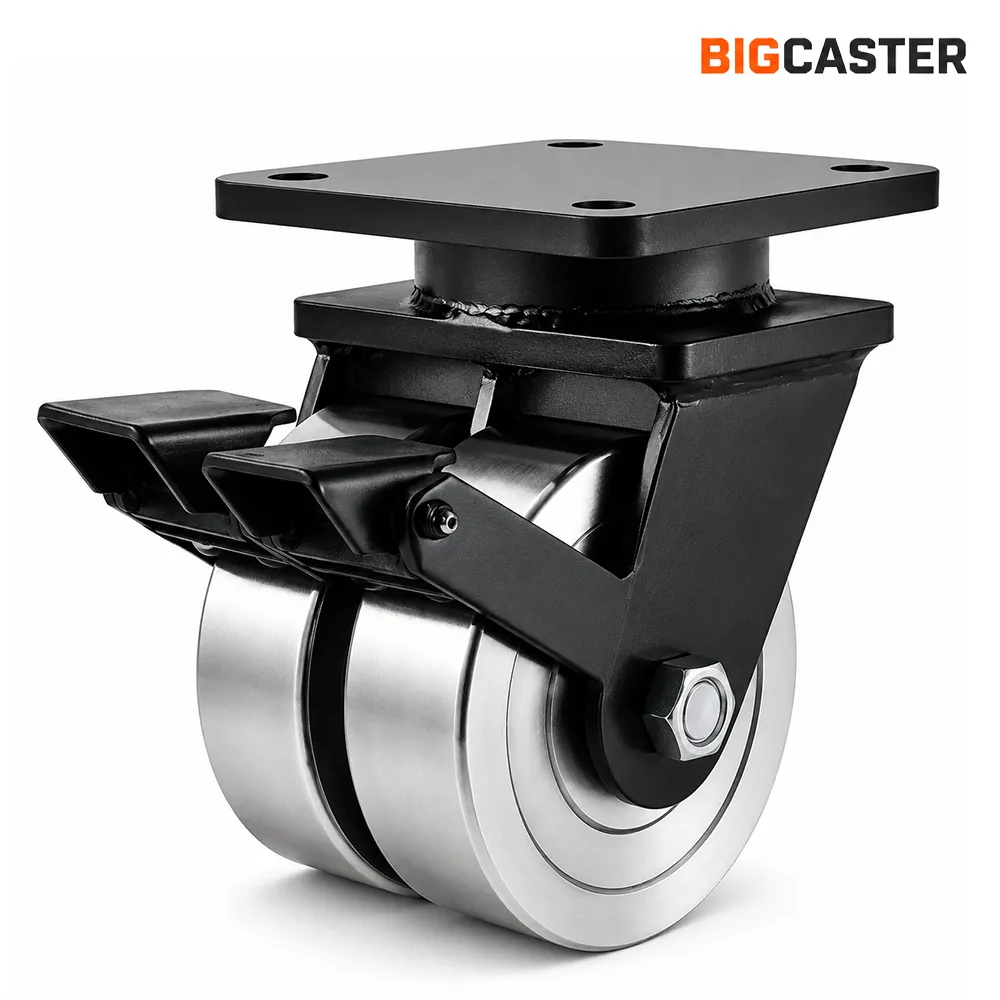

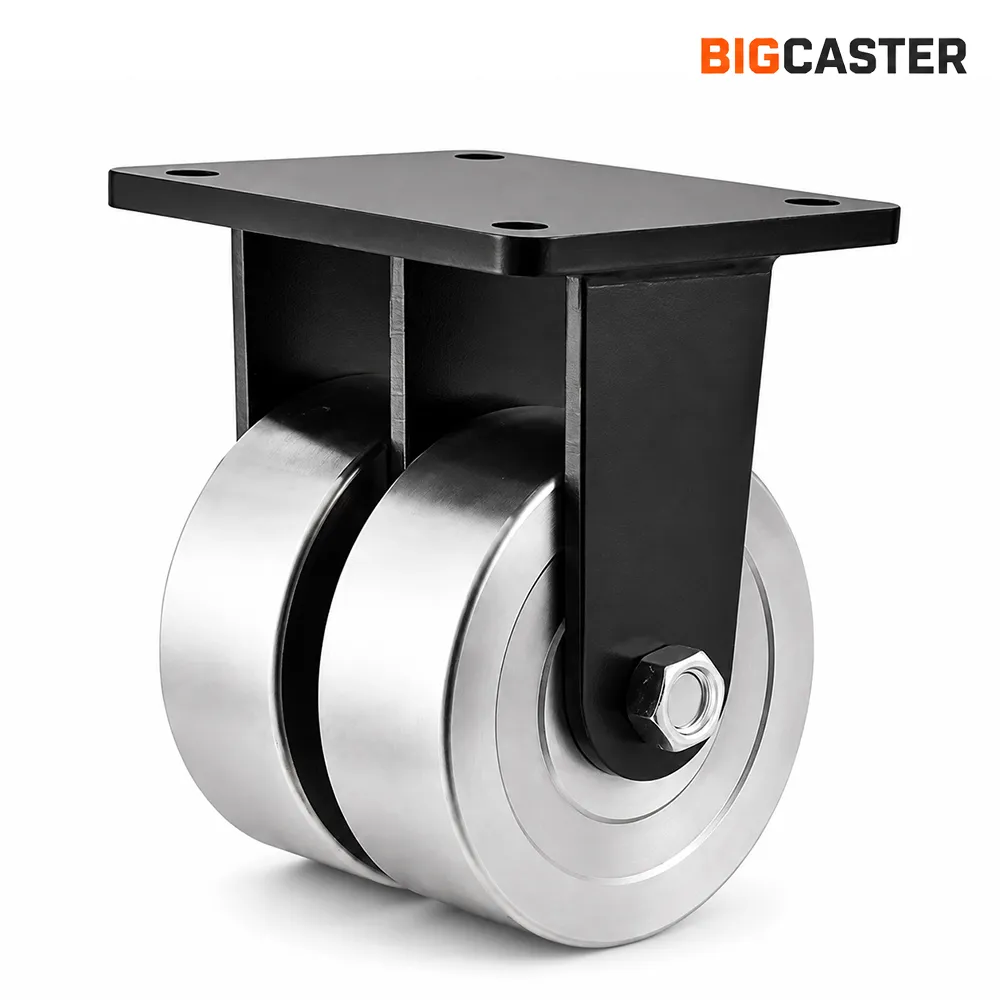

Super Heavy Duty Dual-Wheel Steel Casters E0301

Load Capacity (lbs): 13000-16000 lbs

Load Capacity (kg): 6000-7300 kg

SKU: E0301 Series

Wheel Material: Steel

Super heavy-duty forged steel double-wheel casters. Wheels are made of 45# steel. Each wheel is equipped with 4 ball bearings. Individual wheel width is 75mm. Overall wheel width is 150mm. The swivel mechanism uses a flat tapered bearing and an impact-resistant structure. Custom caster configurations can be made to suit your load-bearing requirements, installation needs, and operating environment.

Casters Data Sheet:

Size	Diameter (mm)	Wheel Width (mm)	Load (KG)	Bearing	Height (mm)	Plate Size (mm)	Hole Space (mm)	Bracket Thickness (mm)
4''	100	75*2	6000	6305*8	190	250*200	190*150	Top plate: 20/ Frame: 14
5''	125	75*2	6000	6305*8	205	250*200	190*150	Top plate: 20/ Frame: 14
6''	150	75*2	6700	6305*8	245	250*200	190*150	Top plate: 20/ Frame: 14
8''	200	75*2	6700	6305*8	259	250*200	190*150	Top plate: 20/ Frame: 14
10''	250	75*2	7300	6305*8	340	250*200	190*150	Top plate: 20/ Frame: 14
12''	300	75*2	7300	6305*8	390	250*200	190*150	Top plate: 20/ Frame: 14
