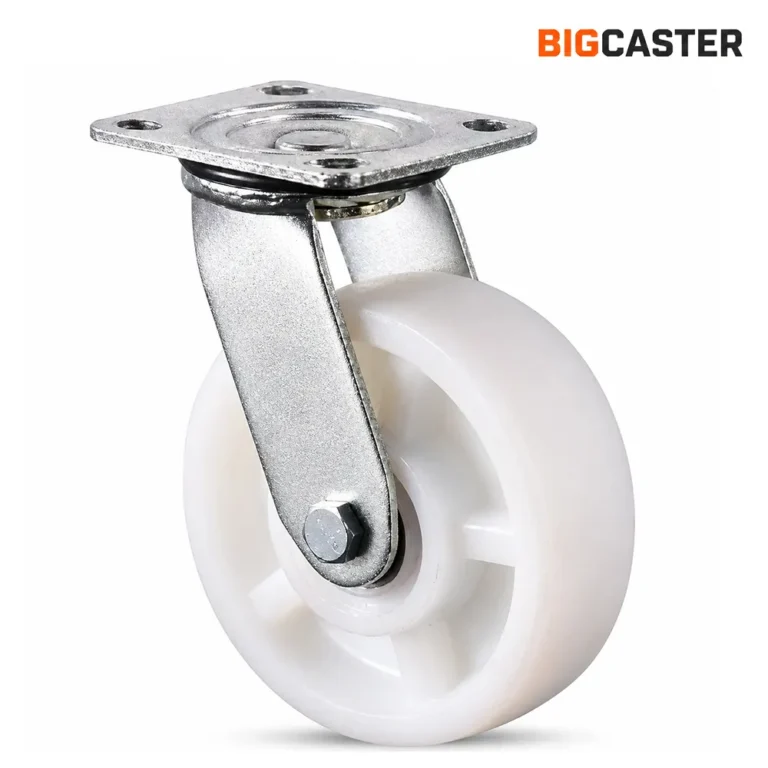

heavy-duty-white-nylon-swivel-caster-G4802

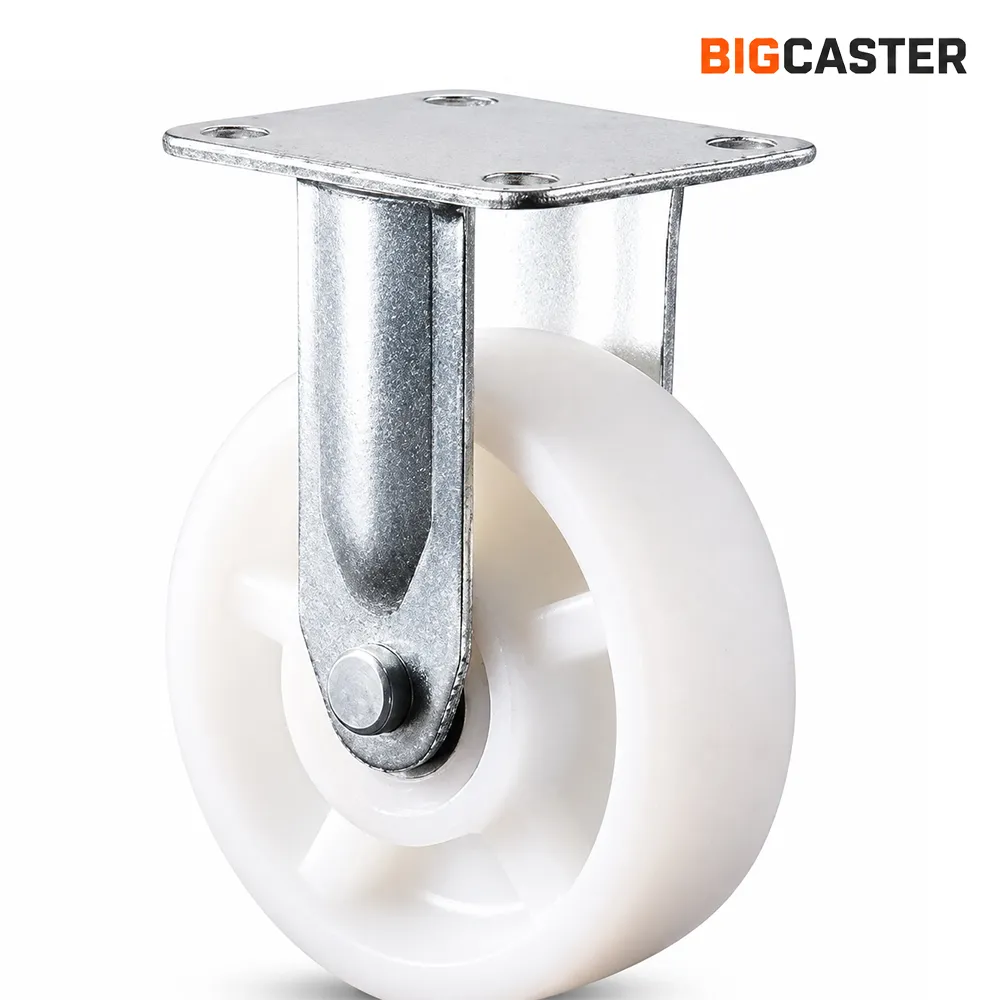

heavy-duty-white-nylon-rigid-caster-G4802

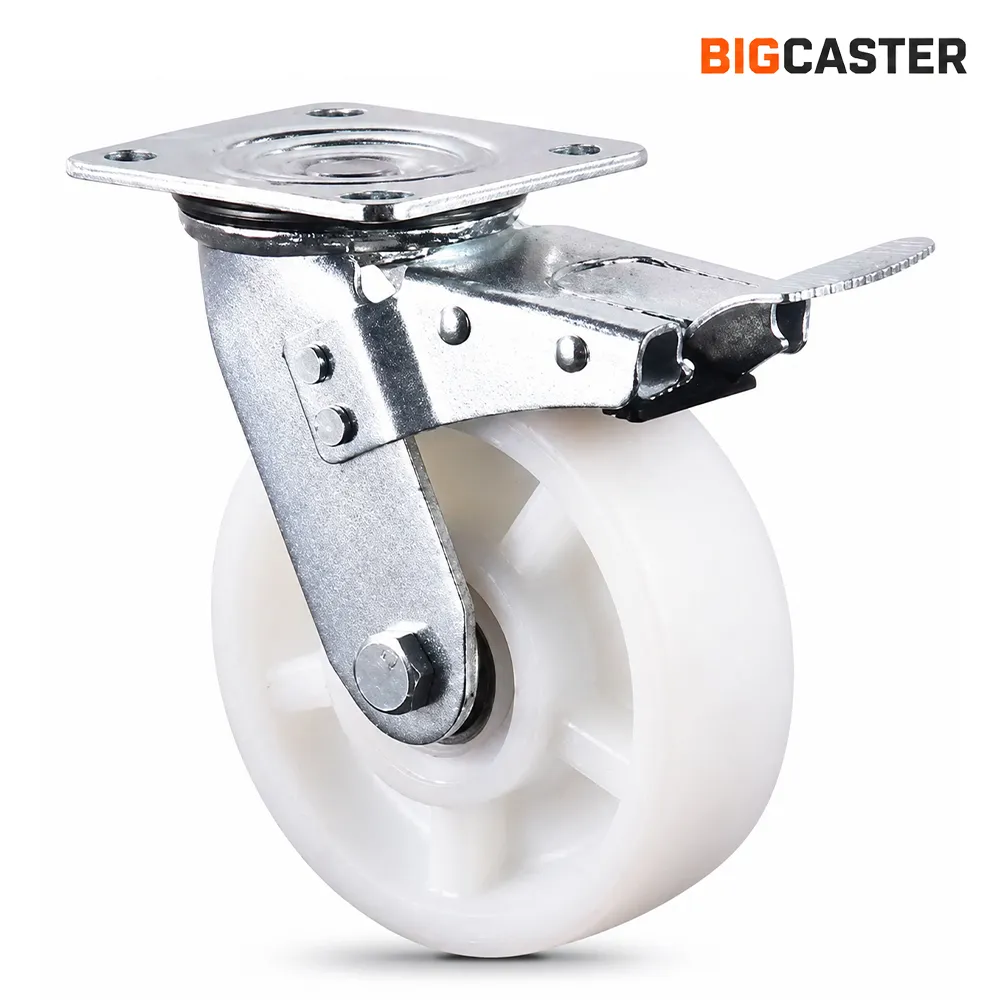

heavy-duty-white-nylon-brake-caster-G4802

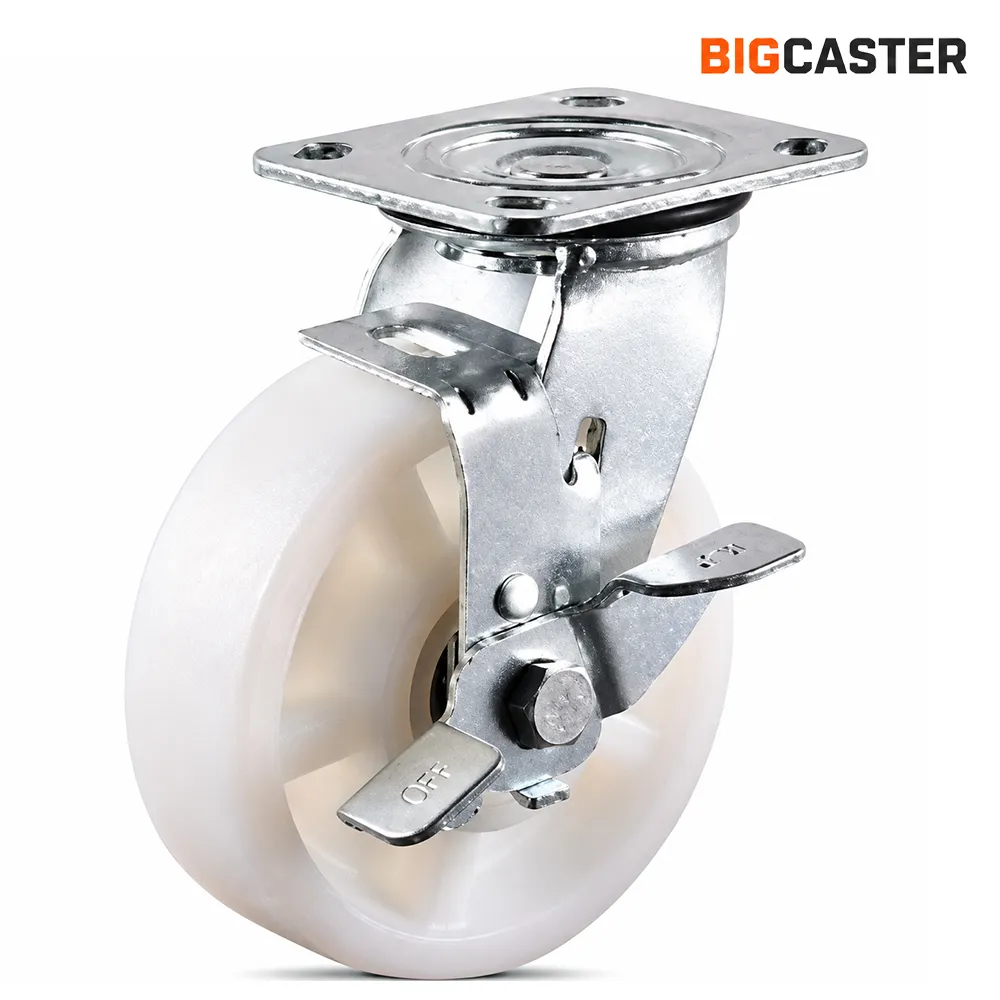

heavy-duty-white-nylon-side-brake-caster-G4802

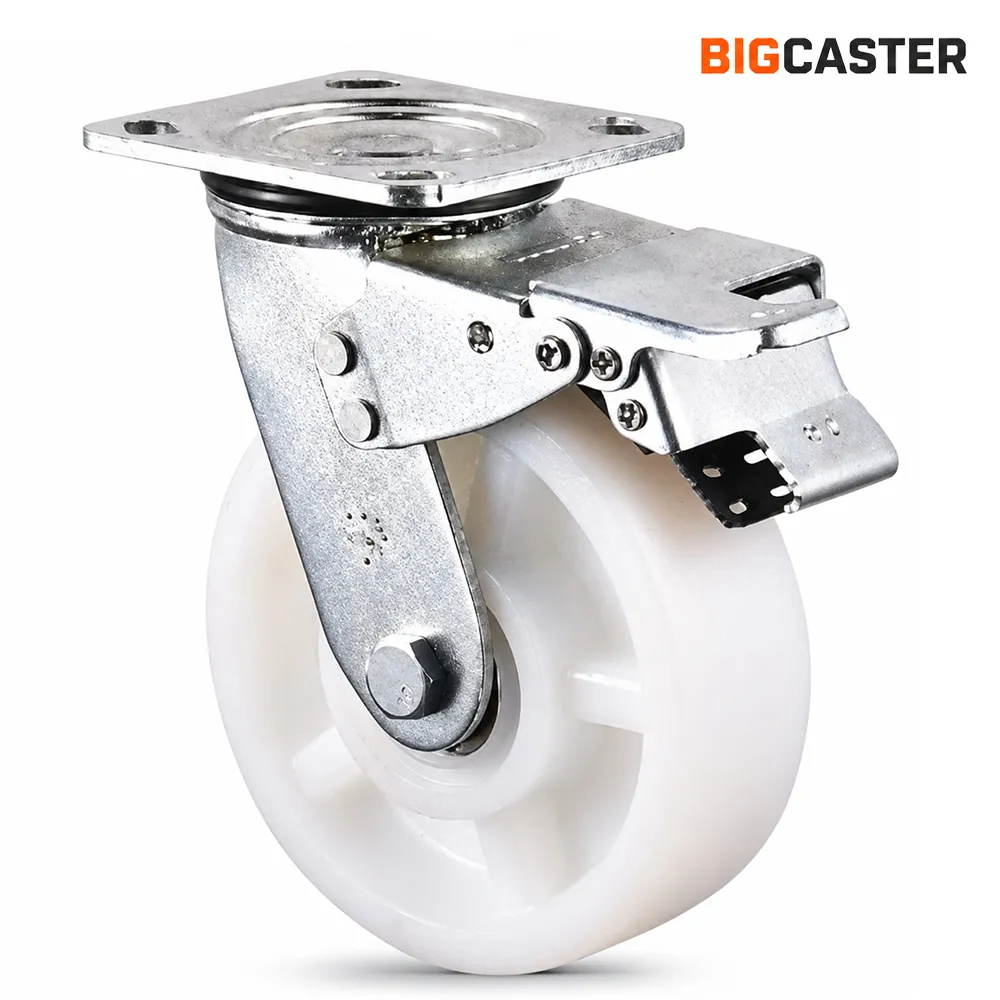

heavy-duty-white-nylon-AB-brake-caster

Heavy Duty White Nylon Casters G4802

Load Capacity (lbs): 900-1800 lbs

Load Capacity (kg): 400-800 kg

SKU: G4802 Series

Wheel Material: Pure Nylon (PA)

5mm galvanized bracket, 50mm wide pure nylon wheels, equipped with 2 ball bearings, achieving a maximum load of 500kg, wear-resistant and oil-resistant. Top plate size can be customized, and the bracket and bearing materials can be upgraded to stainless steel.

Casters Data Sheet:

Size	Diameter (mm)	Wheel Width (mm)	Load (KG)	Bearing	Height (mm)	Rotation Radius (mm)	Plate Size (mm)	Hole Space (mm)	Aperture (mm)
4''	100	50	400	6202*2	143	80	115*100	84*72	11
5''	125	50	500	6202*2	165	96	115*100	84*72	11
6''	150	50	600	6202*2	190	117	115*100	84*72	11
8''	200	50	800	6202*2	241	151	115*100	84*72	11
