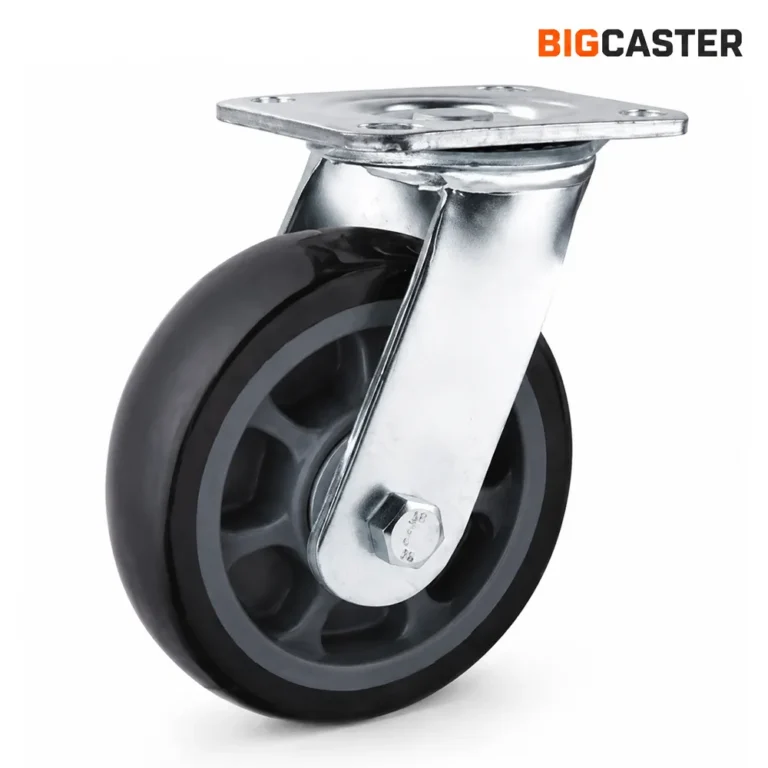

heavy-duty-black-polyurethane-swivel-caster-G4204

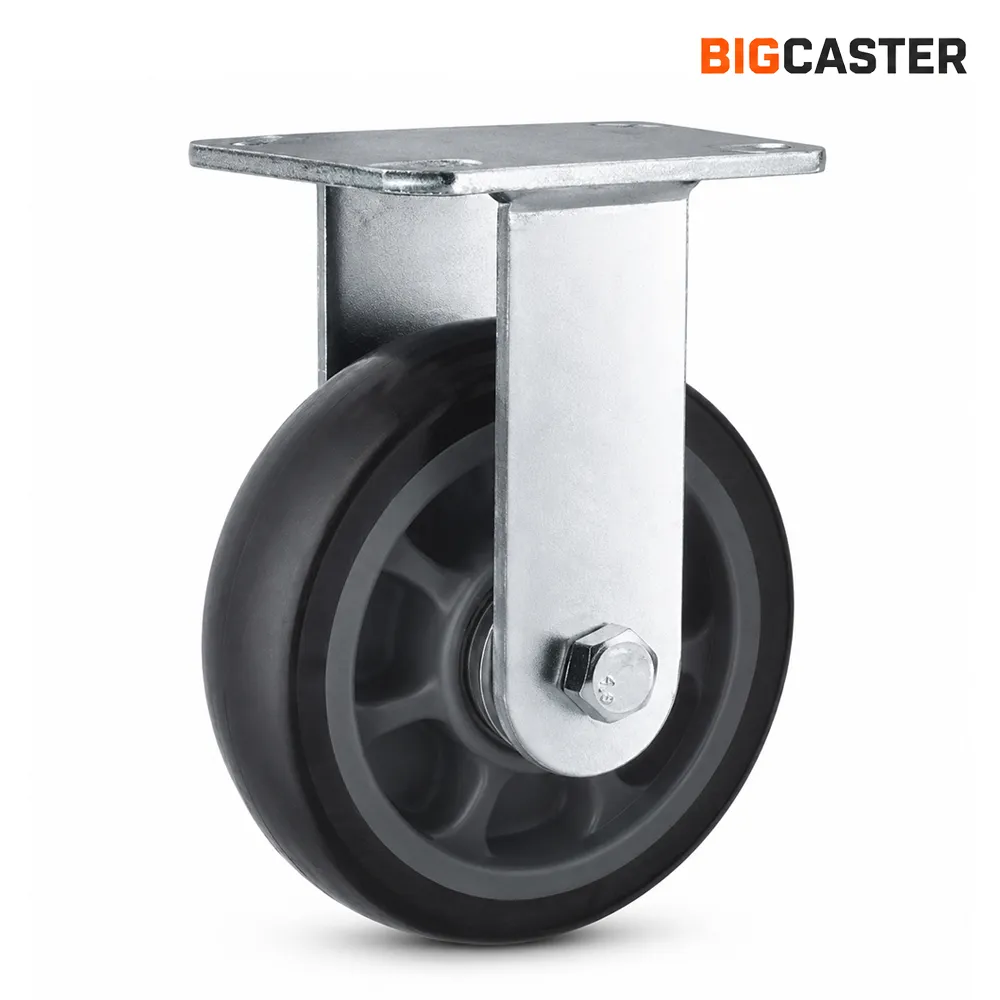

heavy-duty-black-polyurethane-rigid-caster-G4204

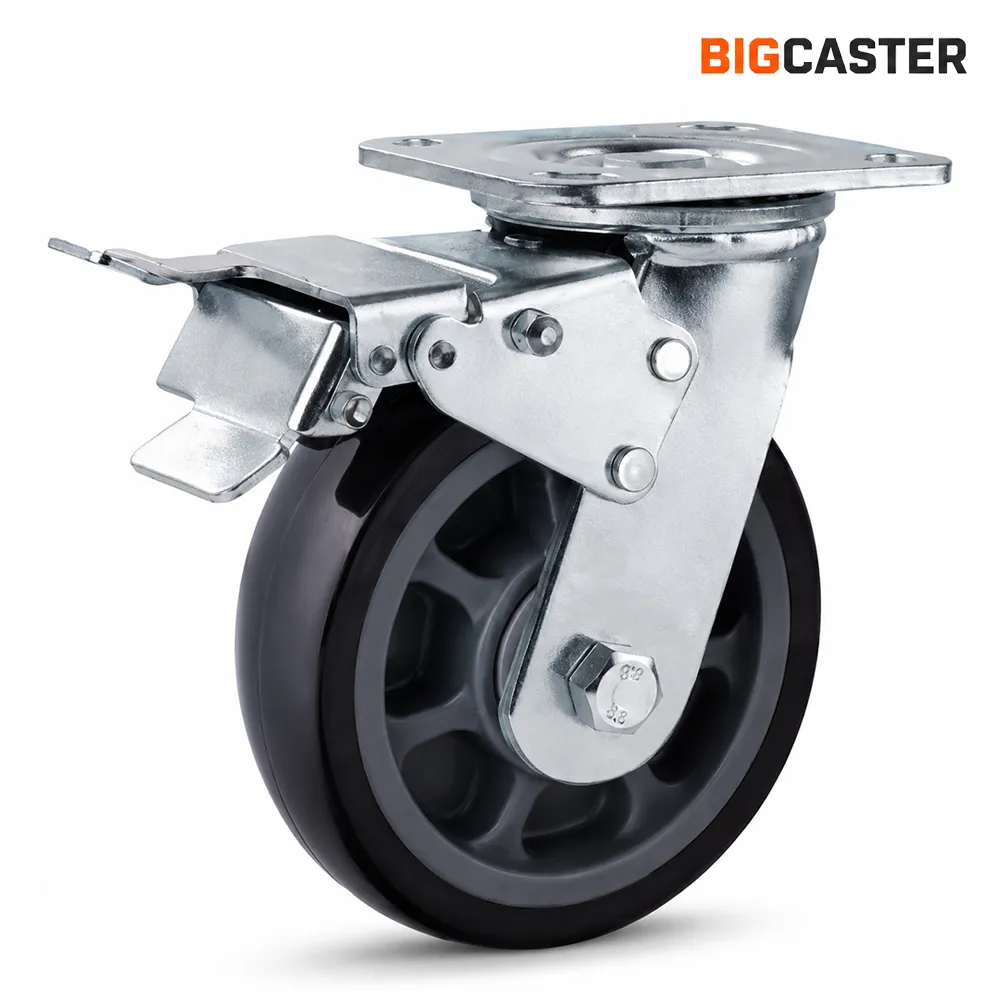

heavy-duty-black-polyurethane-brake-caster-G4204

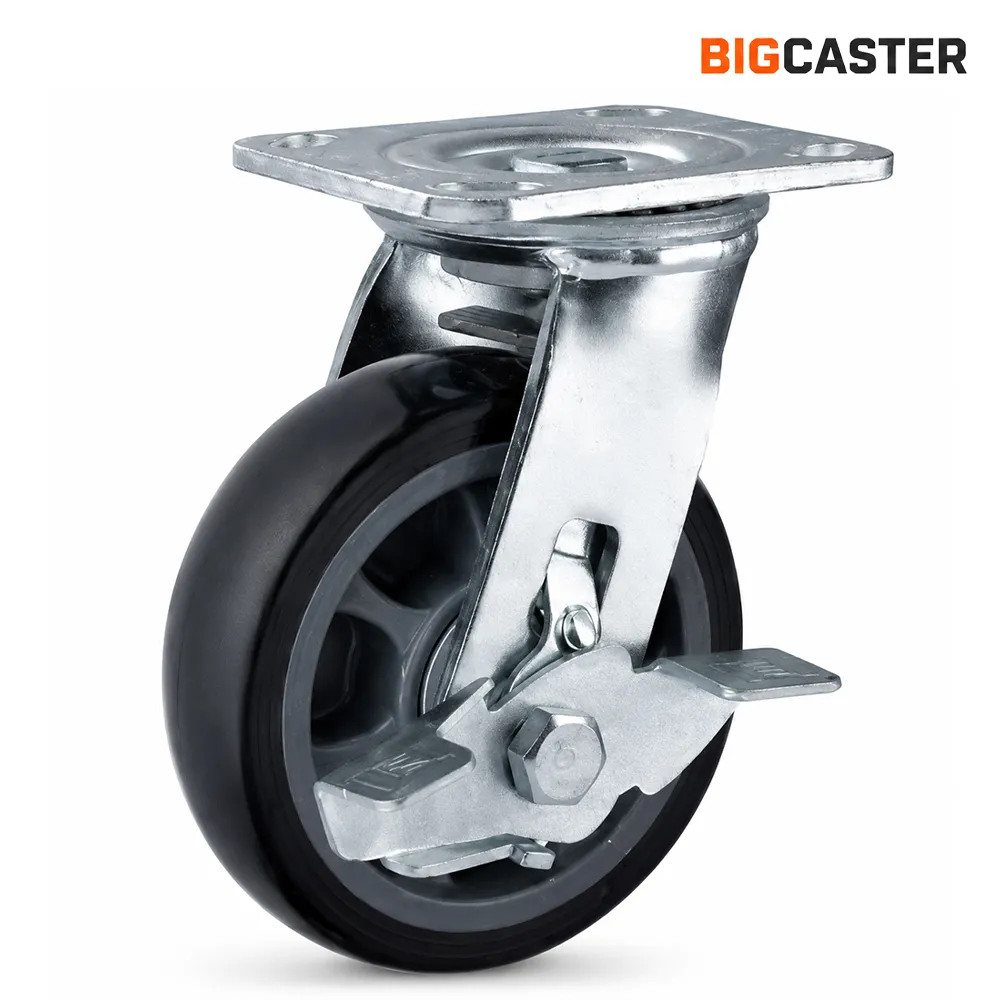

heavy-duty-black-polyurethane-side-brake-caster-G4204

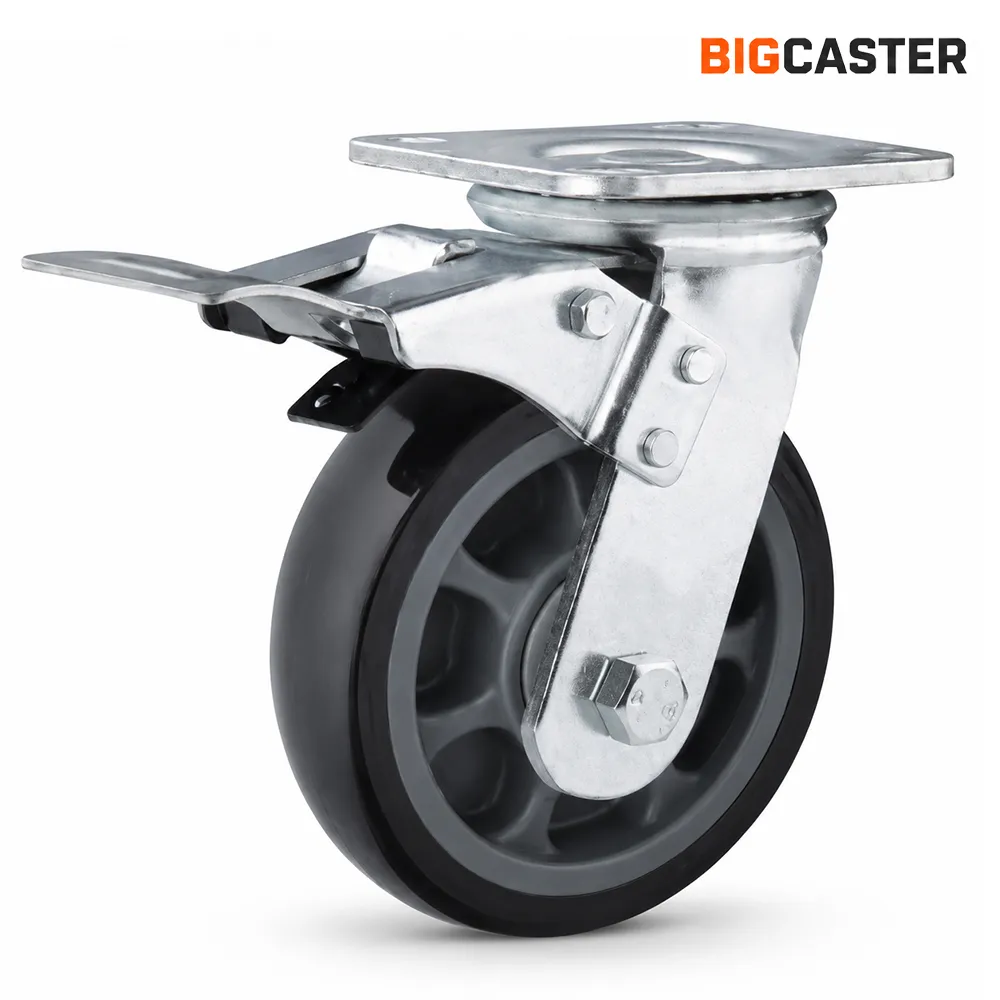

heavy-duty-black-polyurethane-caster-wheel-G4204

Heavy Duty Black Polyurethane Caster Wheels G4204

Load Capacity (lbs): 650-1000 lbs
Load Capacity (kg): 290-430 kg
SKU: G4204 Series
Wheel Material: Polyurethane wheels + PP core
Heavy-duty PU casters, 6mm galvanized brackets (secured with screws and nuts and then riveted), PP wheel cores encased in high-wear-resistant polyurethane, equipped with double ball bearings and bearing caps, with optional dust covers or anti-tangle covers. Offers high quietness and floor protection, suitable for various environments. Top plate size and bracket can be customized.
Get a Quick Quote
Customize Needs

Casters Data Sheet:

Size Diameter (mm) Wheel Width (mm) Load (KG) Bearing Height (mm) Rotation Radius (mm) Plate Size (mm) Hole Space (mm) Aperture (mm)
4'' 100 50 290 6202*2 143 83 115*100 84*72 11
5'' 125 50 340 6202*2 165 96 115*100 84*72 11
6'' 150 50 400 6202*2 190 113 115*100 84*72 11
8'' 200 50 430 6202*2 241 145 115*100 84*72 11
