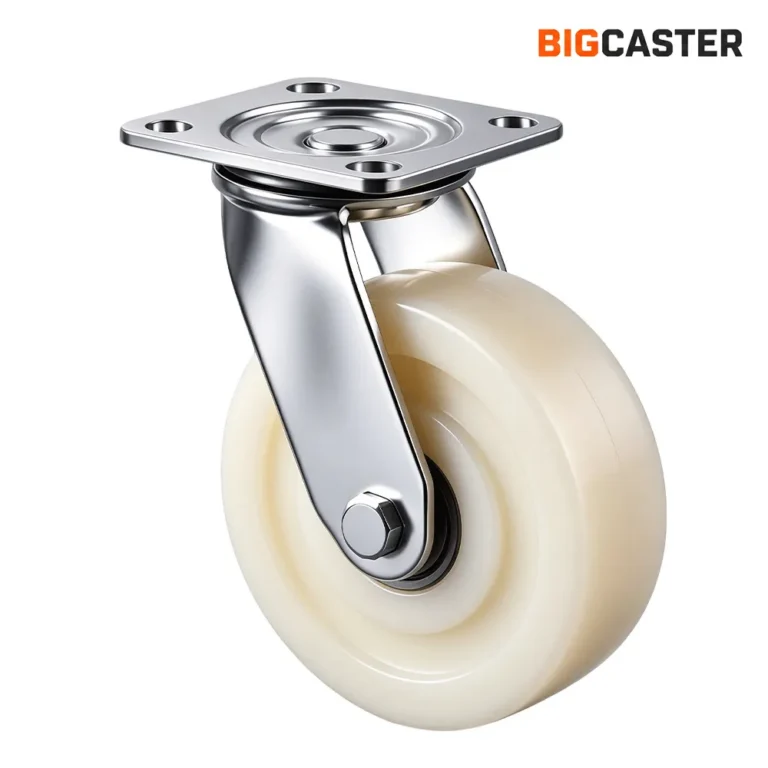

Heavy-duty-PA-pure-nylon-swivel-caster-G4801-1

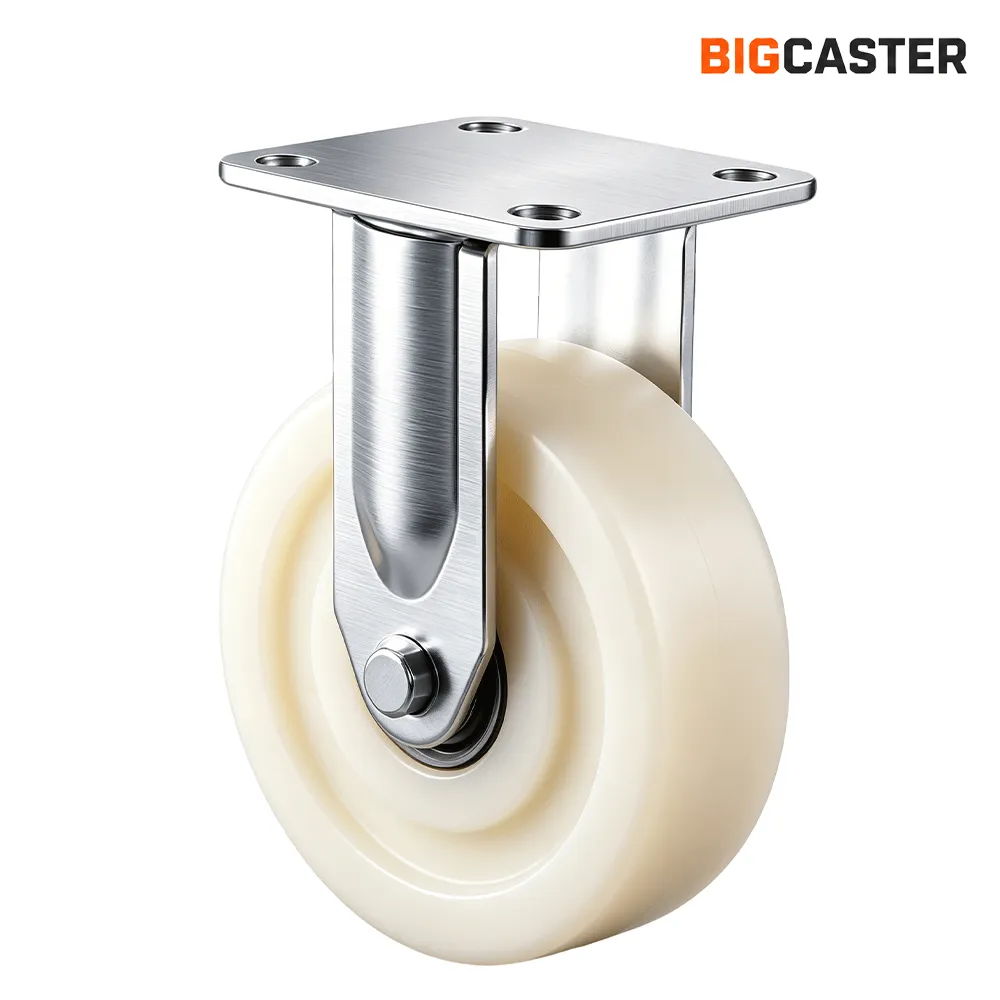

Heavy-duty-PA-pure-nylon-rigid-caster-G4801-2

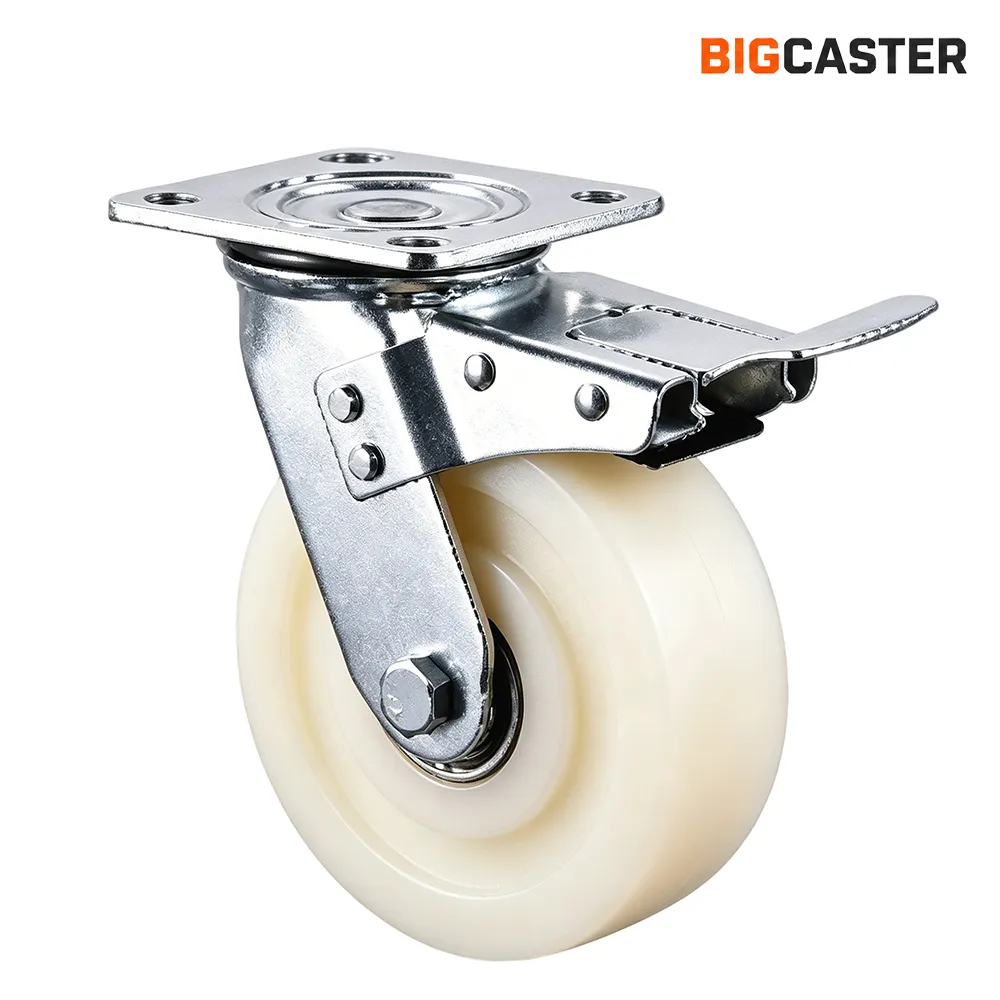

Heavy-duty-PA-pure-nylon-swivel-brake-G4801-3

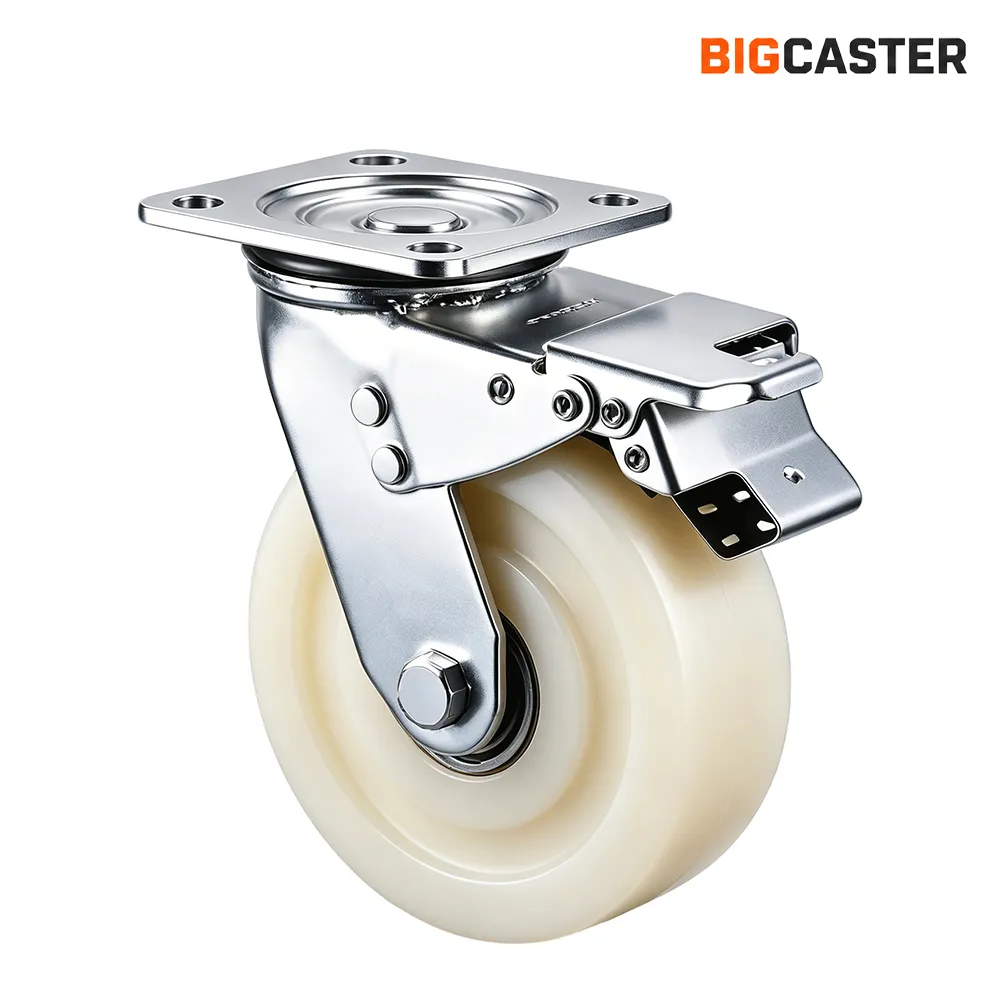

Heavy-duty-PA-pure-nylon-AB-brake-caster-G4801-3

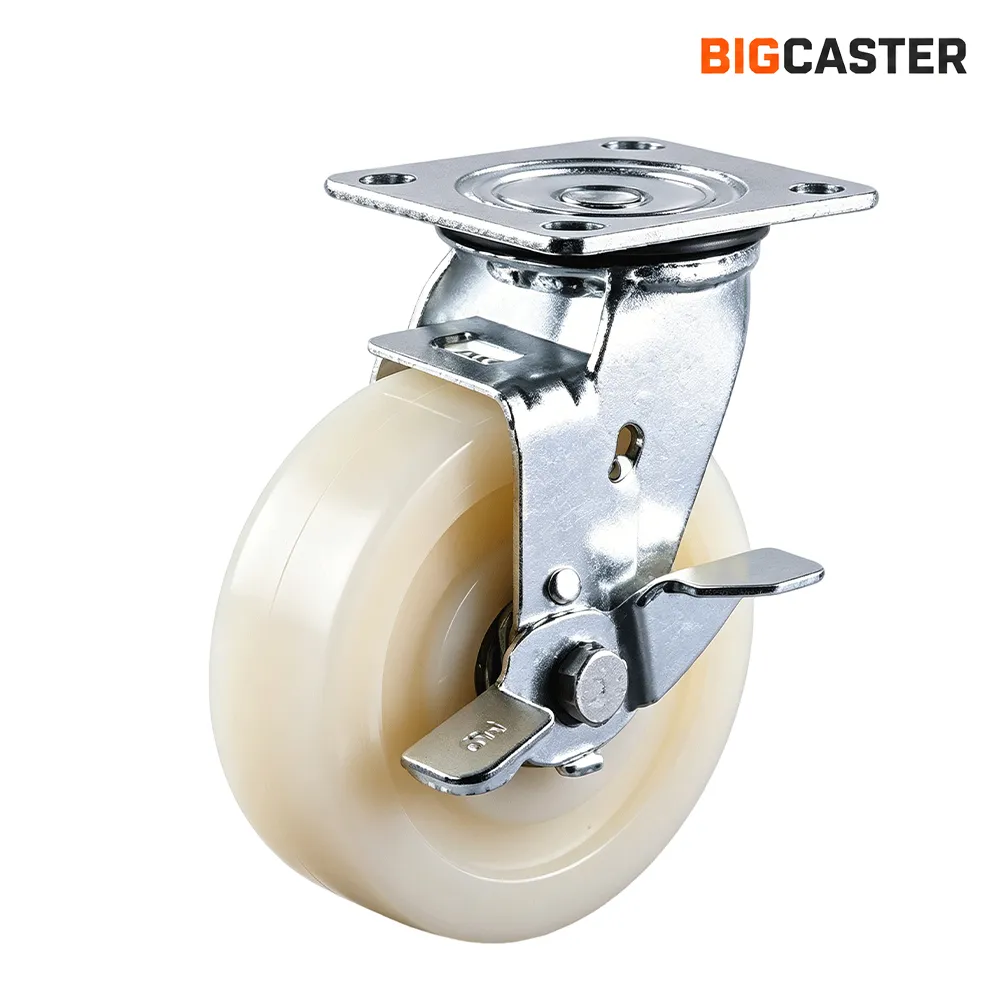

Heavy-duty-PA-pure-nylon-side-brake-caster-G4801-

Heavy Duty PA Nylon Caster Wheels G4801

Load Capacity (lbs): 1000-2200 lbs

Load Capacity (kg): 500 – 1000 kg

SKU: G4801 Series

Wheel Material: Pure nylon

6mm galvanized bracket, 50mm wide solid nylon wheels, equipped with high-strength ball bearings, achieving a maximum load of 1000kg, high wear resistance, and high load capacity, meeting the needs of heavy-duty industrial scenarios. Top plate size and bracket material can be customized.

Casters Data Sheet:

Size	Diameter (mm)	Wheel Width (mm)	Load (KG)	Bearing	Height (mm)	Rotation Radius (mm)	Plate Size (mm)	Hole Space (mm)	Aperture (mm)
4''	100	50	500	6202*2	143	82	115*100	84*72	11
5''	125	50	600	6202*2	165	93	115*100	84*72	11
6''	150	50	700	6202*2	190	111	115*100	84*72	11
8''	200	50	1000	6202*2	241	139	115*100	84*72	11
