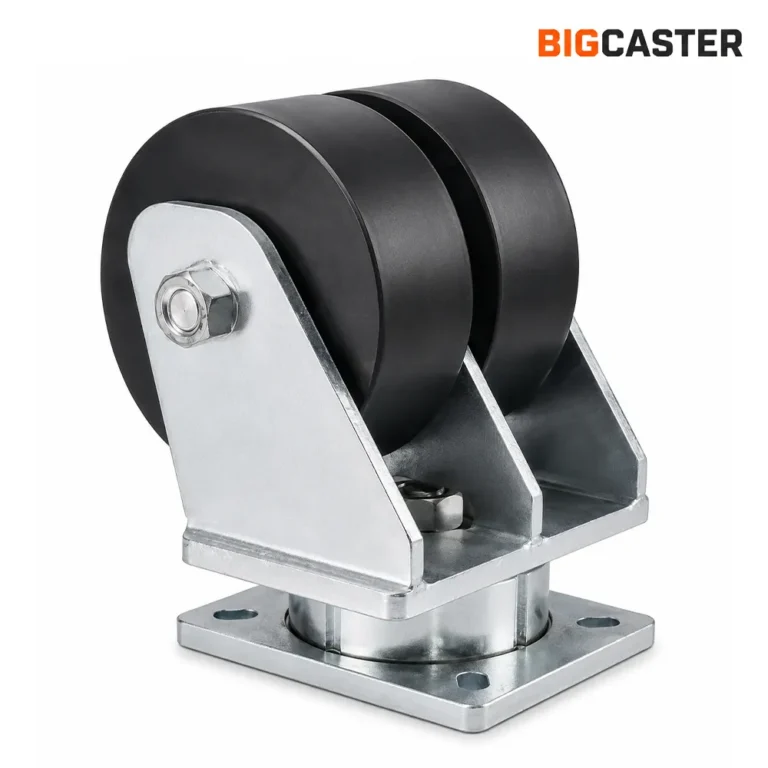

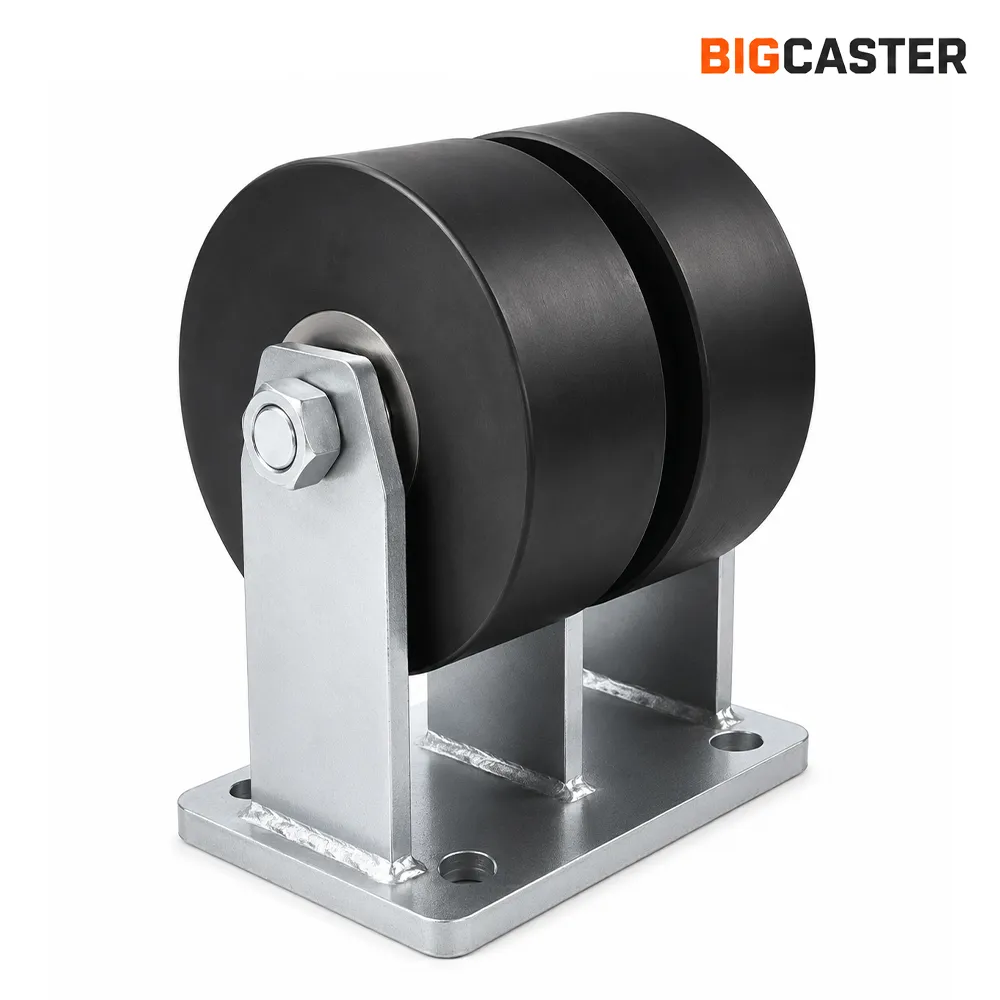

Super Heavy Duty Dual-Wheel MC Nylon Casters E0801

Load Capacity (lbs): 6600-11000 lbs

Load Capacity (kg): 3000-6000 kg

SKU: E0801 Series

Wheel Material: MC Nylon

Super heavy-duty dual-wheel MC nylon casters. The wheels are made of high-strength MC nylon, and each wheel is equipped with 4 ball bearings for ultra-high load capacity. The caster bracket structure is impact-resistant, suitable for use in ultra-heavy industrial environments and on containers. Load capacity and installation dimensions can be customized to your needs.

Casters Data Sheet:

Size	Diameter (mm)	Wheel Width (mm)	Load (KG)	Bearing	Height (mm)	Rotation Radius (mm)	Swivel Plate Size (mm)	Rigid Plate Size (mm)	Hole Space (mm)	Aperture (mm)
6''	150	75*2	3000	6205*8	248	149	200*160	230*200	155*105	23*14
8''	200	75*2	4000	6205*8	298	178	200*160	230*200	155*105	23*14
10''	250	75*2	4500	6205*8	348	218	200*160	230*200	155*105	23*14
12''	300	75*2	5000	6205*8	398	249	200*160	230*200	155*105	23*14
