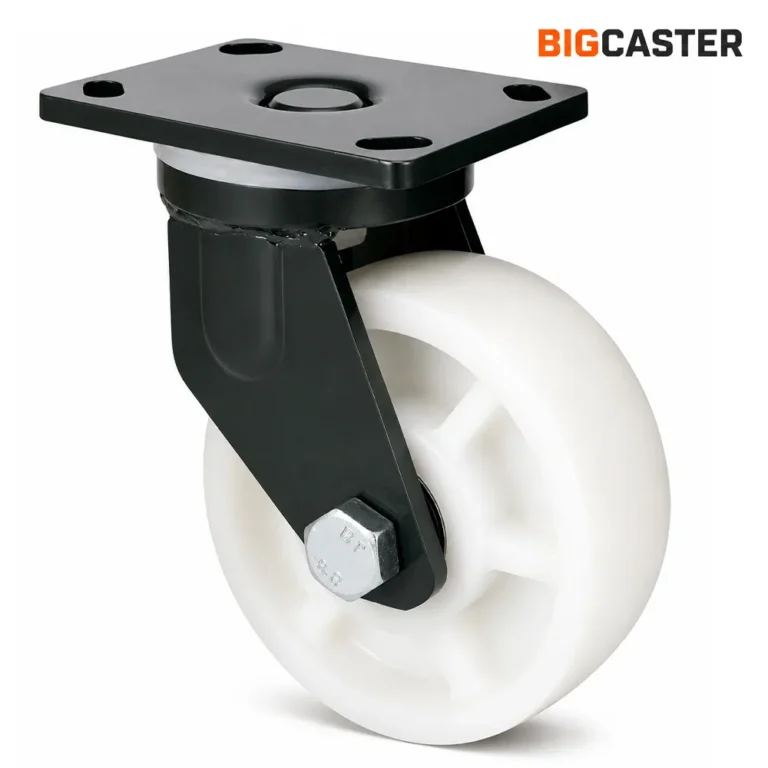

Heavy-duty-manganese-steel-bracket-with-nylon-swivel-casters-T0702
Heavy-duty-manganese-steel-bracket-nylon-casters-T0702

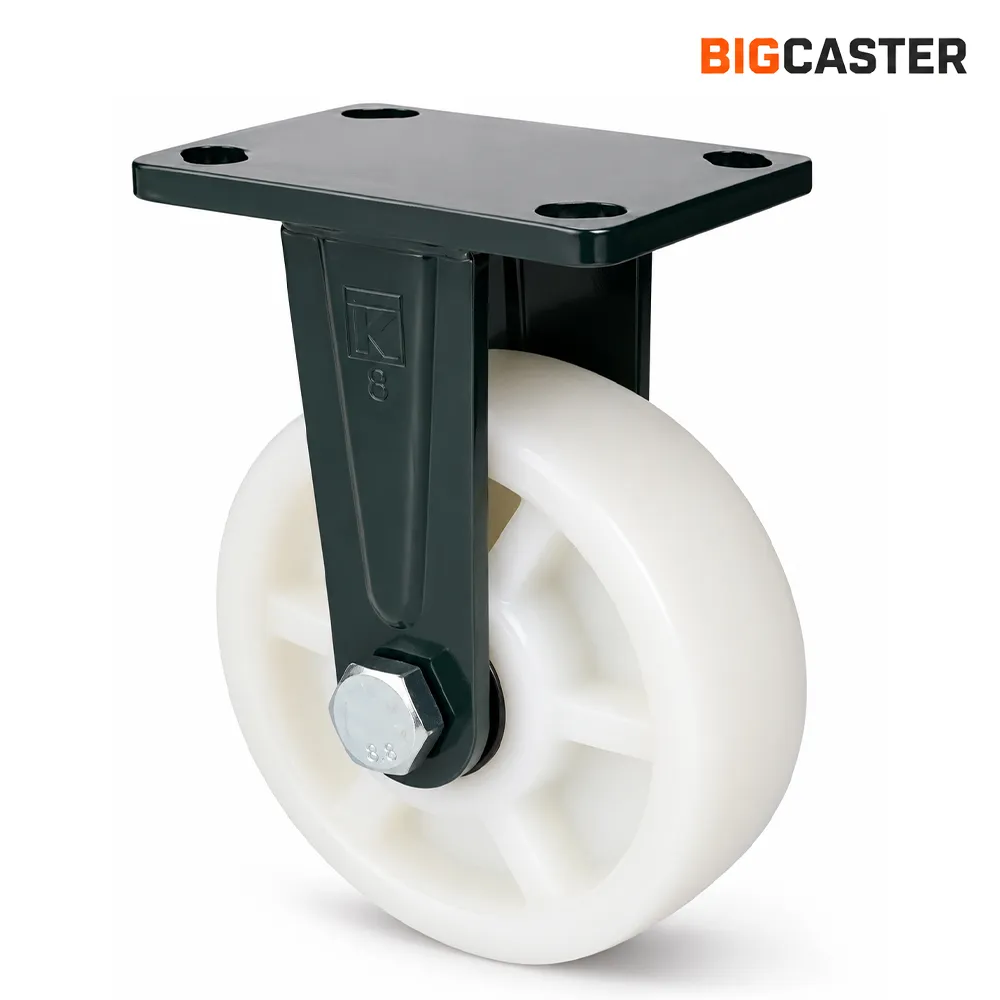

Heavy-duty-manganese-steel-support-rigid-casters-T0702

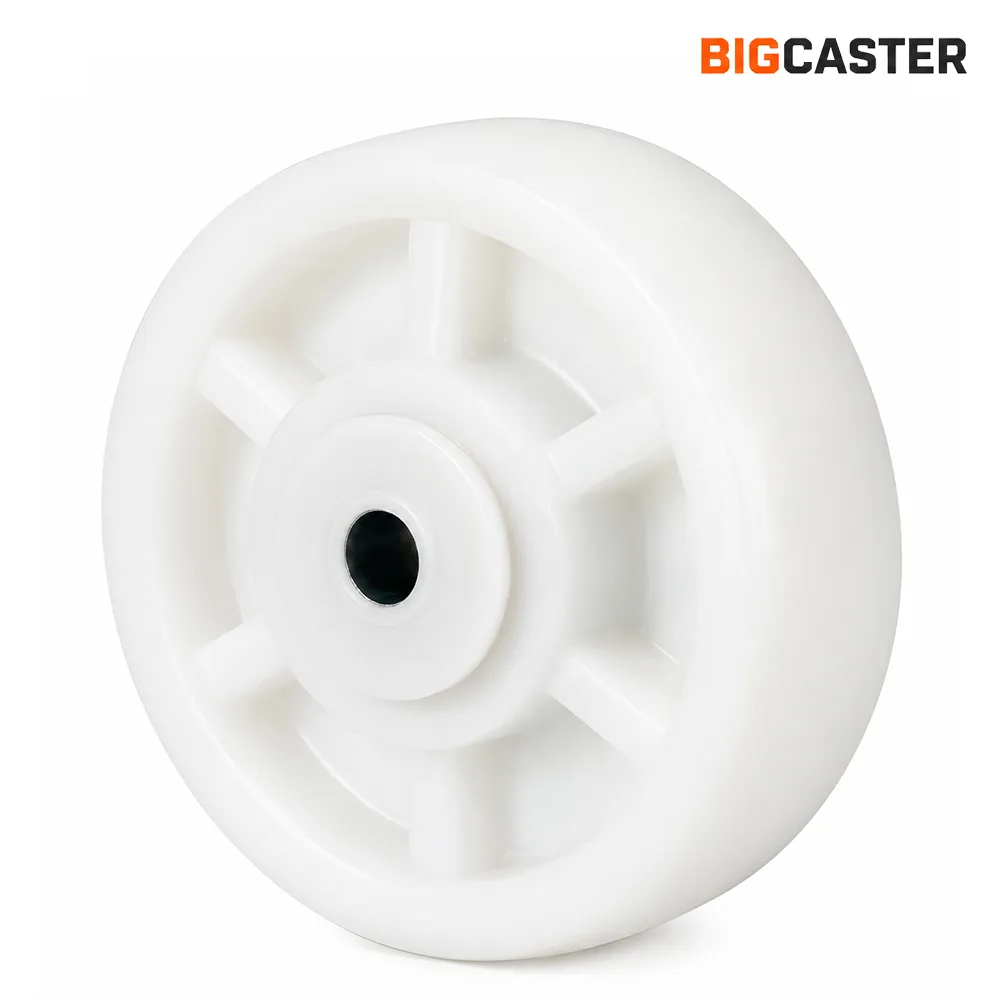

Heavy-duty-nylon-caster‘s-wheel-t0702
Heavy-duty-impact-resistant-caster-top-plate-dimension-drawing

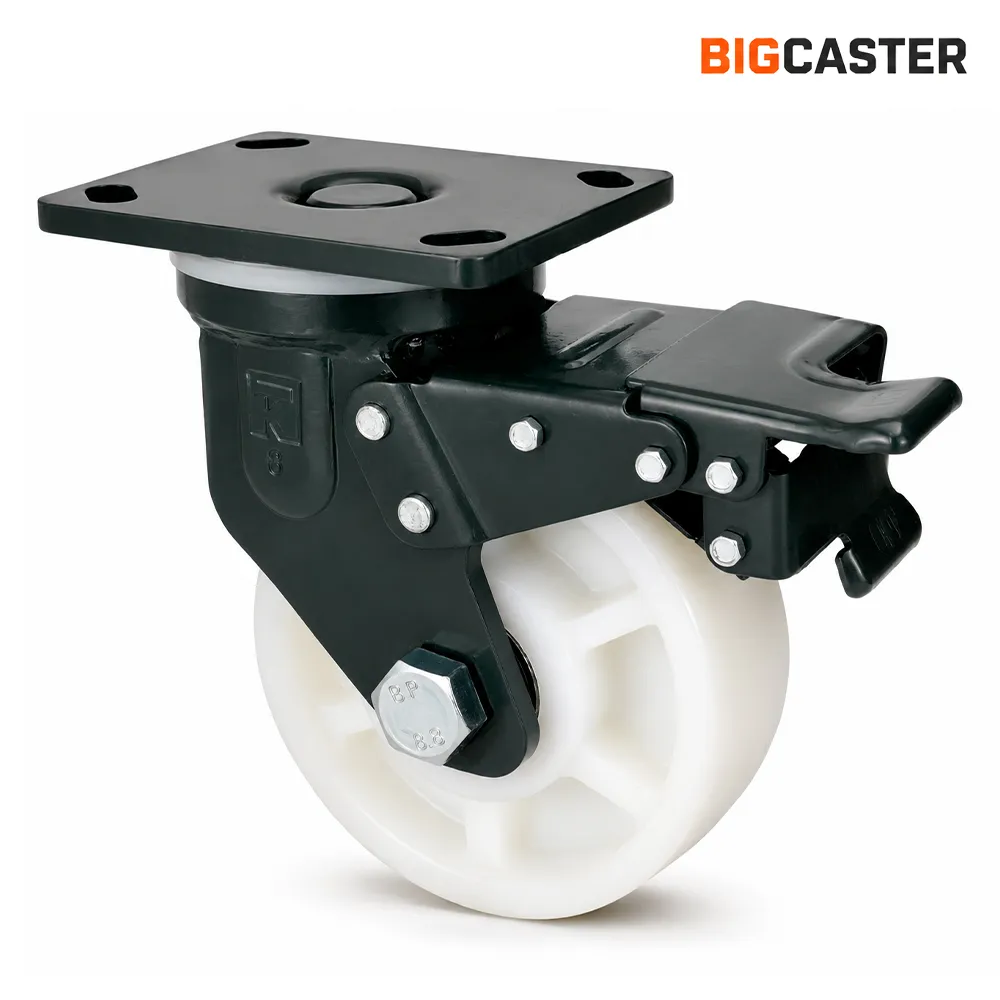

Heavy-Duty Manganese Steel Bracket Nylon Casters T0702

Load Capacity (lbs): 2600-4000 lbs
Load Capacity (kg): 1200-1800 kg
SKU: T0702 Series
Wheel Material: Nylon
Heavy-duty manganese steel support casters feature impact-resistant manganese steel supports and wear-resistant pure nylon wheels. With strong load capacity, the manganese steel support boasts excellent impact resistance and resistance to metal fatigue, making it suitable for high-load mobile applications. Customizable to higher load capacities and mounting plate sizes.
Get a Quick Quote
Customize Needs

Casters Data Sheet:

Size Diameter (mm) Wheel Width (mm) Load (KG) Bearing Height (mm) Rotation Radius (mm) Plate Size (mm) Hole Space (mm) Aperture (mm)
4'' 100 52 1200 6303*2 154 83 140*110 110*75 22*13
5'' 125 52 1400 6303*2 180 102 140*110 110*75 22*13
6'' 150 52 1600 6304*2 202 119 140*110 110*75 22*13
8'' 200 52 1800 6304*2 252 149 140*110 110*75 22*13
