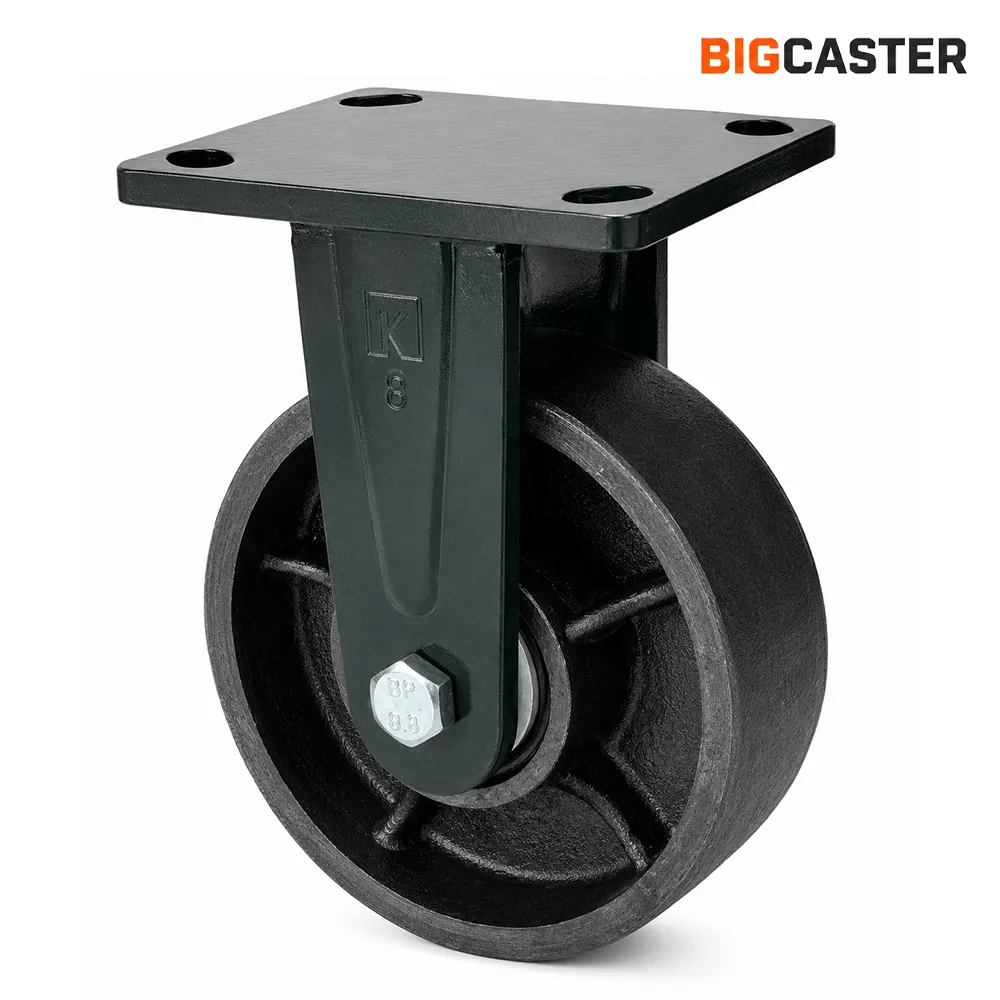

Heavy-duty-manganese-steel-bracket-milling-rigid-caster-t0701

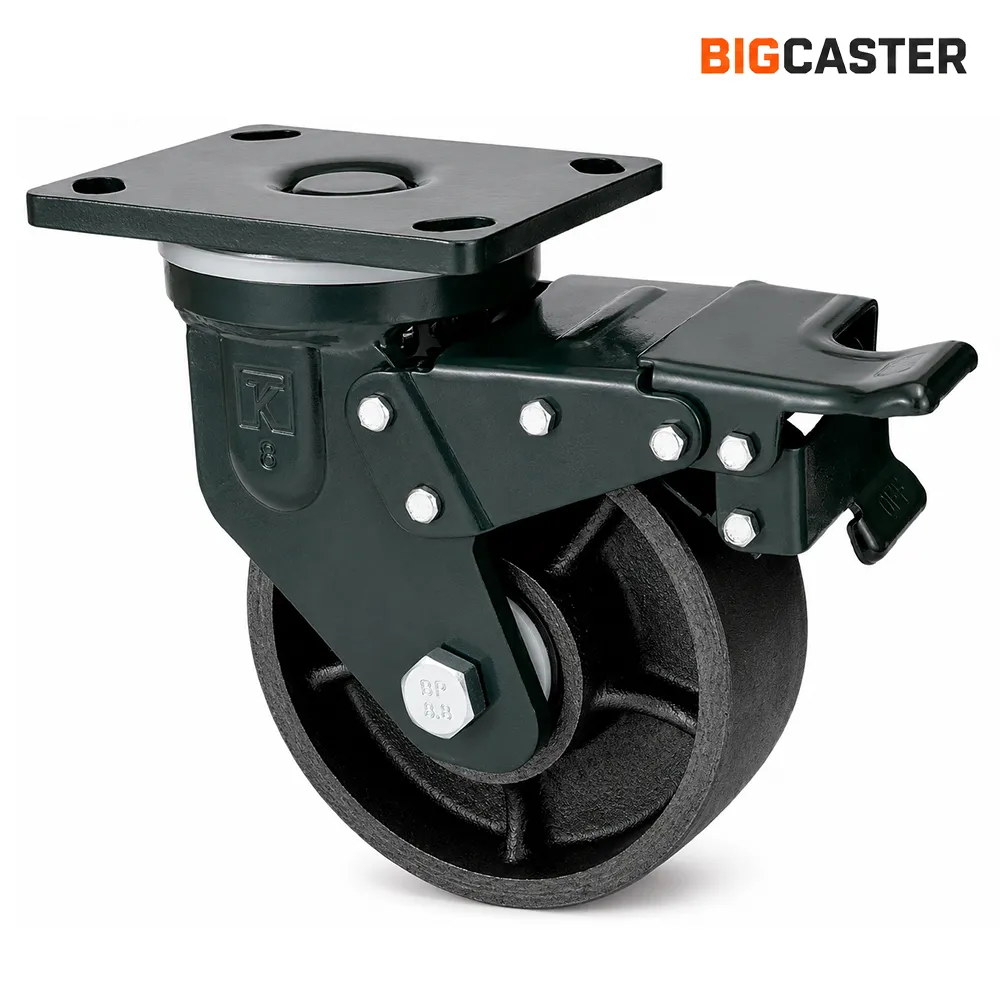

Heavy-duty-manganese-steel-bracket-milling-brake-caster-t0701

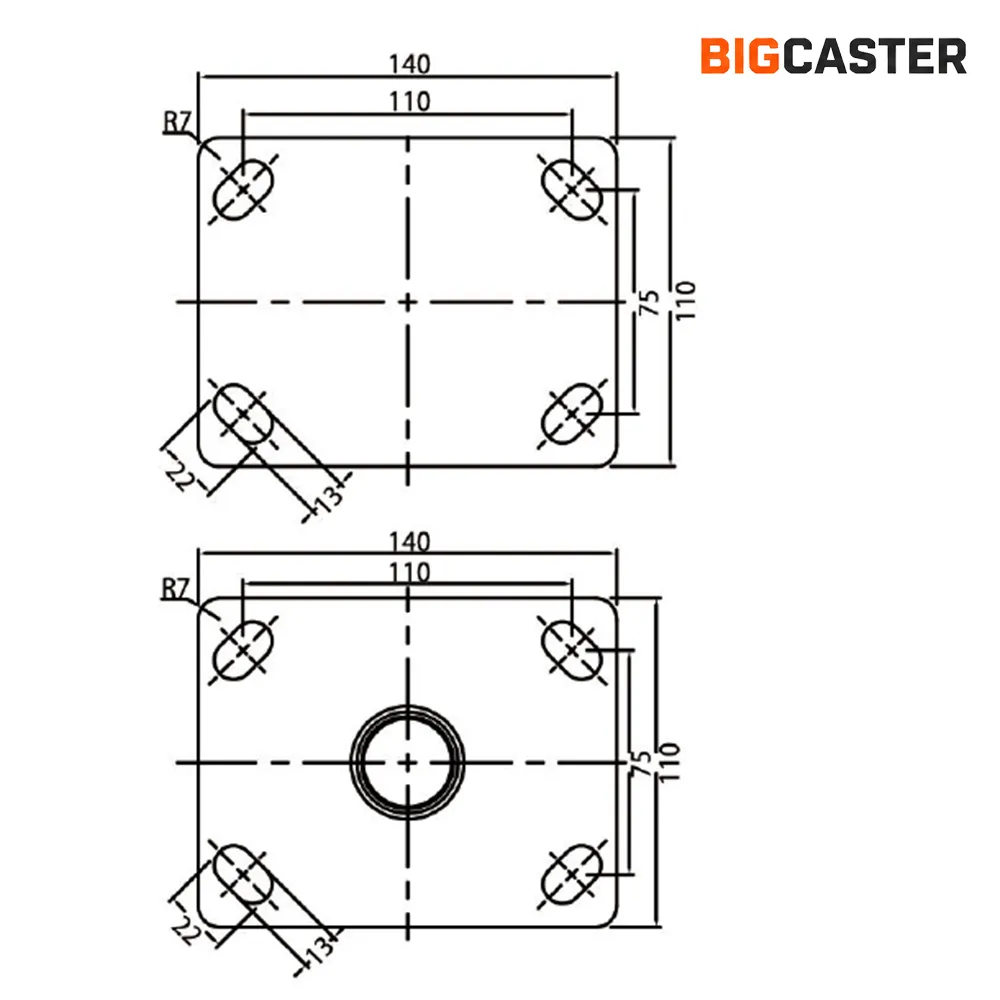

Heavy-duty-impact-resistant-caster-top-plate-dimension-drawing

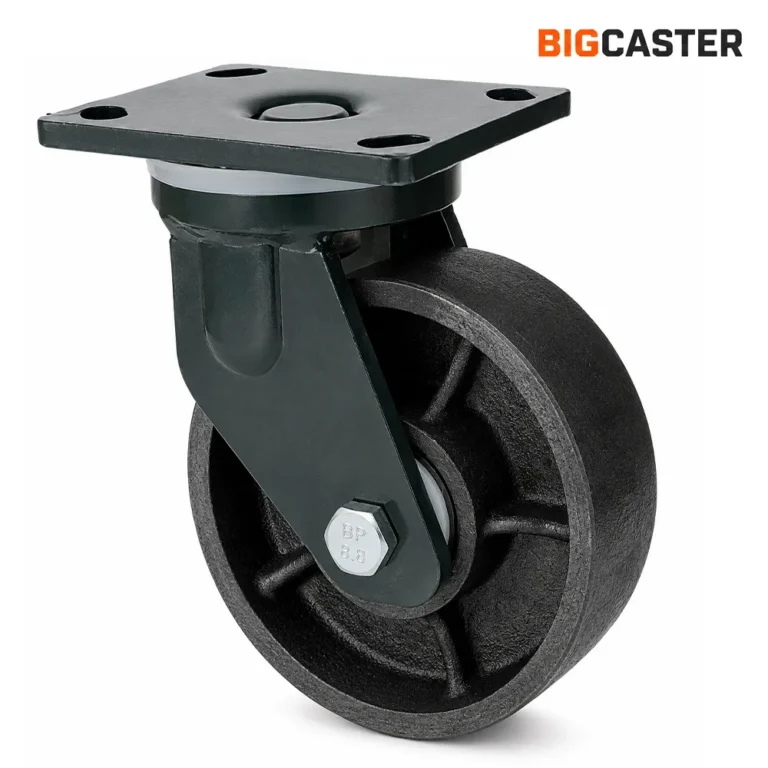

Extra Heavy-Duty Manganese Steel Bracket Milling Caster T0701

Load Capacity (lbs): 2600-4000 lbs

Load Capacity (kg): 1200-1800 kg

SKU: T0701 Series

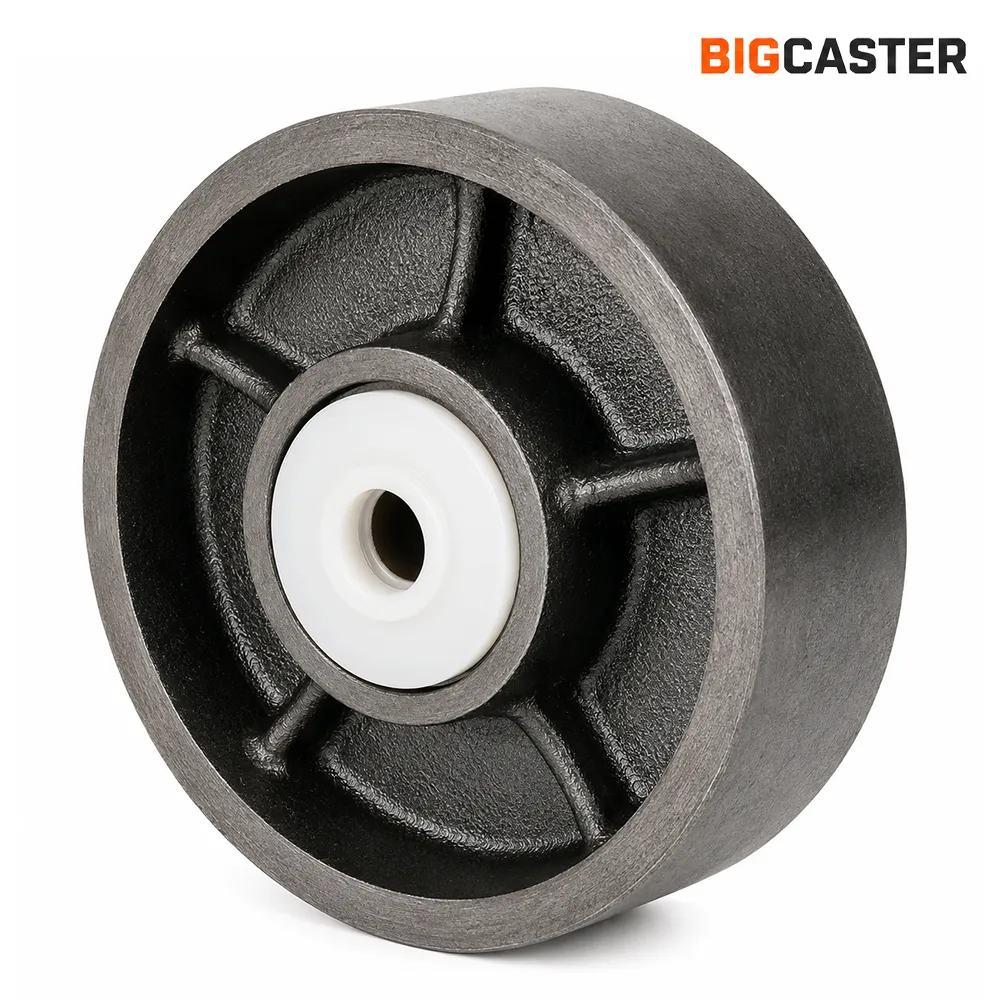

Wheel Material: Milled Iron

Heavy-duty manganese steel support casters feature impact-resistant manganese steel supports and cast iron wheels equipped with double ball bearings. With high load capacity and high-temperature resistance, the manganese steel support boasts excellent impact resistance and resistance to metal fatigue, making it suitable for harsh environments such as high-temperature applications. Customizable to higher load capacities and mounting plate sizes are available.

Casters Data Sheet:

Size	Diameter (mm)	Wheel Width (mm)	Load (KG)	Bearing	Height (mm)	Rotation Radius (mm)	Plate Size (mm)	Hole Space (mm)	Aperture (mm)
4''	100	52	1200	6303*2	154	83	140*110	110*75	22*13
5''	125	52	1400	6303*2	180	102	140*110	110*75	22*13
6''	150	52	1600	6304*2	202	119	140*110	110*75	22*13
8''	200	52	1800	6304*2	252	149	140*110	110*75	22*13
