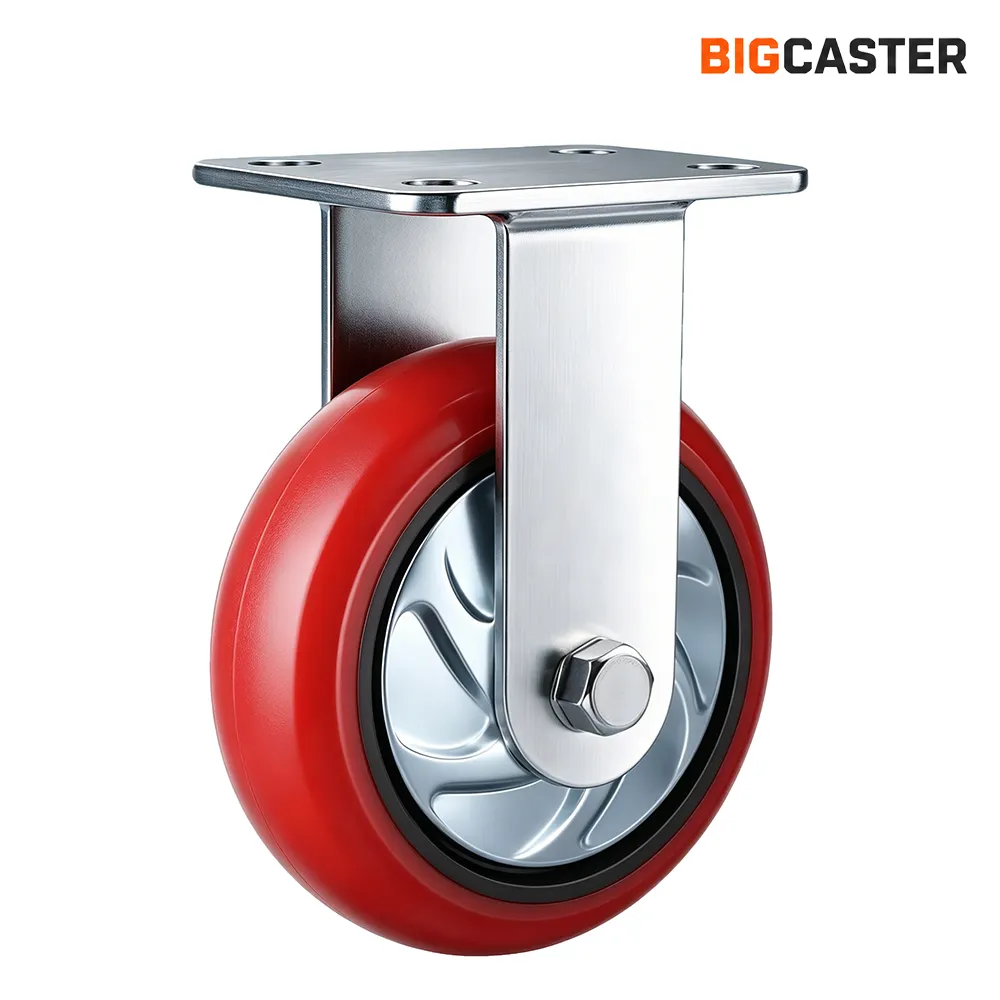

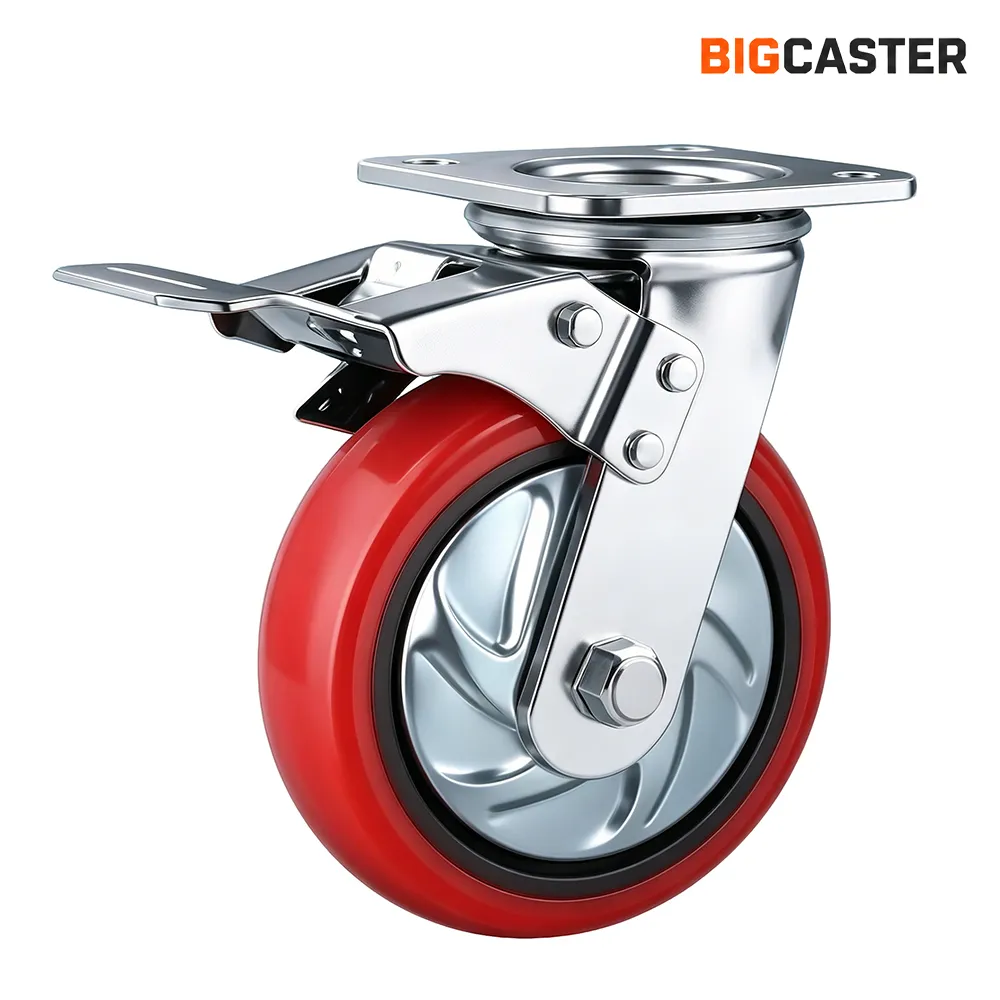

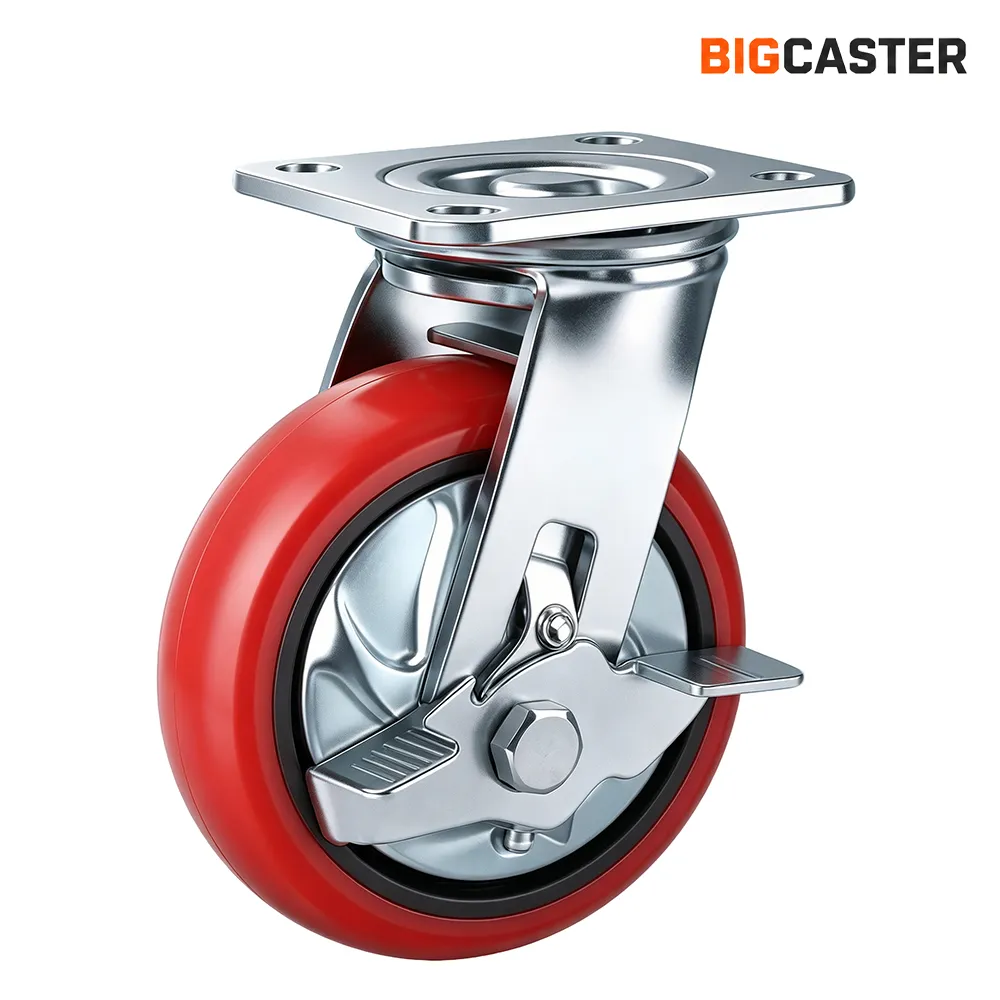

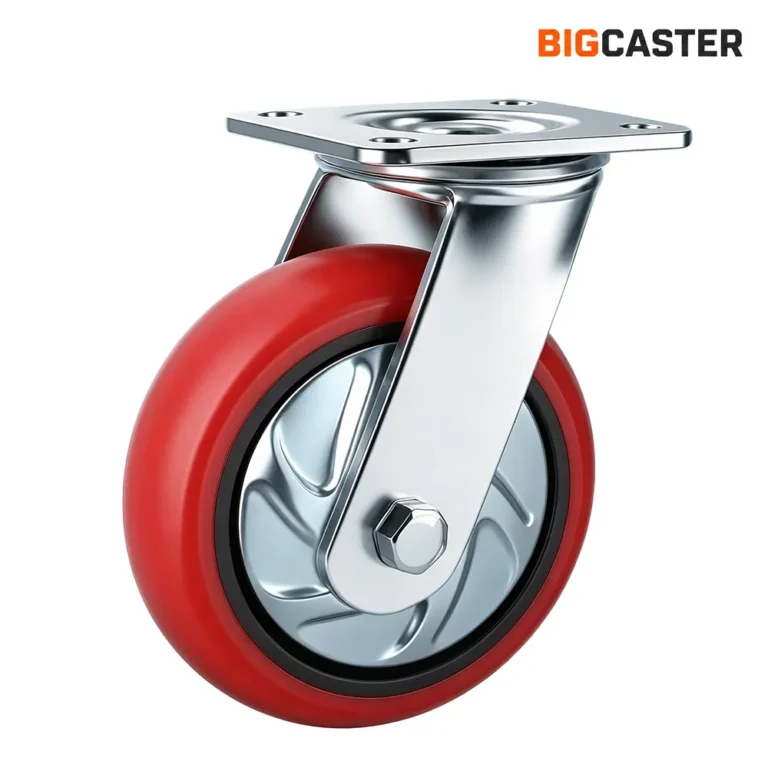

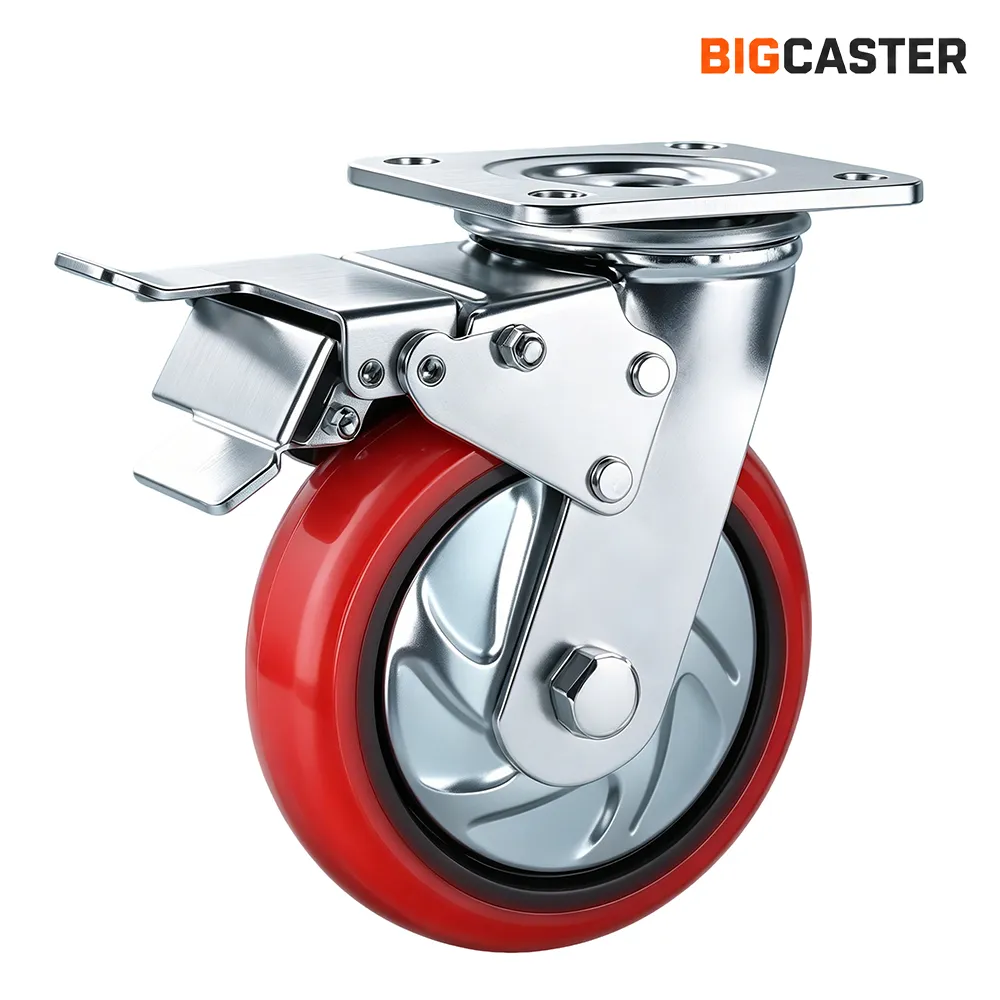

Korean Style Iron Core Heavy Duty Polyurethane Casters G4211

Load Capacity (lbs): 650-1000 lbs
Load Capacity (kg): 290-450 kg
SKU: G4211 Series
Wheel Material: Polyurethane (iron core)

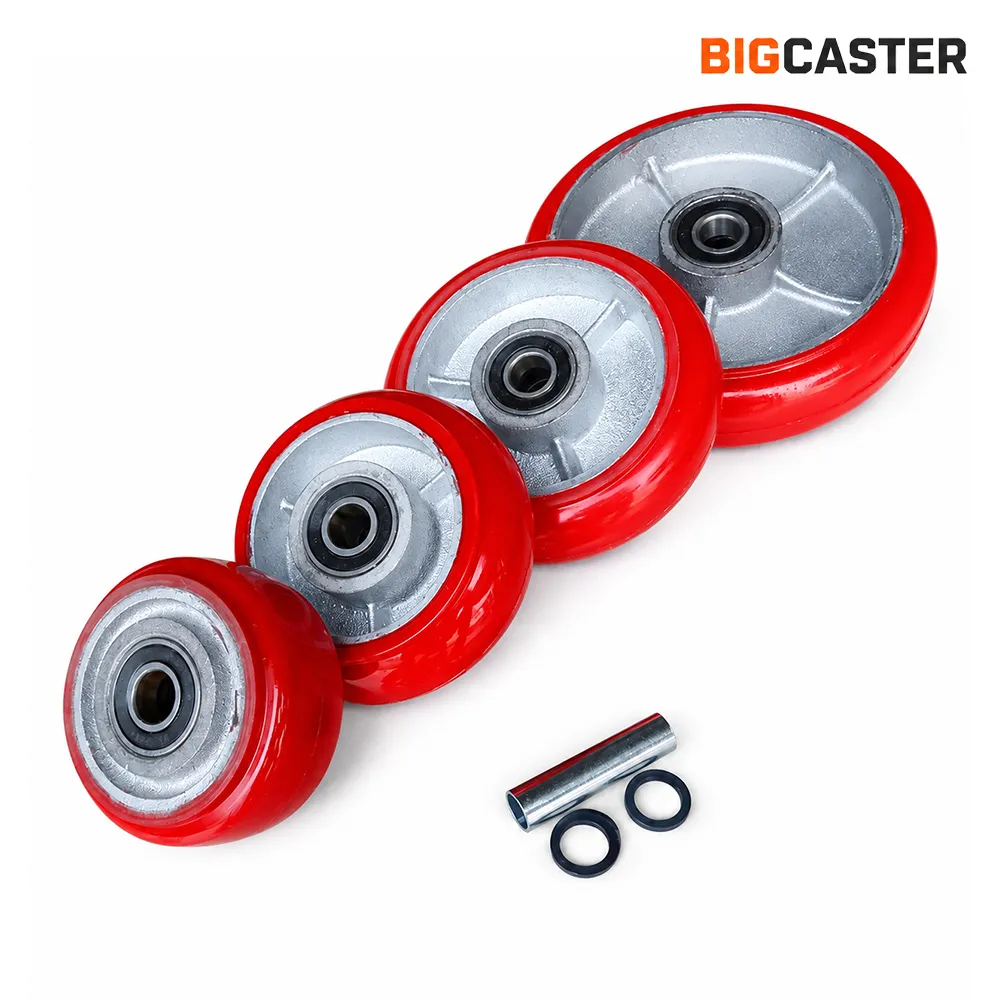

Korean-style heavy-duty Iron Core polyurethane casters, 6mm galvanized brackets, cast iron wheel cores with PU rims, equipped with two high-precision ball bearings, offering superior durability and impact resistance, widely used in industrial production. Rounded wheel edges allow for more flexible rotation. Top plate size, bracket material, and surface treatment are customizable.

Casters Data Sheet:

Size Diameter (mm) Wheel Width (mm) Load (KG) Bearing Height (mm) Rotation Radius (mm) Plate Size (mm) Hole Space (mm) Aperture (mm)
4'' 100 50 290 6203*2 143 83 115*100 84*72 11
5'' 125 50 360 6203*2 165 96 115*100 84*72 11
6'' 150 50 400 6203*2 190 113 115*100 84*72 11
8'' 200 50 450 6203*2 241 145 115*100 84*72 11

View Other Casters
