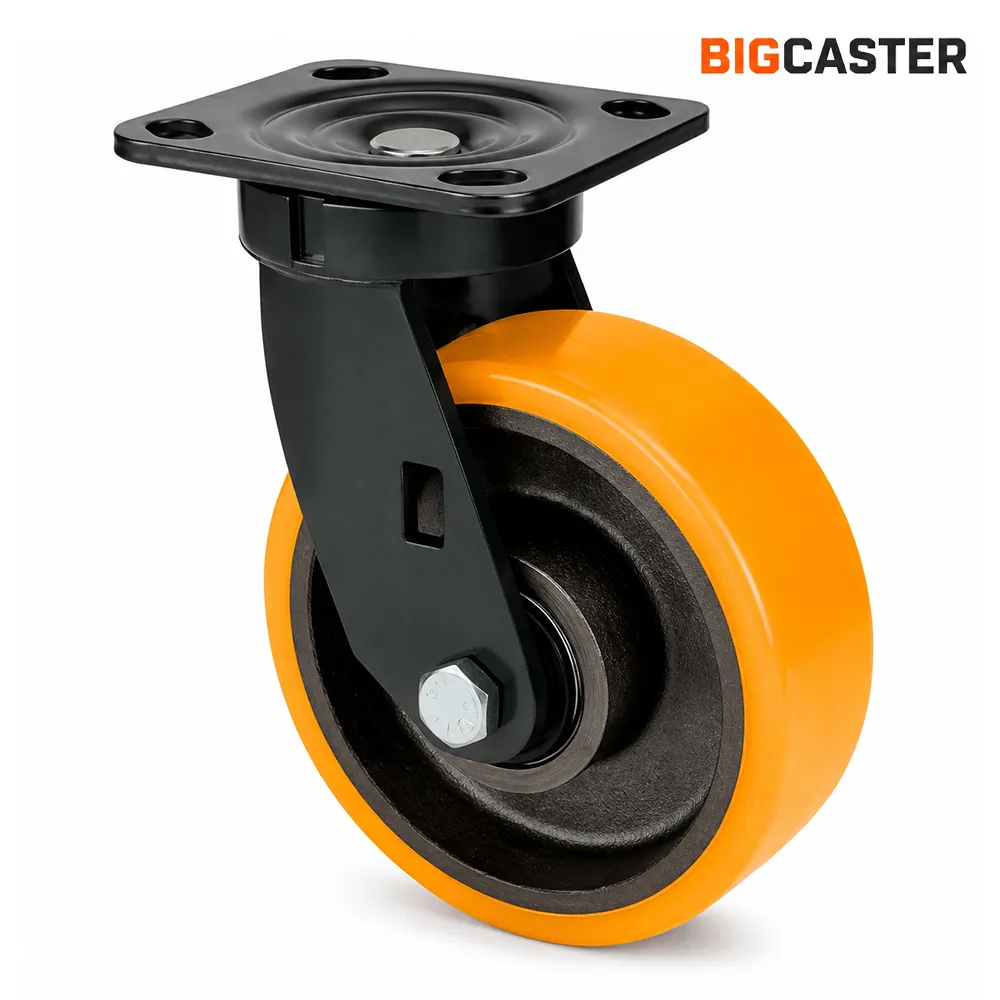

Heavy-duty-impact-resistant-polyurethane-swivel-casters-T0605

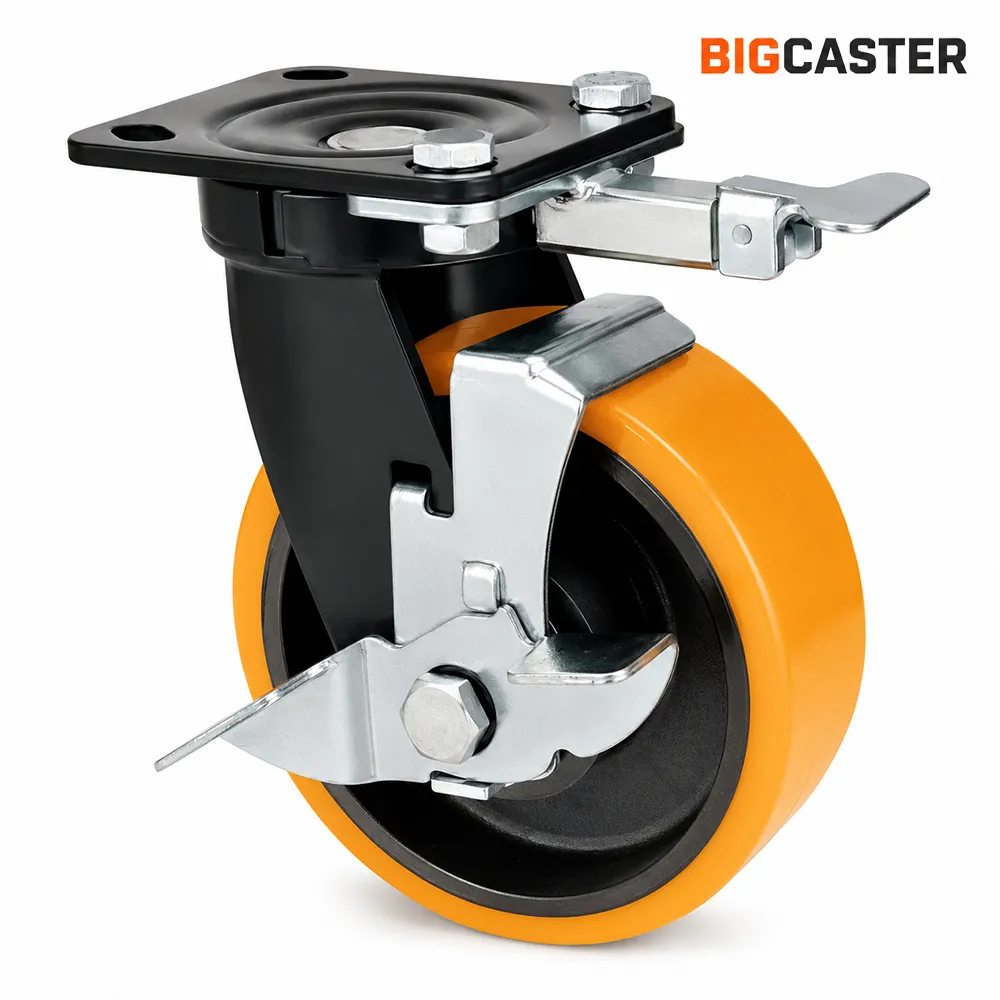

Heavy-duty-polyurethane-casters-with-steering-lock-and-side-lock-T0605

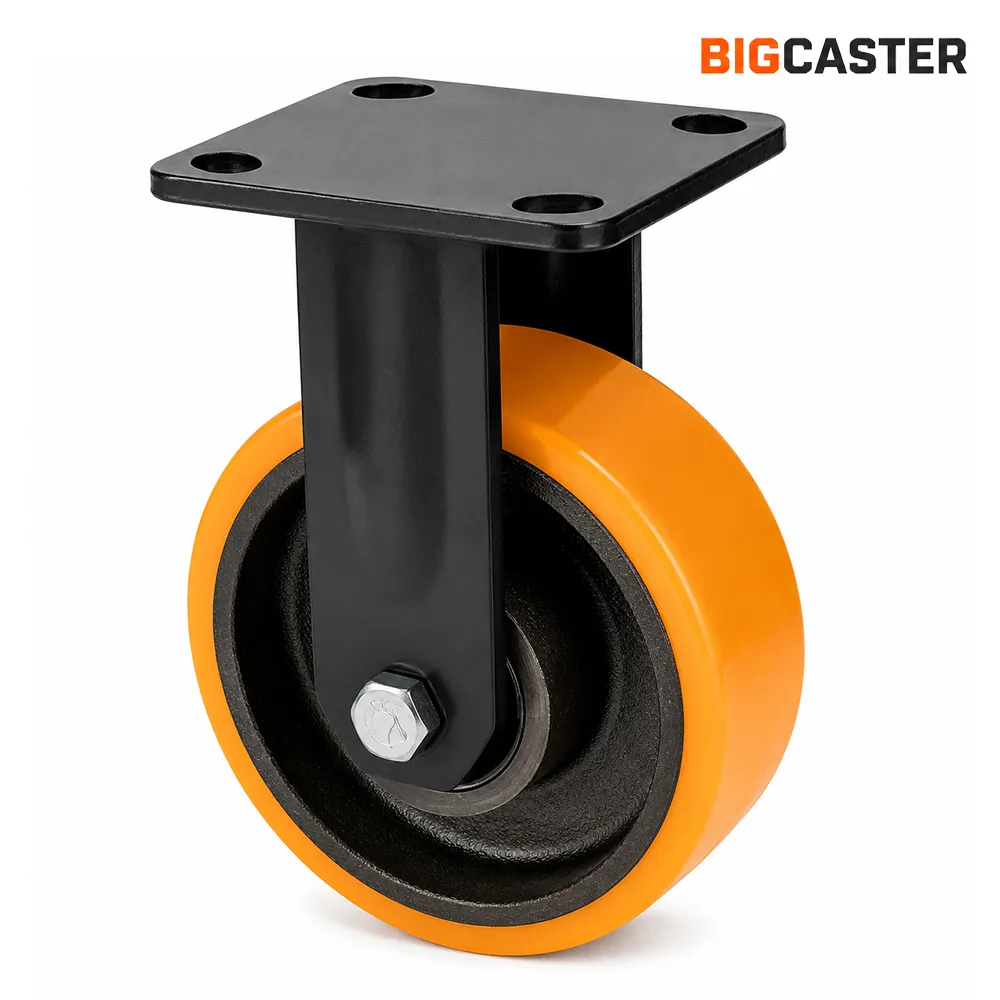

Heavy-duty-impact-resistant-polyurethane-rigid-casters-T0605

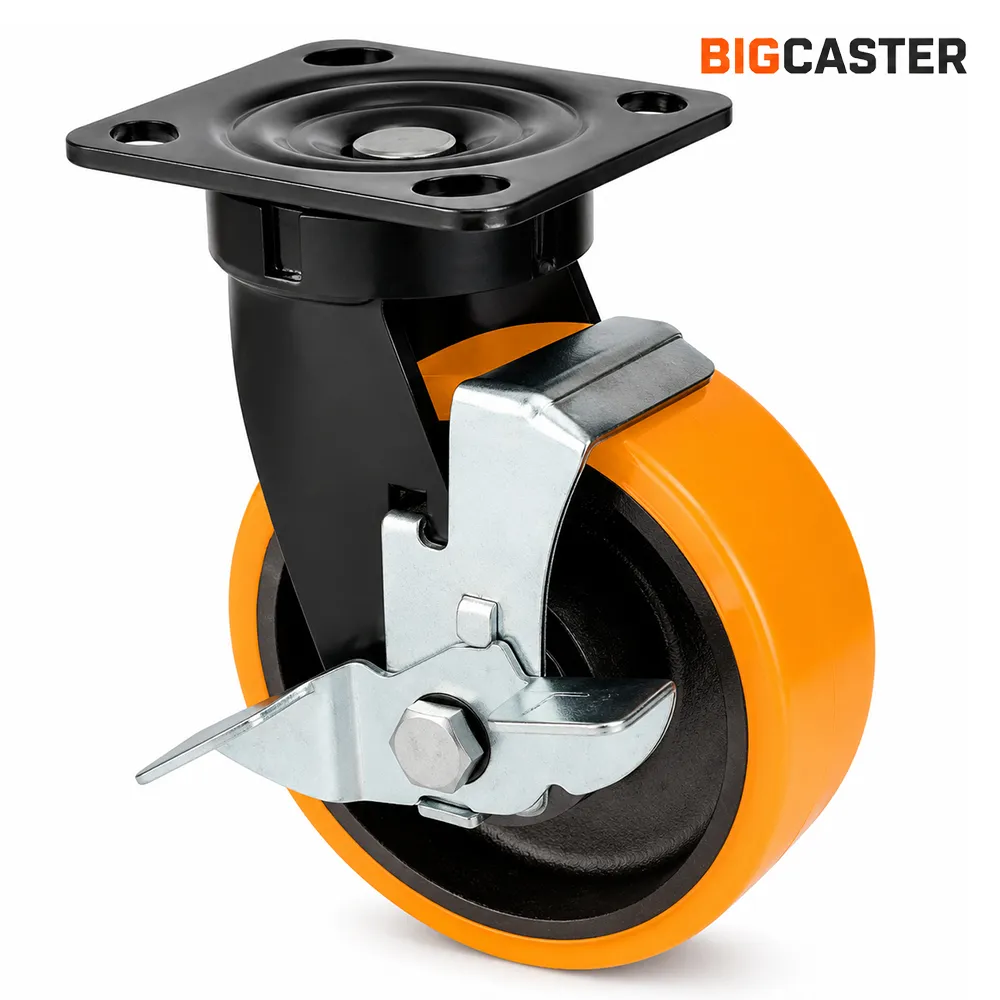

6-inch-heavy-duty-polyurethane-brake-casters-T0605

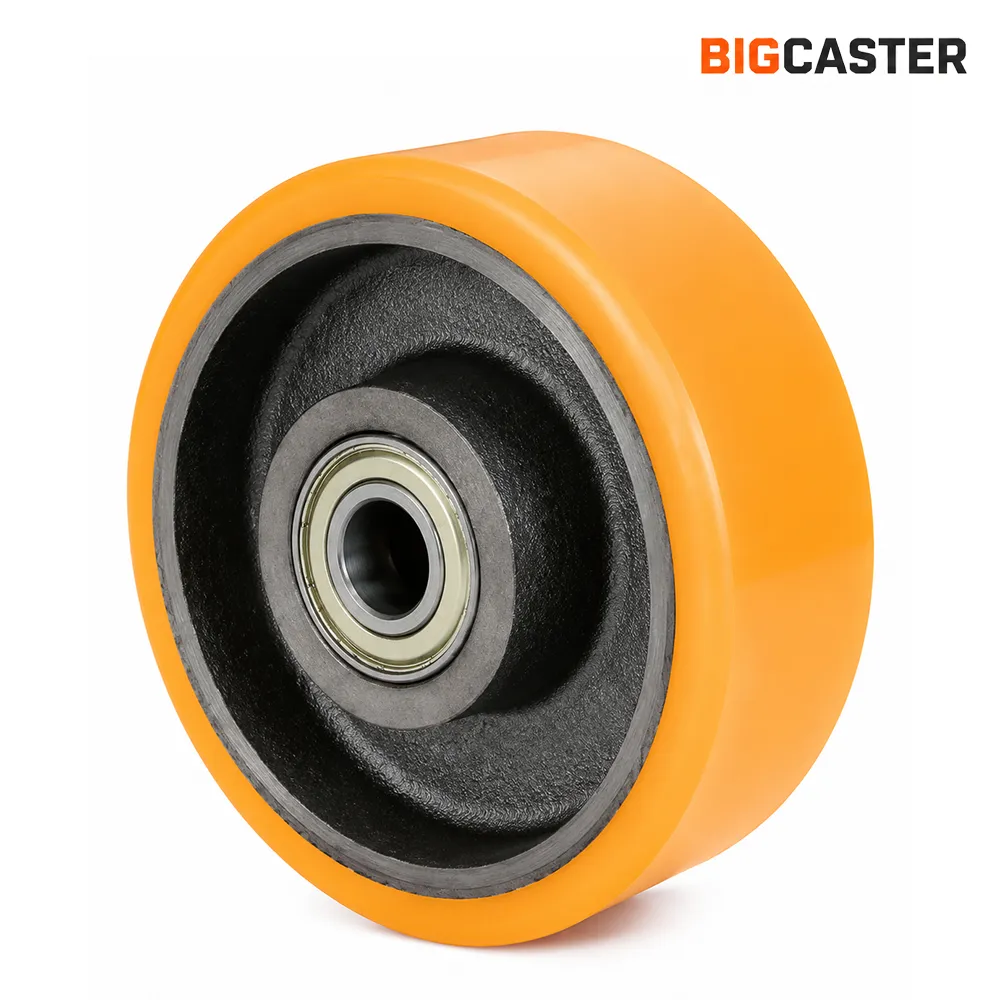

Heavy-duty-iron-core-polyurethane-caster-wheel-T0605

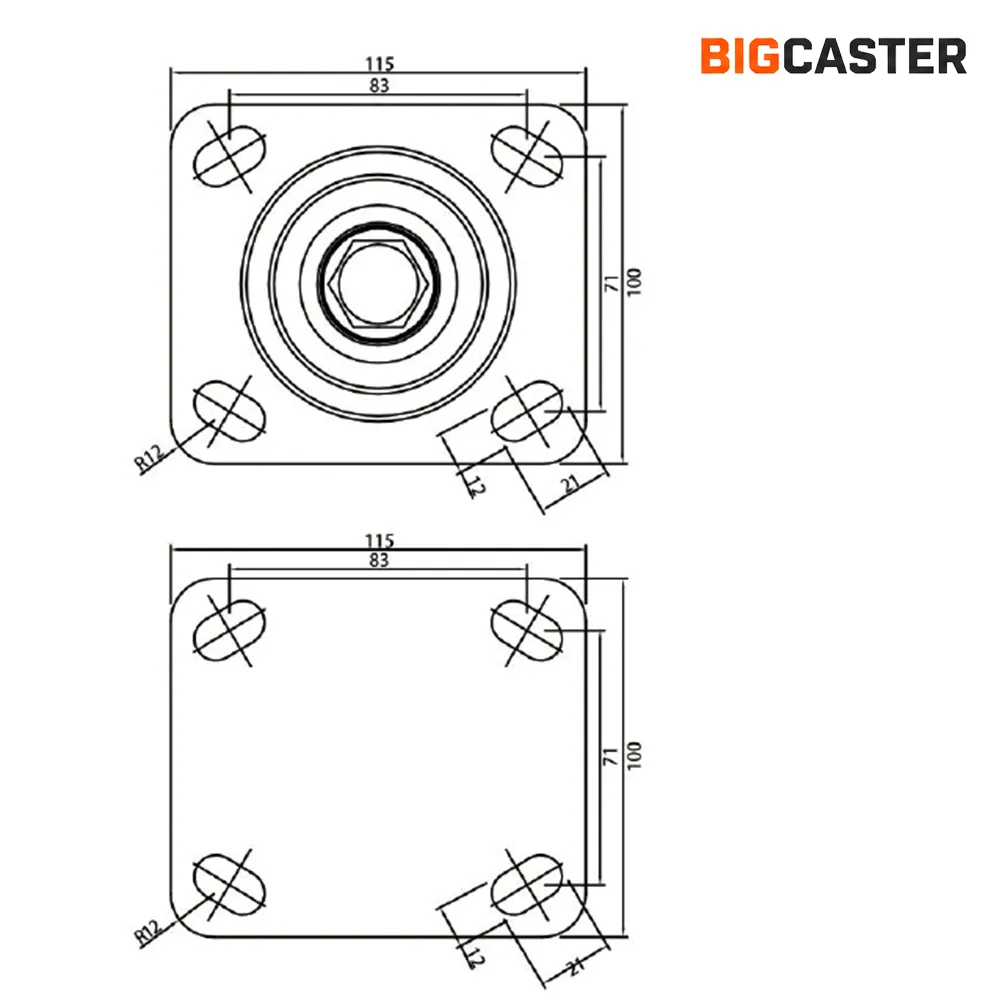

Caster-top-plate-mounting-dimensions-T0605

Heavy Duty Impact-Resistant Polyurethane Casters T0605

Load Capacity (lbs): 1200-2100 lbs

Load Capacity (kg): 550-950 kg

SKU: T0605 Series

Wheel Material: Polyurethane (iron core)

Heavy-duty polyurethane casters feature a thickened, impact-resistant bracket, and the wheels are made of an iron core and highly wear-resistant polyurethane. Offer strong load-bearing capacity, quiet operation, and floor protection. They are available in various types and can be customized with directional locks and brakes. Customizable to higher load capacities and ceiling plate mounting sizes.

Casters Data Sheet:

Size	Diameter (mm)	Wheel Width (mm)	Load (KG)	Bearing	Height (mm)	Rotation Radius (mm)	Plate Size (mm)	Hole Space (mm)	Aperture (mm)
4''	100	50	550	6303*2	153	77	115*100	84*72	12*21
5''	125	50	650	6303*2	175	93	115*100	84*72	12*21
6''	150	50	850	6303*2	202	114	115*100	84*72	12*21
8''	200	50	950	6303*2	250	143	115*100	84*72	12*21
