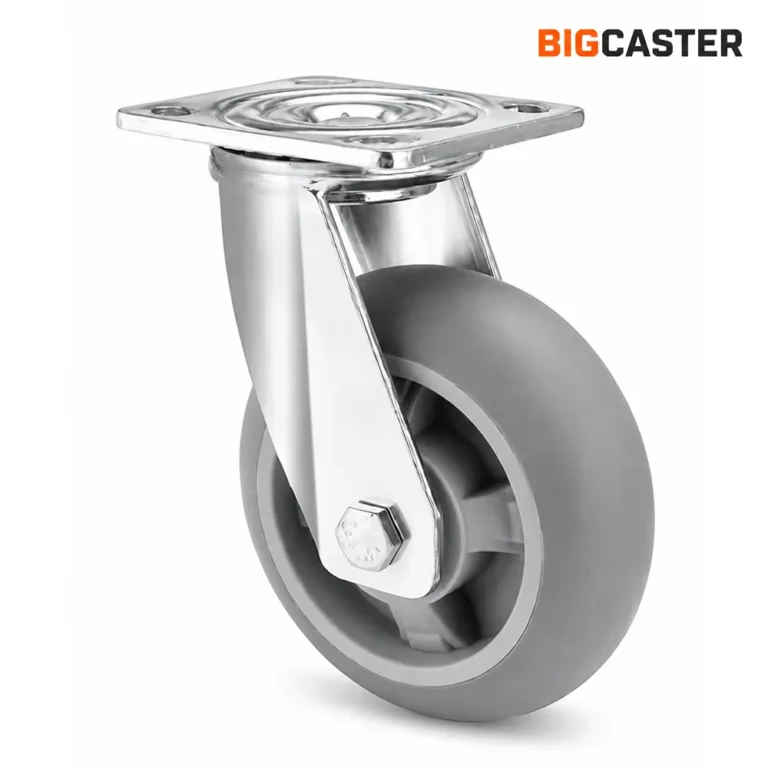

6-inch-TPR-Swivel-Caster-wheel-M0160

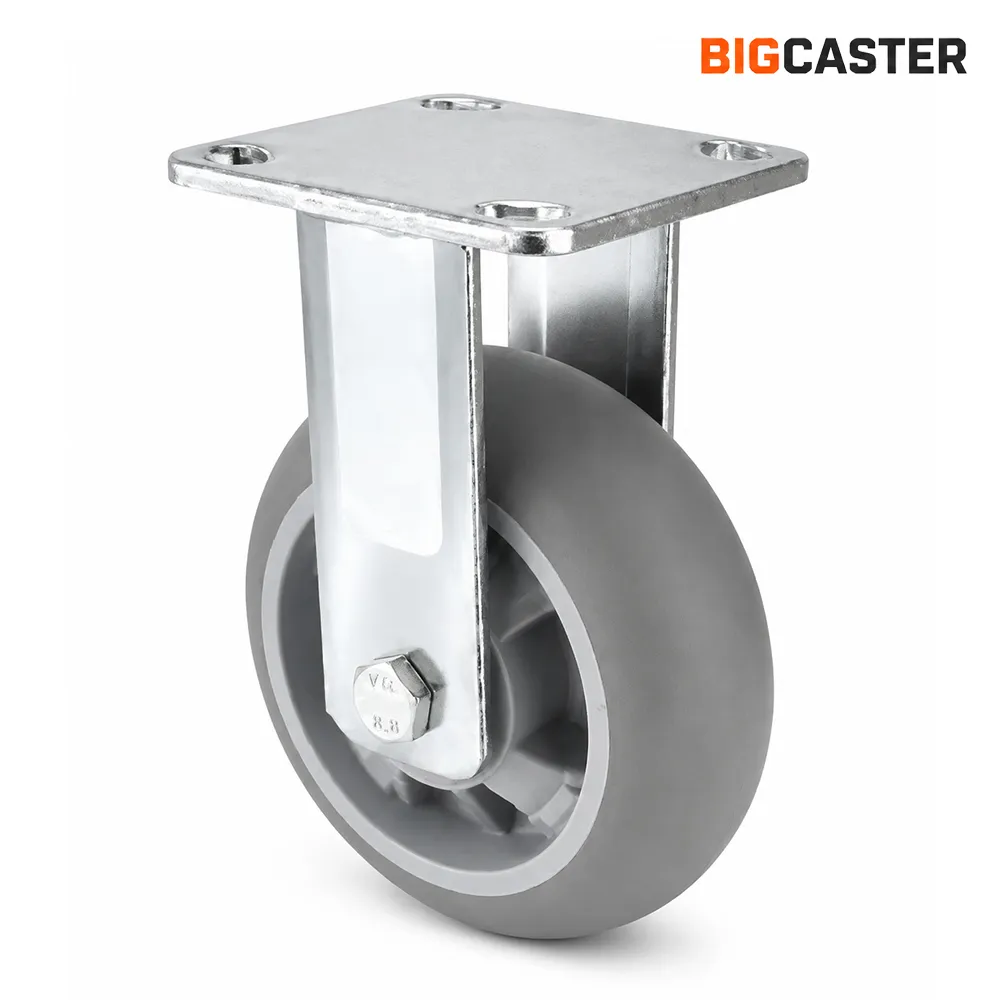

6-inch-TPR-Rigid-Caster-wheel-M0160

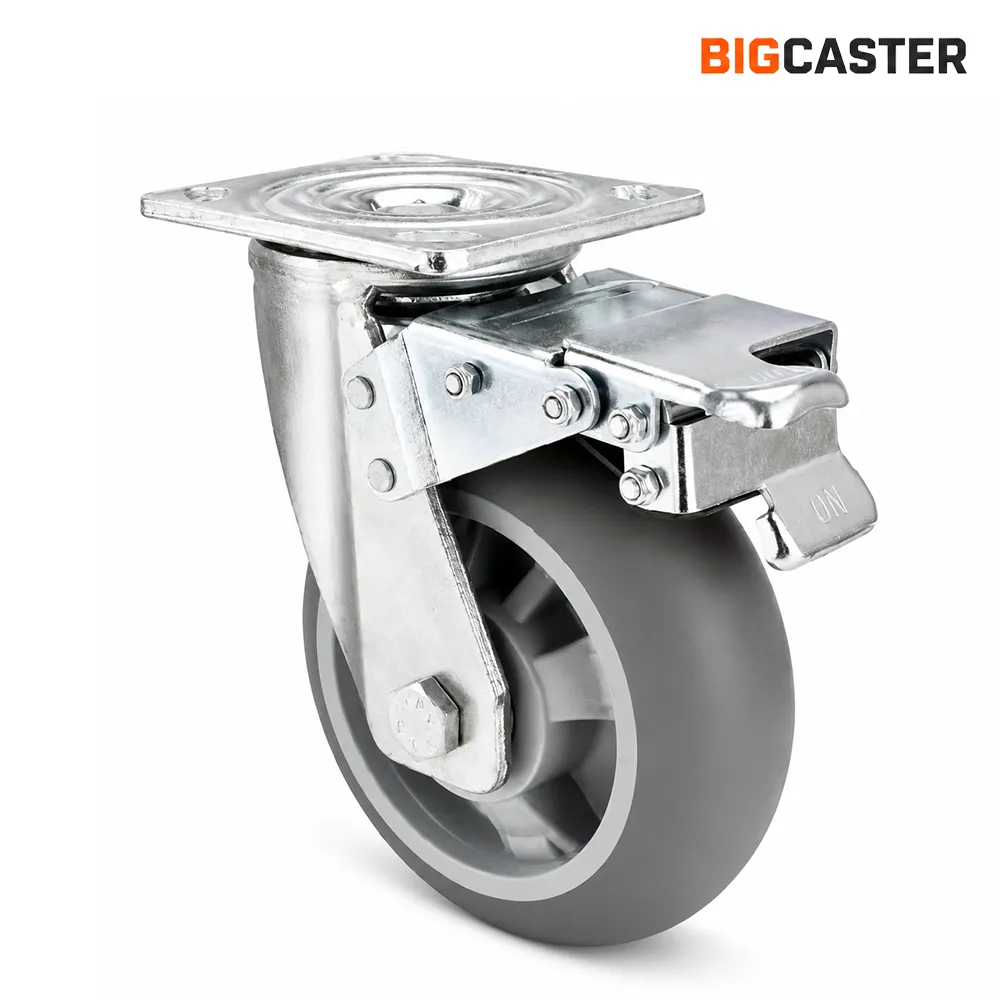

5-inch-TPR-brake-Caster-wheel-M0160

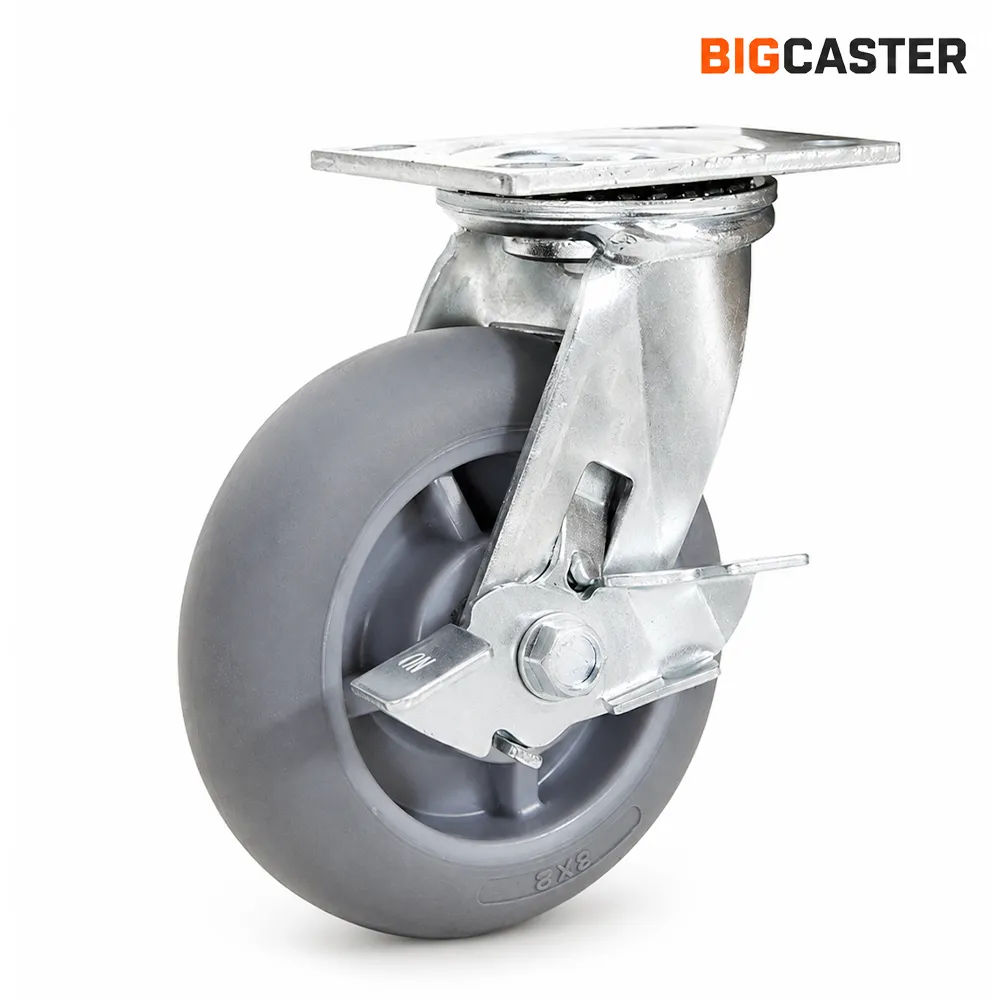

6-inch-TPR-Side-brake-Caster-wheel-M0160
Caster top plate installation dimensions

Heavy Duty TPR Caster Wheel M0160

Load Capacity (lbs): 450-650 lbs
Load Capacity (kg): 200-300 kg
SKU: M0160 Series
Wheel Material: Thermo-Plastic-Rubber caster
Heavy-duty Thermo-Plastic-Rubber caster. Wheels are made of high-elasticity synthetic rubber, environmentally friendly and wear-resistant. The PP wheel core features dual silent ball bearings for excellent noise reduction and floor protection. Rounded wheel edges allow for flexible operation. Suitable for medical facilities or quiet environments. Top plate size is customizable, and the bracket material can be upgraded to stainless steel.
Get a Quick Quote
Customize Needs

Casters Data Sheet:

Size Diameter (mm) Wheel Width (mm) Load (KG) Bearing Height (mm) Rotation Radius (mm) Plate Size (mm) Hole Space (mm) Aperture (mm)
4'' 100 50 200 6202*2 143 83 115*100 84*72 11
5'' 125 50 220 6202*2 165 96 115*100 84*72 11
6'' 150 50 270 6202*2 190 113 115*100 84*72 11
8'' 200 50 300 6202*2 241 145 115*100 84*72 11
