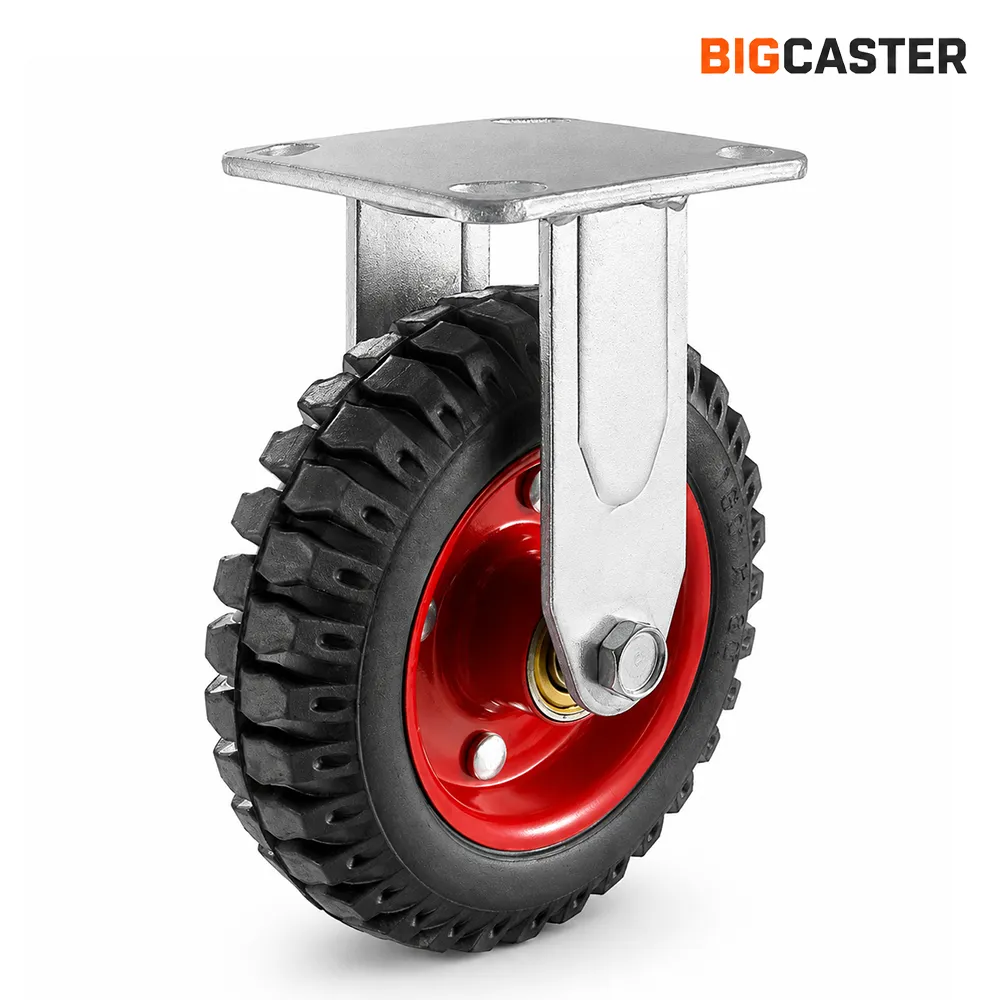

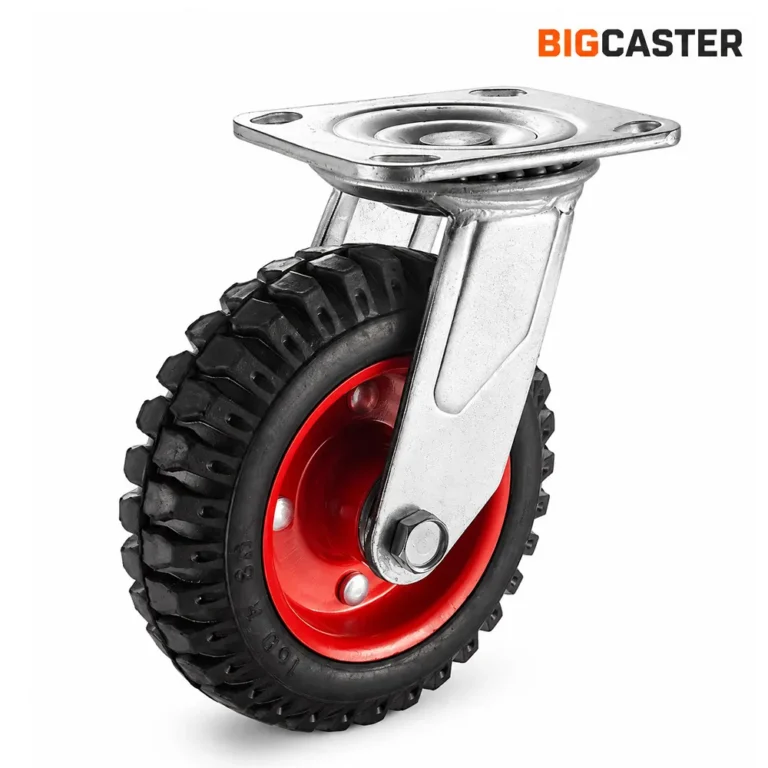

Heavy-Duty Solid Rubber Trolley Wheels G4404

Load Capacity (lbs): 300-600 lbs
Load Capacity (kg): 150-300 kg
SKU: G4404 Series
Wheel Material: Solid Rubber (Steel Core)

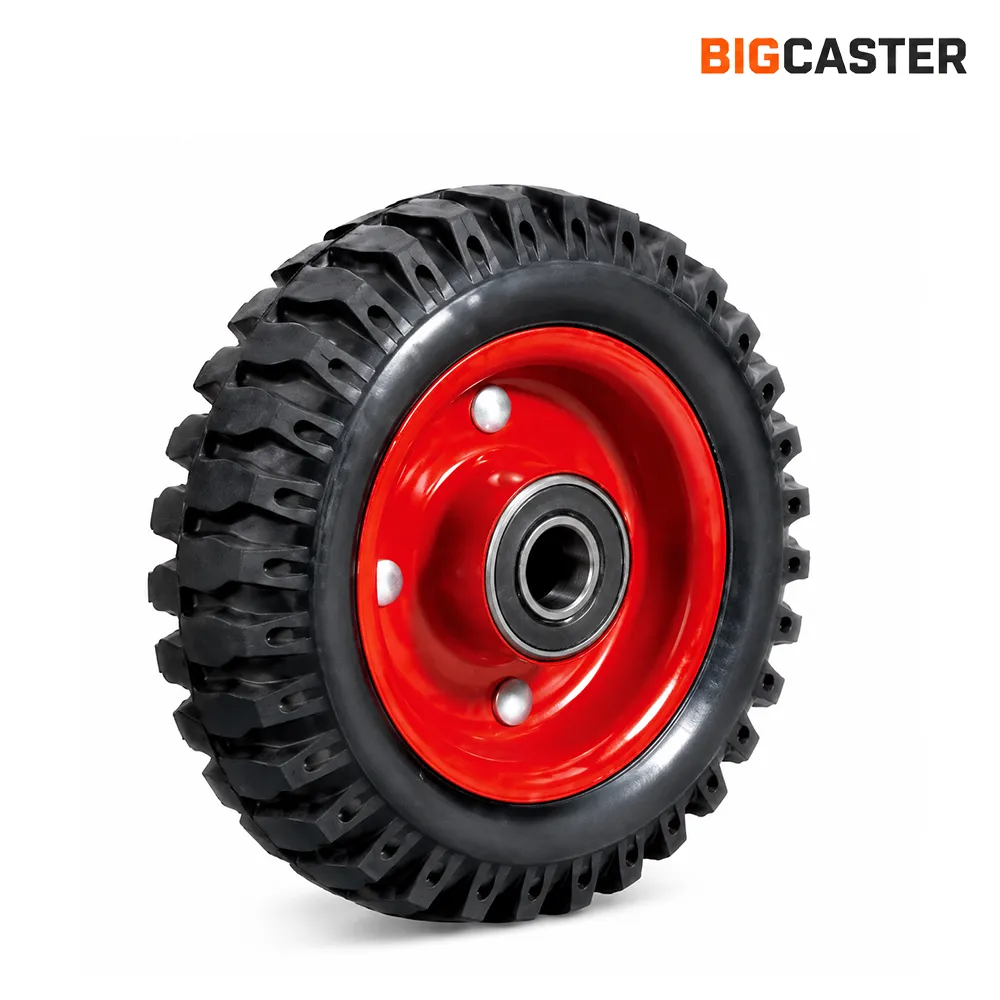

Heavy-duty solid rubber trolley casters, made of wear-resistant, high-elasticity rubber. The wheel core is made of steel and equipped with double ball bearings, effectively increasing the load capacity of the casters. The tread pattern increases the friction between the casters and the ground, maintaining good traction even on wet or slippery surfaces, making them ideal for use on trolleys. Installation dimensions and load capacity can be customized to customer requirements.

Casters Data Sheet:

Size Diameter (mm) Wheel Width (mm) Load (KG) Bearing Height (mm) Rotation Radius (mm) Plate Size (mm) Hole Space (mm) Aperture (mm)
5'' 125 50 150 6202*2 156 96 110*96 80*70 10
6'' 150 50 200 6203*2 178 100 110*96 80*70 10
8'' 200 50 250 6203*2 234 143 110*96 80*70 10
