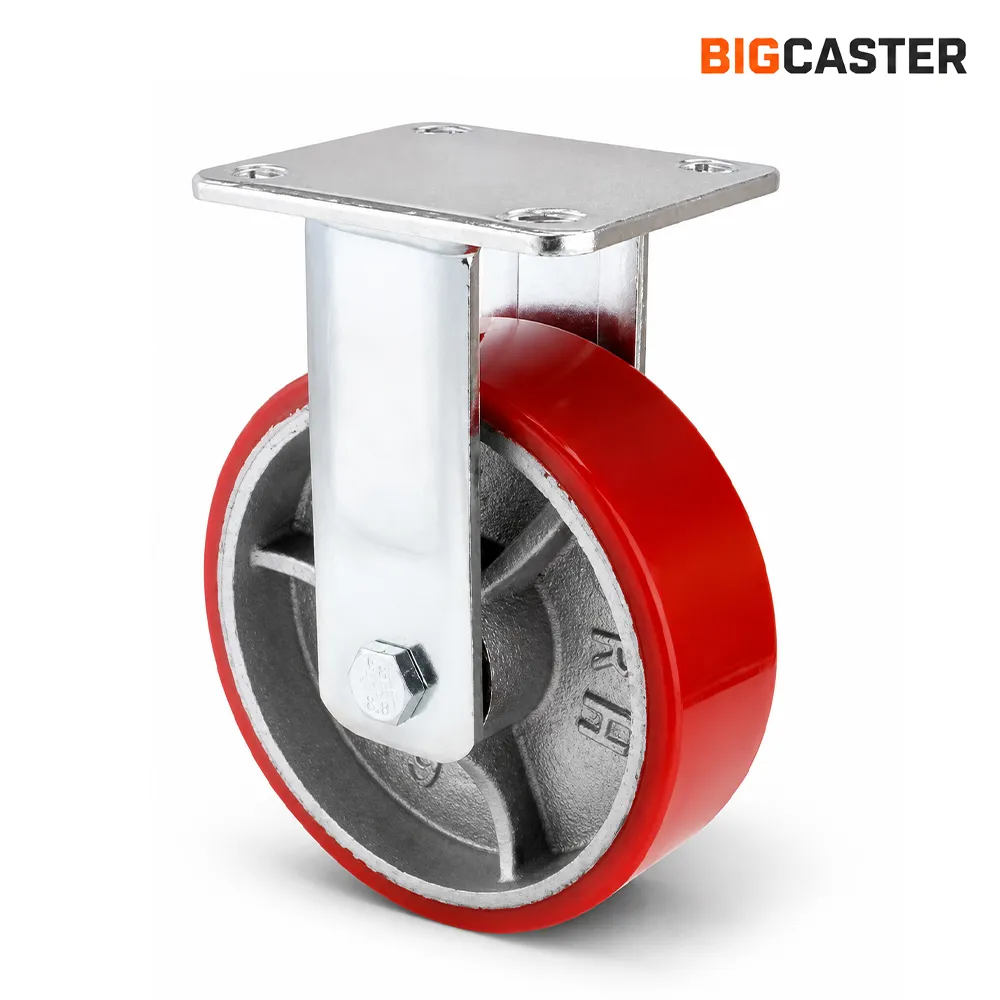

6-inch-heavy-duty-polyurethane-rigid-caster-wheel-G420

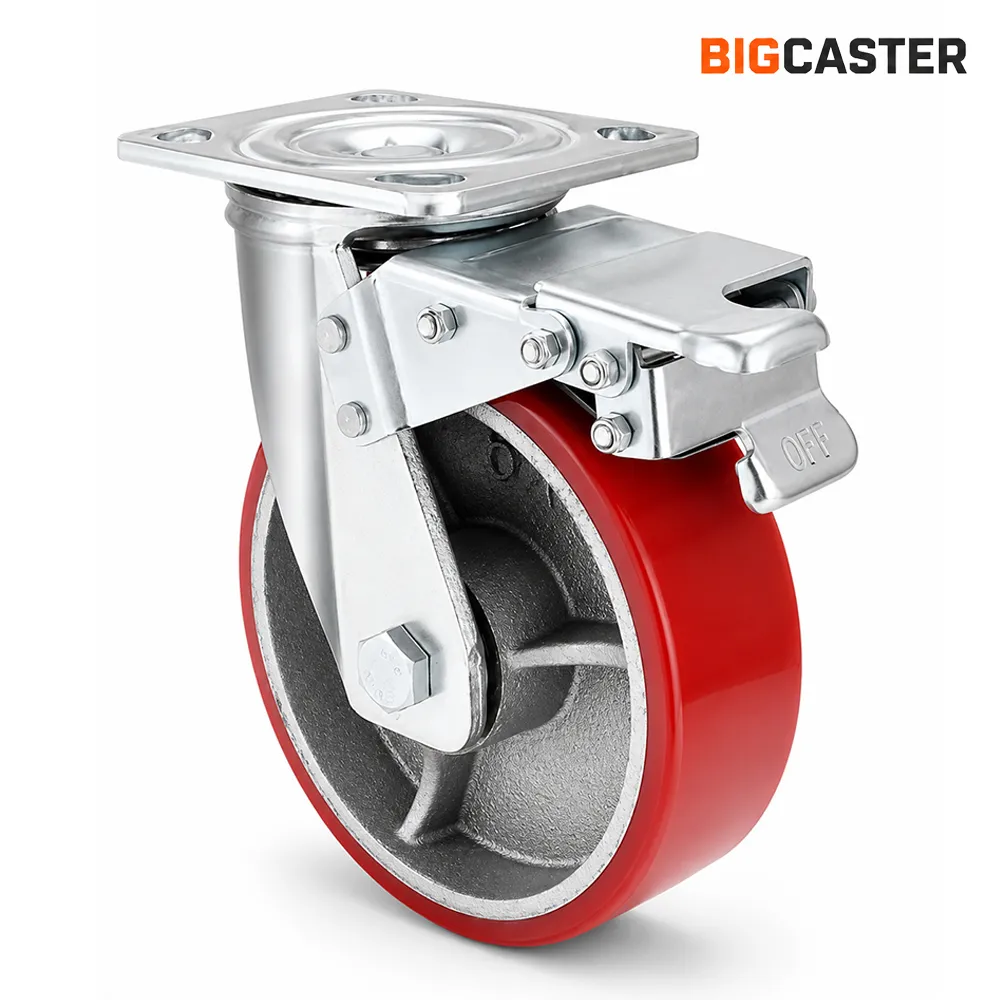

5-inch-heavy-duty-polyurethane-ab-brake-caster-wheel-G420
5-inch-heavy-duty-polyurethane-side-brake-caster-wheel-G420

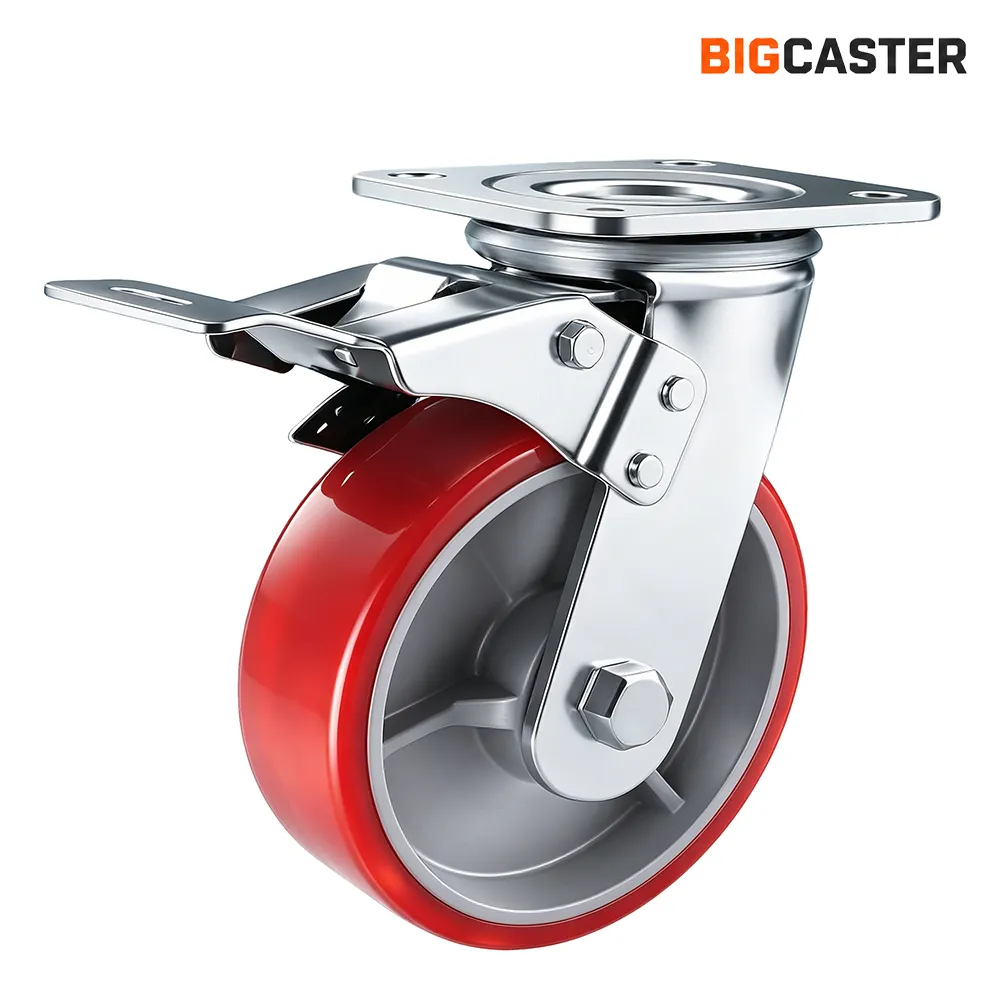

4-inch-heavy-duty-polyurethane-brake-caster-wheel-G420

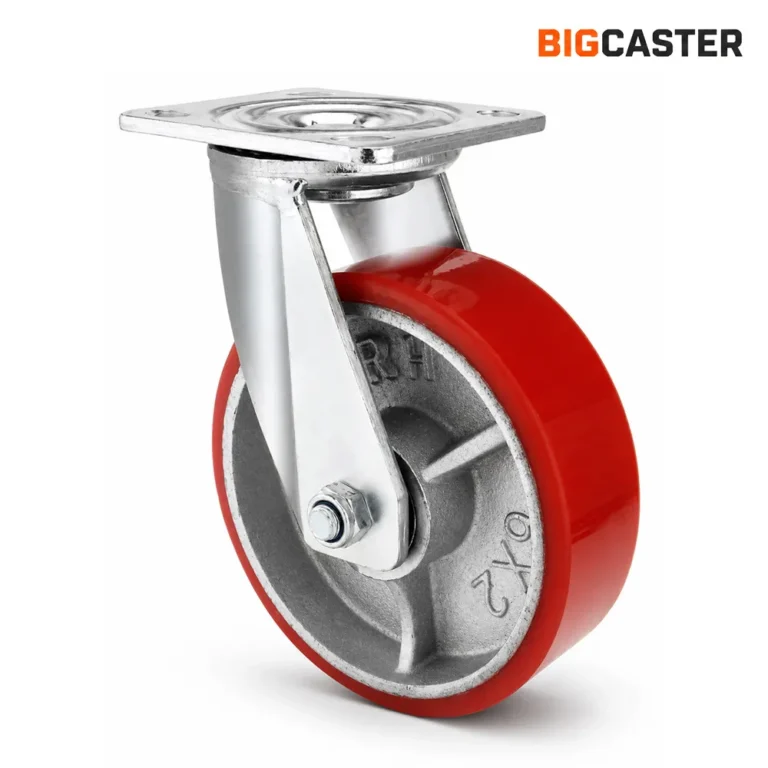

Heavy Duty Iron Core Polyurethane Caster G420

Load Capacity (lbs): 650-1000 lbs
Load Capacity (kg): 290-450 kg
SKU: G420 Series
Wheel Material: Polyurethane (iron core)
Heavy-duty Iron Core polyurethane casters, 6mm galvanized brackets, cast iron wheel cores with PU rims, equipped with high-precision ball bearings or heat-treated roller bearings, offering superior durability and impact resistance, widely used in industrial production. Top plate size, bracket material, and surface treatment are customizable.
Get a Quick Quote
Customize Needs

Casters Data Sheet:

Size Diameter (mm) Wheel Width (mm) Load (KG) Bearing Height (mm) Rotation Radius (mm) Plate Size (mm) Hole Space (mm) Aperture (mm)
4'' 100 50 290 6203*2 143 83 115*100 84*72 11
5'' 125 50 360 6203*2 165 96 115*100 84*72 11
6'' 150 50 400 6203*2 190 113 115*100 84*72 11
8'' 200 50 450 6203*2 241 145 115*100 84*72 11
