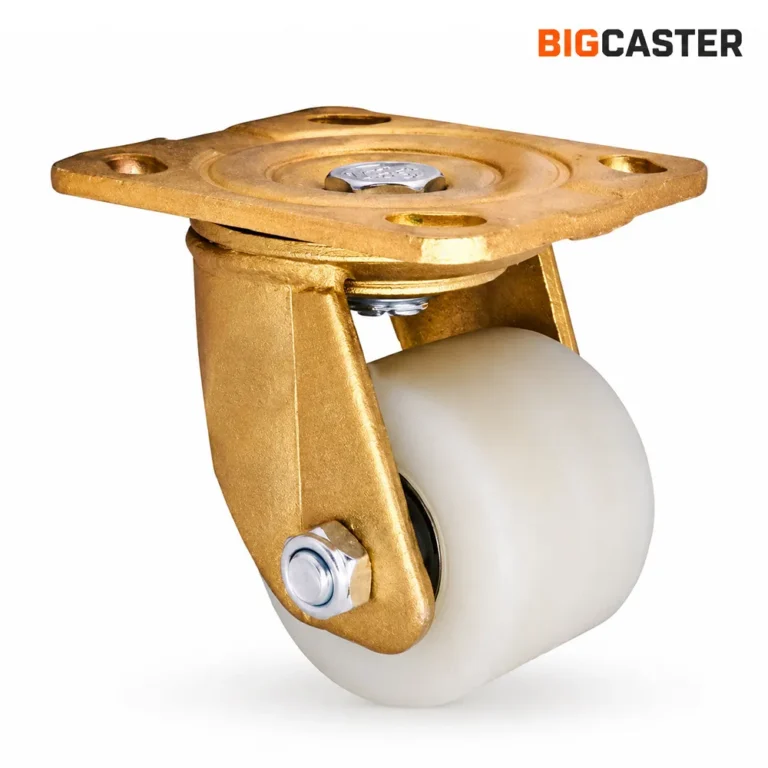

3-inch-low-profile-heavy-duty-nylon-swivel-caster

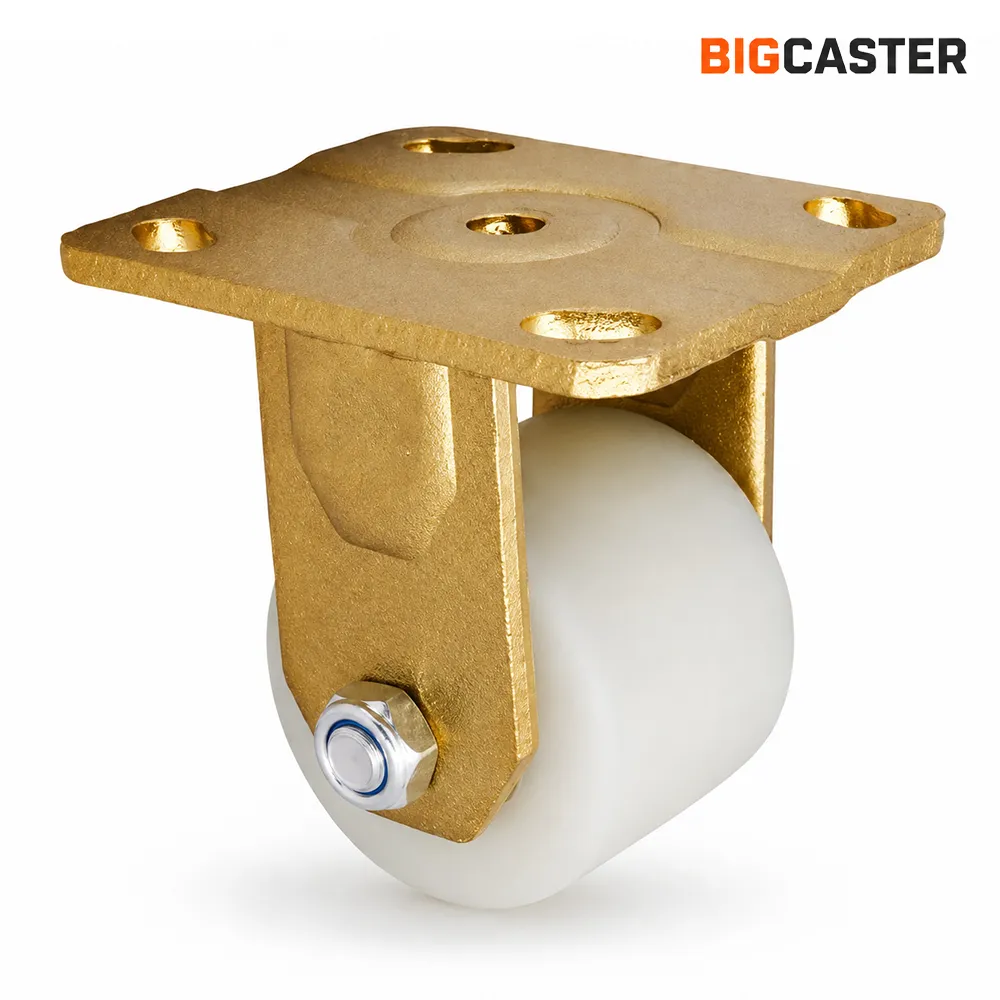

3-inch-low-profile-heavy-duty-nylon-rigid-caster

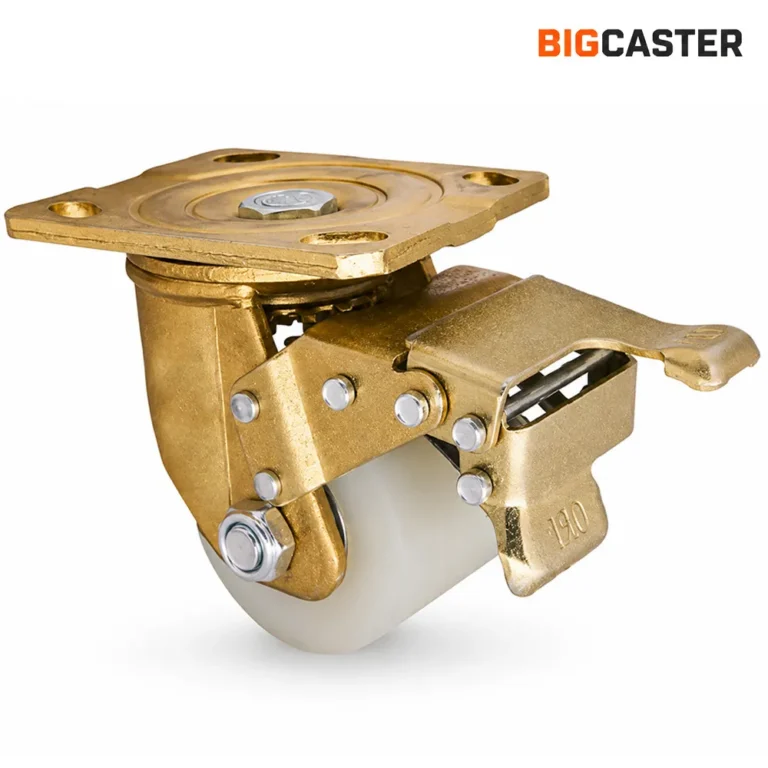

3-inch-low-profile-heavy-duty-nylon-brake-caster

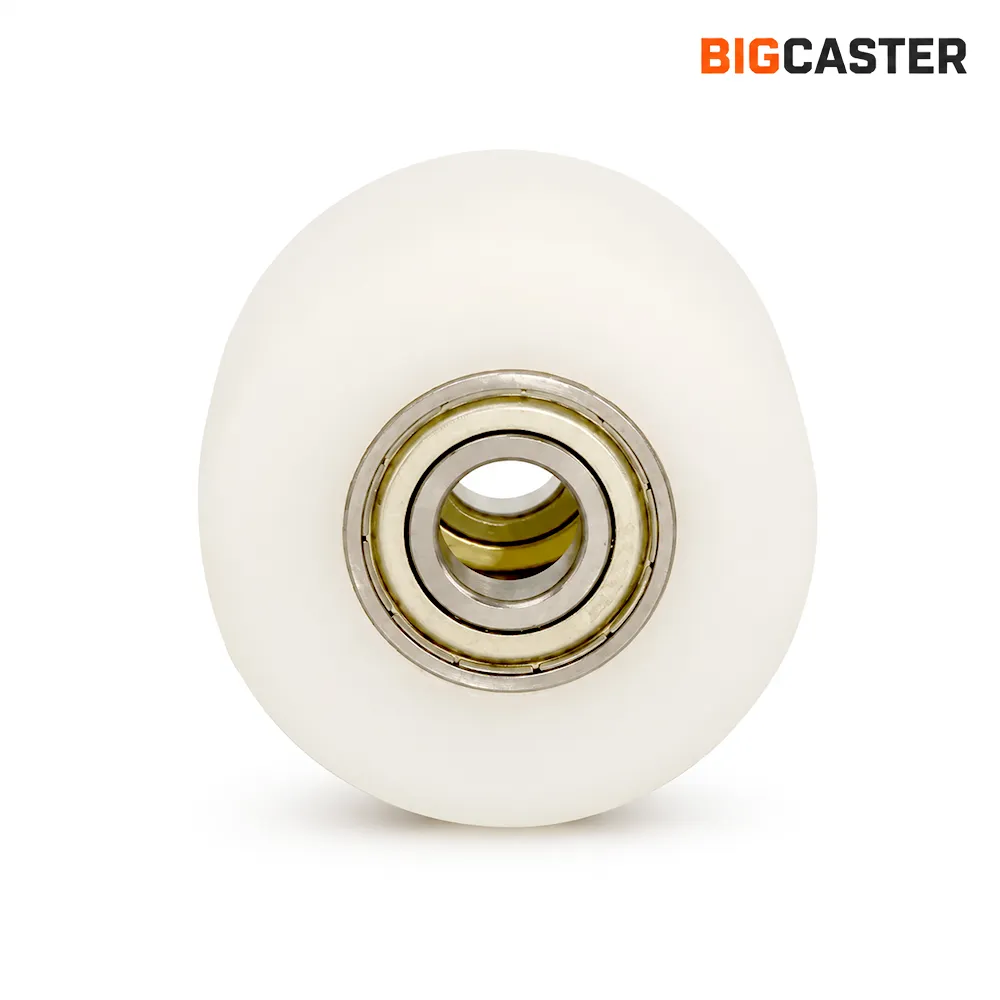

3-inch-low-profile-heavy-duty-nylon-wheel

3 Inch Low-Profile Heavy Duty Nylon Caster M0310

Load Capacity (lbs): 1300 lbs
Load Capacity (kg): 600 kg
SKU: M0310 Series
Wheel Material: Pure Nylon
Heavy-duty, low-profile nylon caster. The wheels are made of pure nylon, offering high load-bearing capacity and wear resistance. Each 56mm wide wheel is equipped with two 6203 ball bearings, achieving a load capacity of 600kg. The overall height of the casters is 115mm, effectively lowering the overall center of gravity of the load. Top plate size and bracket surface treatment are customizable.
Get a Quick Quote
Customize Needs

Casters Data Sheet:

Size Diameter (mm) Wheel Material Wheel Width (mm) Load (KG) Bearing Height (mm) Plate Size (mm) Hole Space (mm) Aperture (mm)
3'' 75 Nylon 56 600 6203*2 115 115*100 84*72 11
