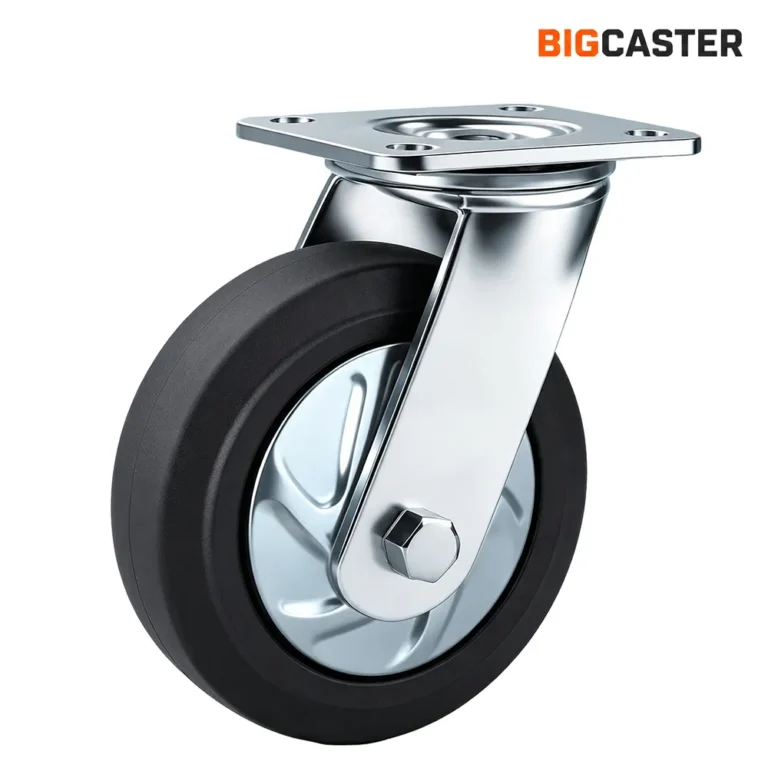

6-inch-heavy-duty-elastic-rubber-swivel-caster-G4403

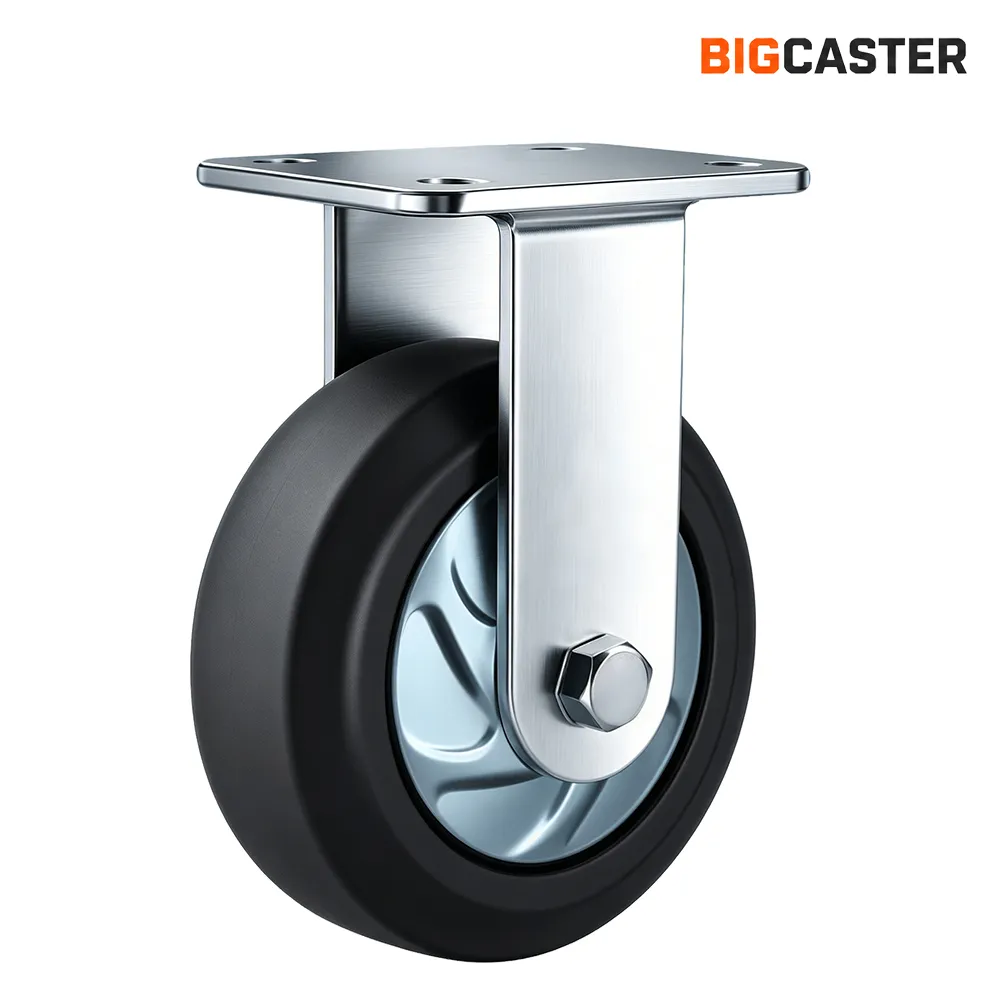

5-inch-heavy-duty-elastic-rubber-rigid-caster-G4403

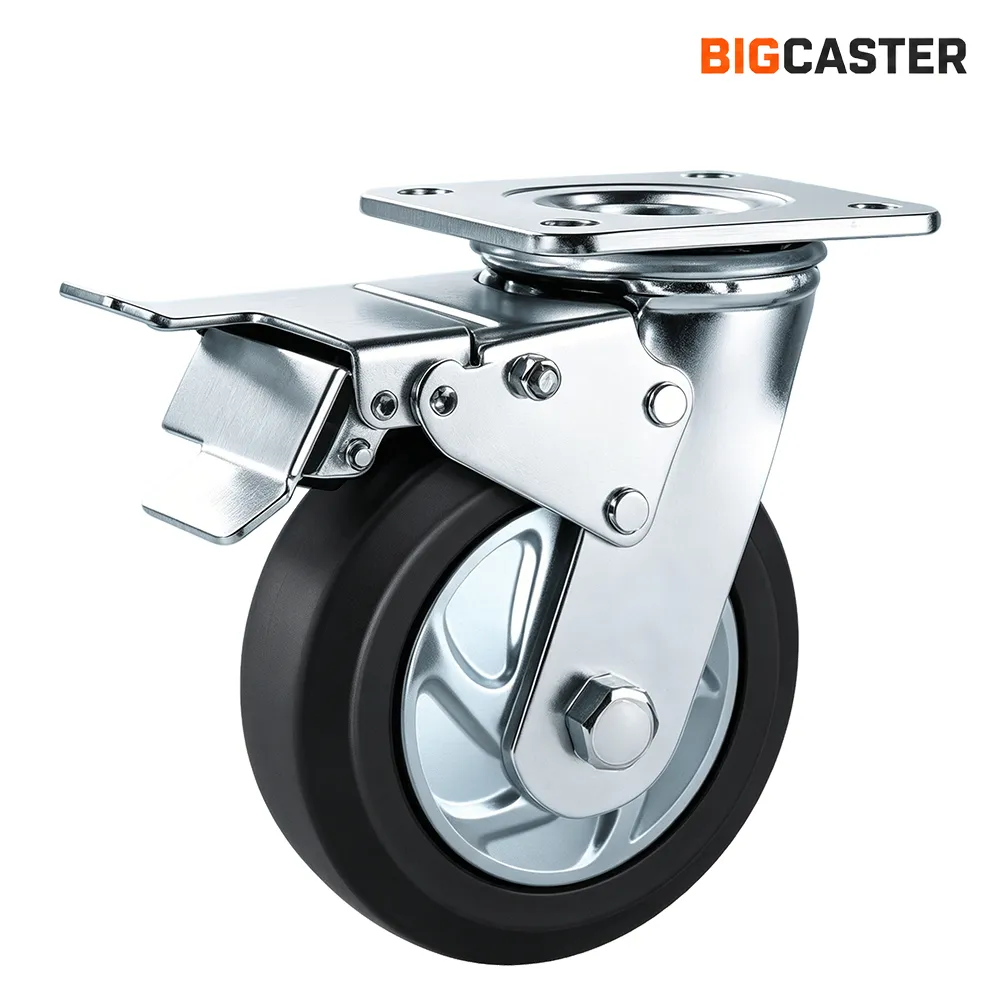

5-inch-heavy-duty-elastic-rubber-brake-caster-G4403

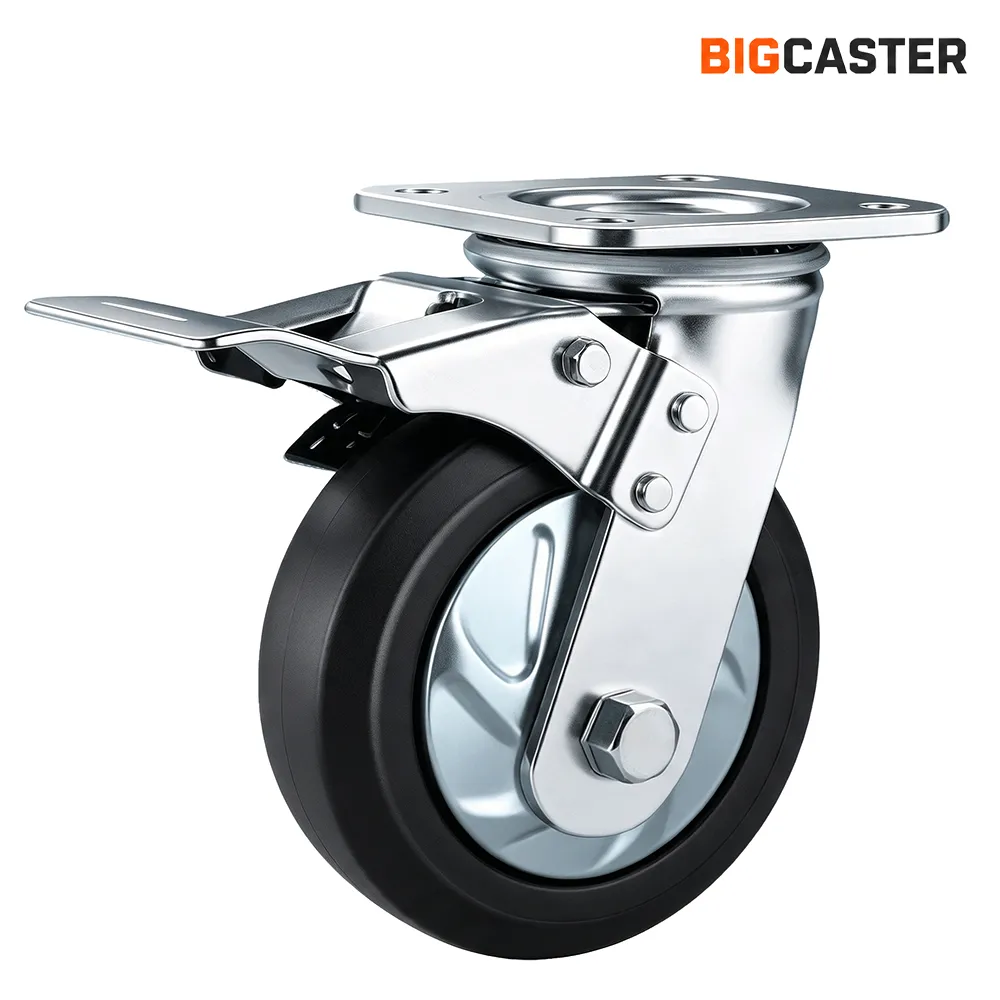

4-inch-heavy-duty-elastic-rubber-brake-caster-G4403

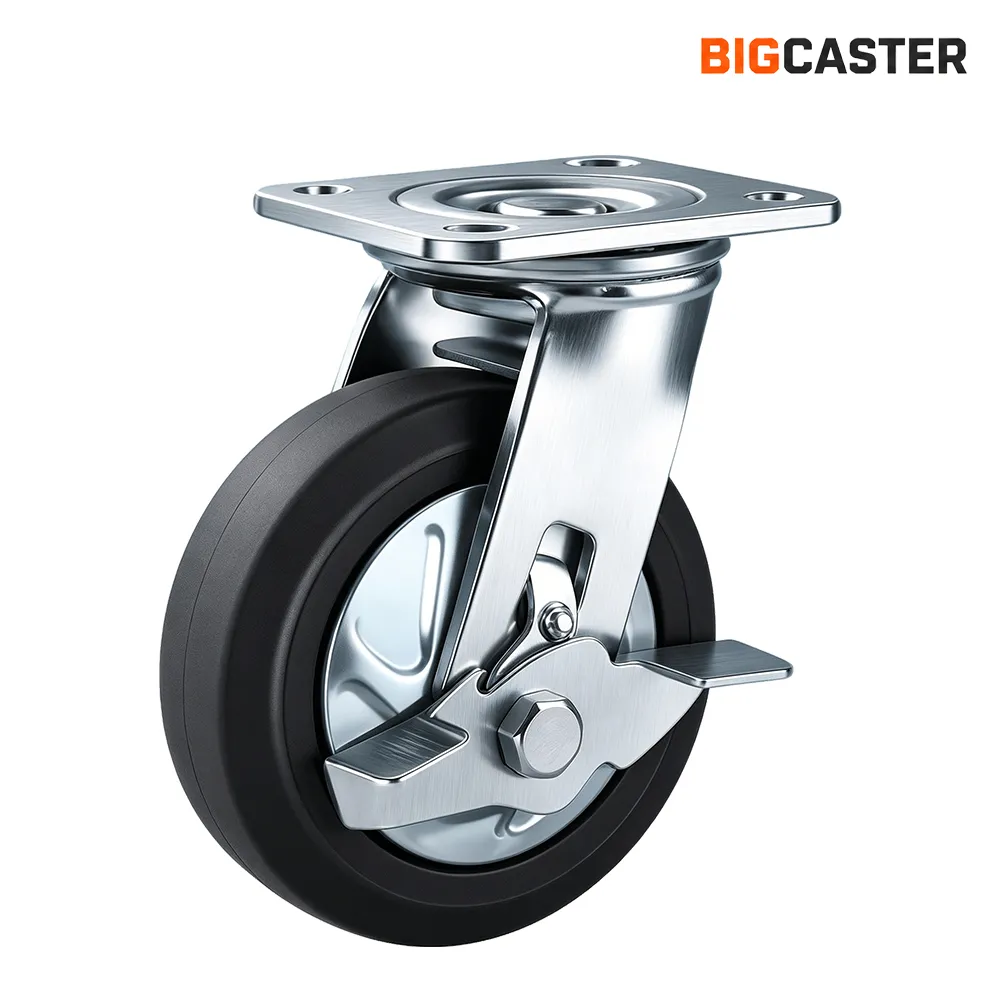

6-inch-heavy-duty-elastic-rubber-side-brake-caster-G4403

Heavy Duty Elastic Rubber Casters G4403

Load Capacity (lbs): UP to 700 lbs
Load Capacity (kg): 200-320 kg
SKU: G4403 Series
Wheel Material: Elastic Rubber (Nylon core)
Heavy-duty natural elastic rubber casters, 6mm galvanized brackets, using high-elasticity, high-wear-resistant rubber, with nylon wheel cores and double ball bearings. Superior noise reduction and floor protection compared to other materials, suitable for medical units and industries with high noise and environmental standards. Dust cover optional, top plate size customizable, bracket material and surface treatment customizable.
Get a Quick Quote
Customize Needs

Casters Data Sheet:

Size Diameter (mm) Wheel Width (mm) Load (KG) Bearing Height (mm) Rotation Radius (mm) Plate Size (mm) Hole Space (mm) Aperture (mm)
4'' 100 50 200 6203*2 143 83 115*100 84*72 11
5'' 125 50 220 6203*2 165 96 115*100 84*72 11
6'' 150 50 280 6203*2 190 113 115*100 84*72 11
8'' 200 50 320 6203*2 241 145 115*100 84*72 11
