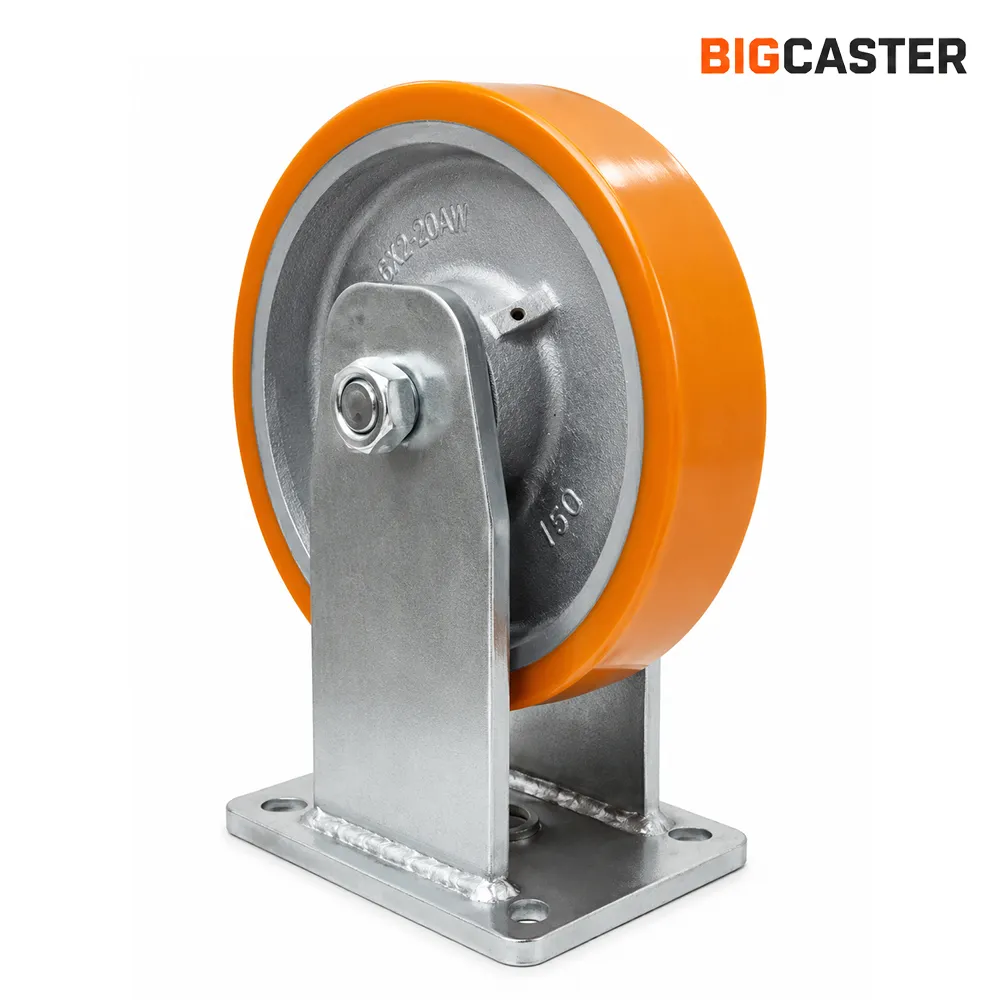

extra-Heavy-duty-iron-core-polyurethane-rigid-caster-e0701

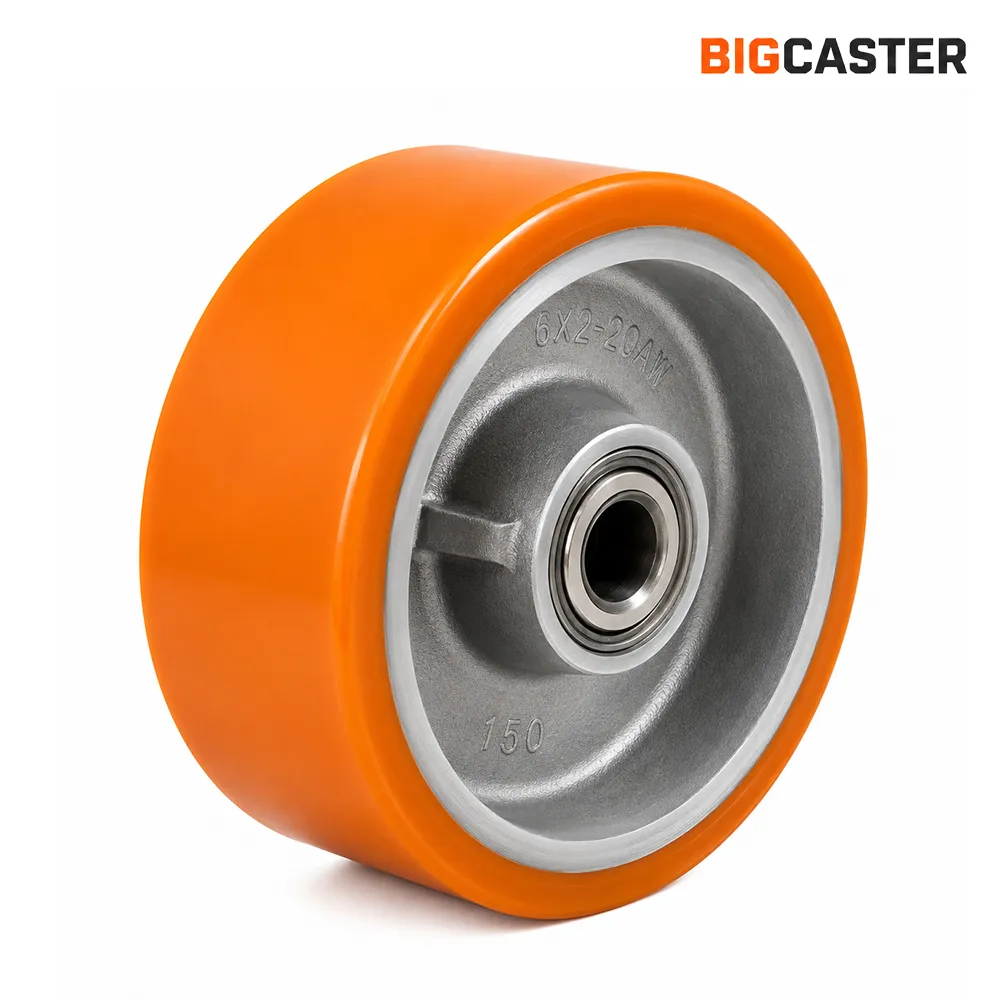

extra-Heavy-duty-iron-core-polyurethane-caster's-wheel-e0701

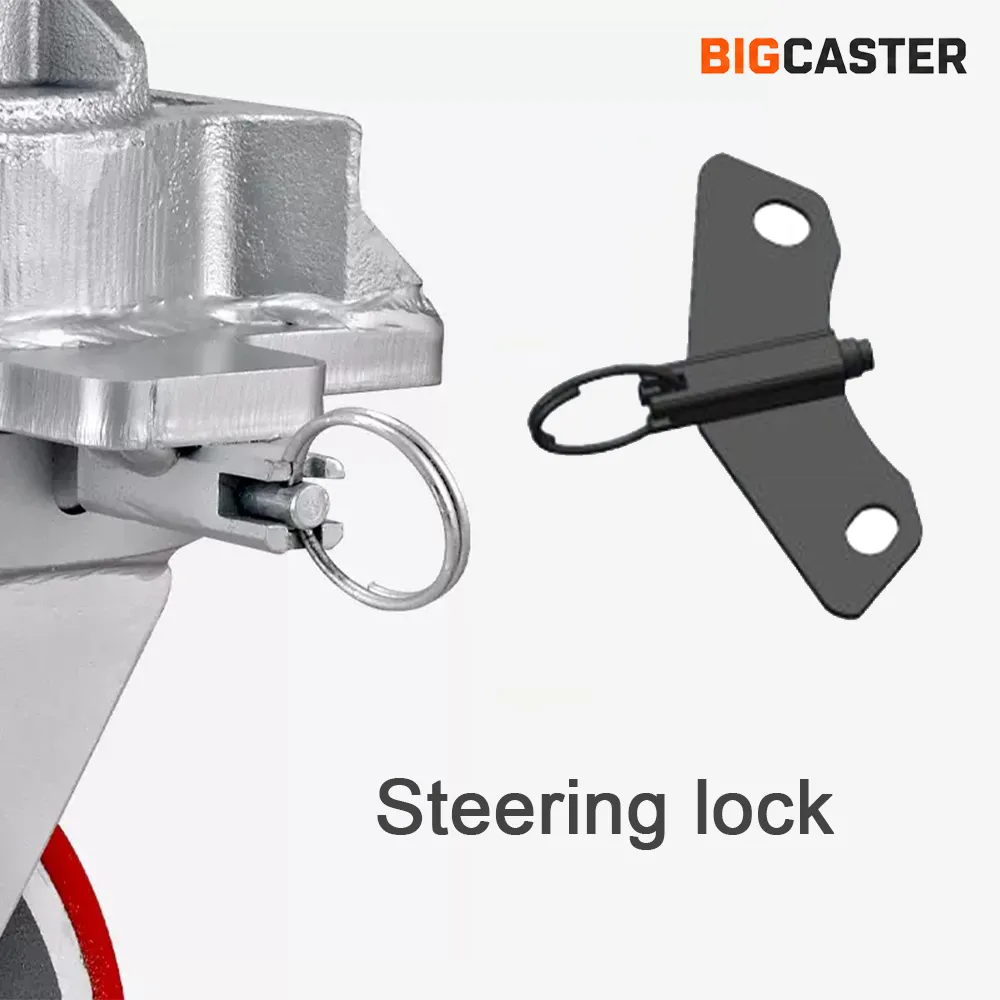

Steering-lock-for-super-heavy-duty-casters

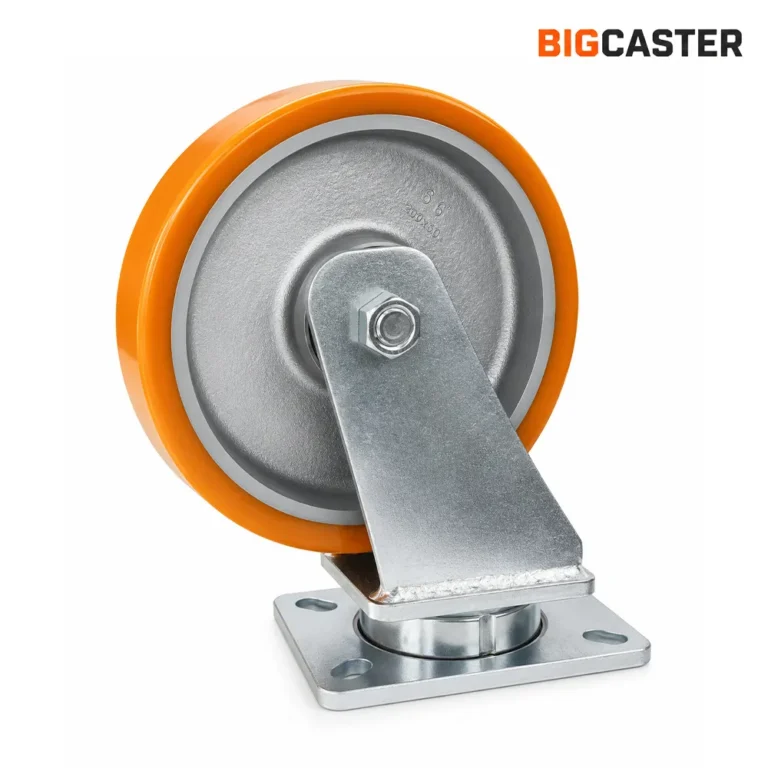

Extra Heavy-Duty Iron-Core Polyurethane Casters E0701

Load Capacity (lbs): 3300-6600 lbs

Load Capacity (kg): 1500-3000 kg

SKU: E0701 Series

Wheel Material: Polyurethane (Iron core)

Super heavy-duty polyurethane casters. The wheels are made of highly wear-resistant polyurethane (iron core), offering excellent noise reduction and floor protection. Each wheel is equipped with 2-4 ball bearings for ultra-high load capacity. The caster bracket structure is impact-resistant, significantly extending the caster’s lifespan. Load capacity and installation dimensions can be customized to your needs.

Casters Data Sheet:

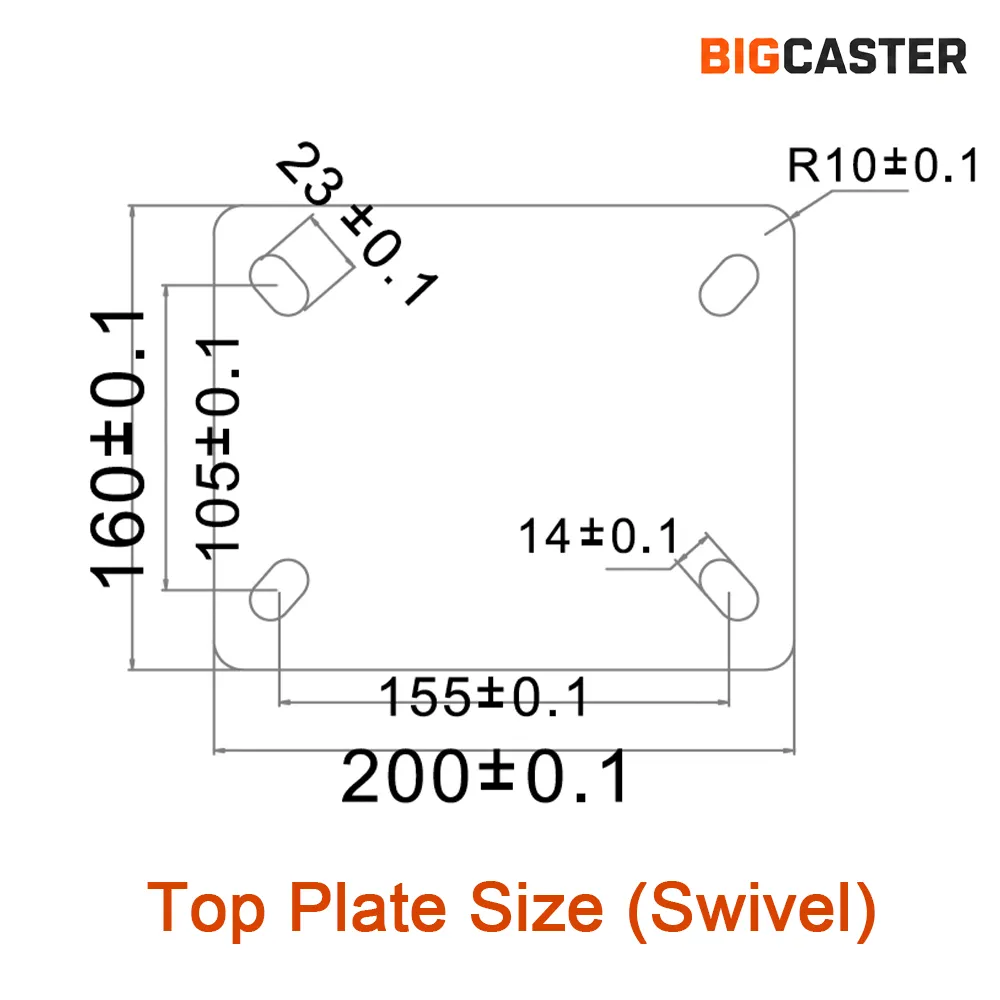

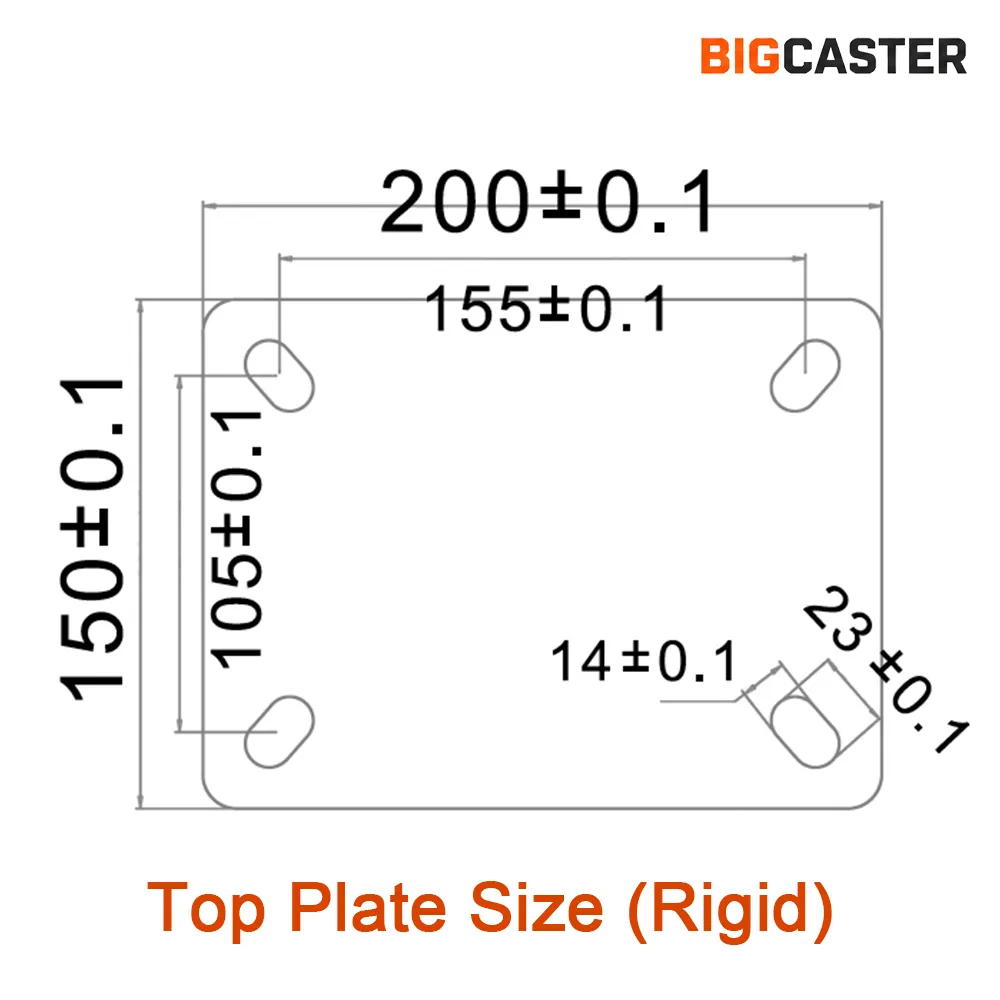

Size	Diameter (mm)	Wheel Width (mm)	Load (KG)	Bearing	Height (mm)	Rotation Radius (mm)	Swivel Plate Size (mm)	Rigid Plate Size (mm)	Hole Space (mm)	Aperture (mm)
6''	150	75	1500	6205*2	214	114	200*160	200*150	155*105	23*14
8''	200	75	2000	6205*2	264	148	200*160	200*150	155*105	23*14
10''	250	75	2500	6205*4	317	184	200*160	200*150	155*105	23*14
12''	300	75	3000	6205*4	367	218	200*160	200*150	155*105	23*14
