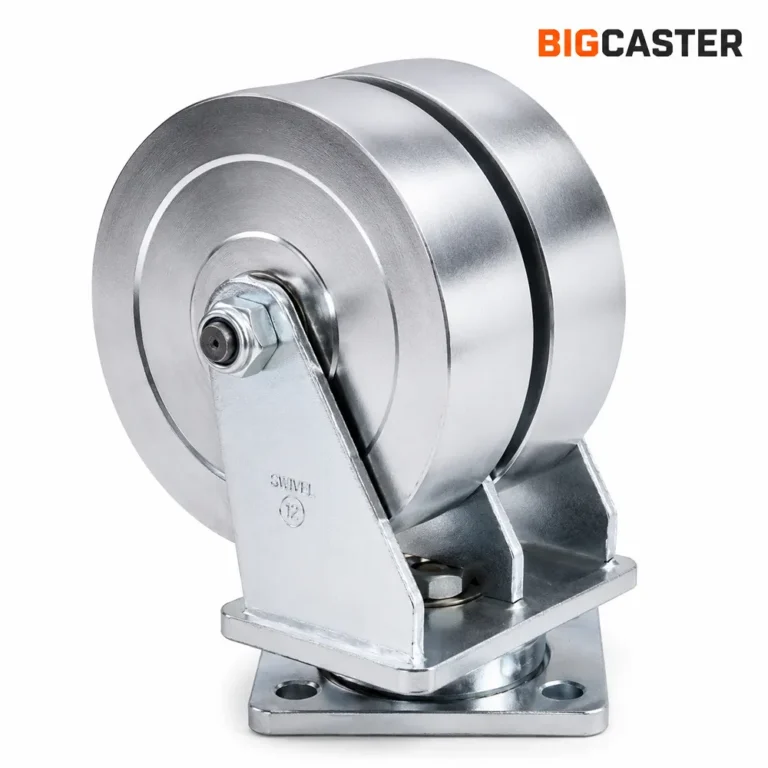

super-heavy-duty-dual-wheel-steel-swivel-casters-E0201

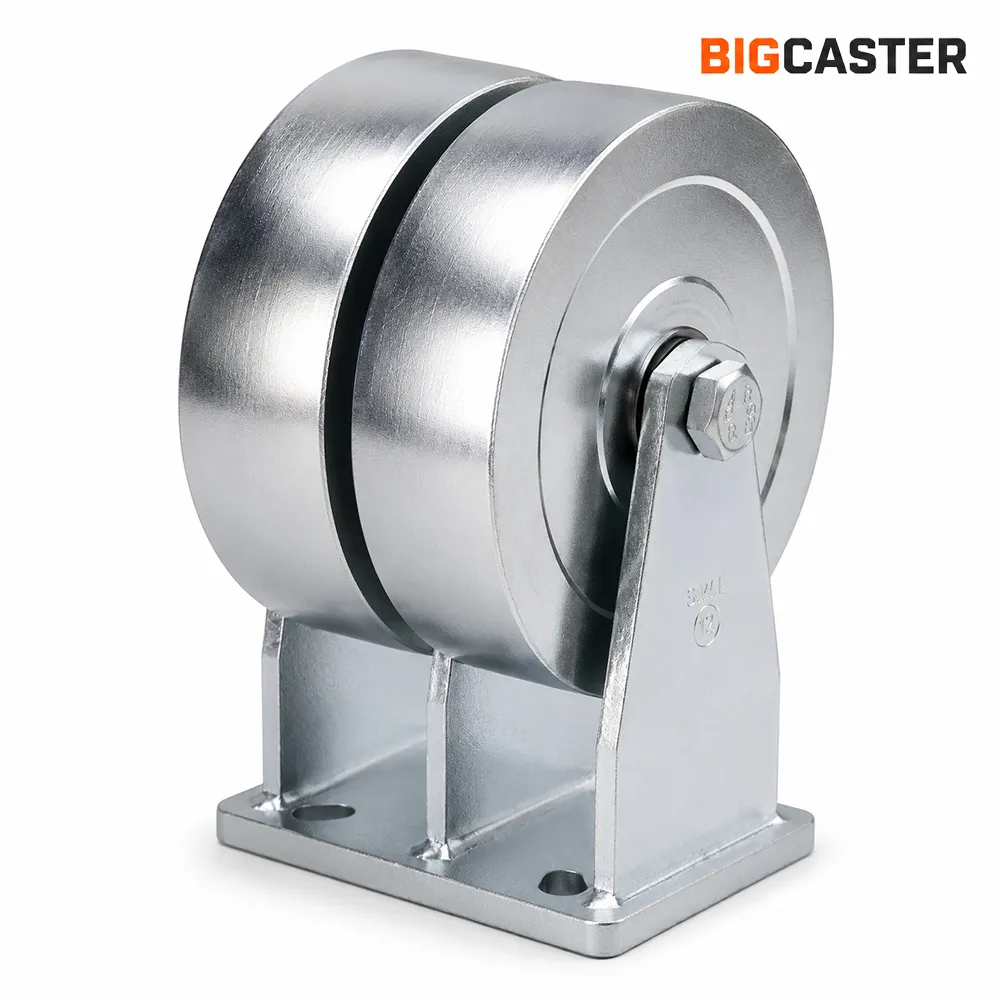

super-heavy-duty-dual-wheel-steel-casters-E0201

Steering-lock-for-super-heavy-duty-casters

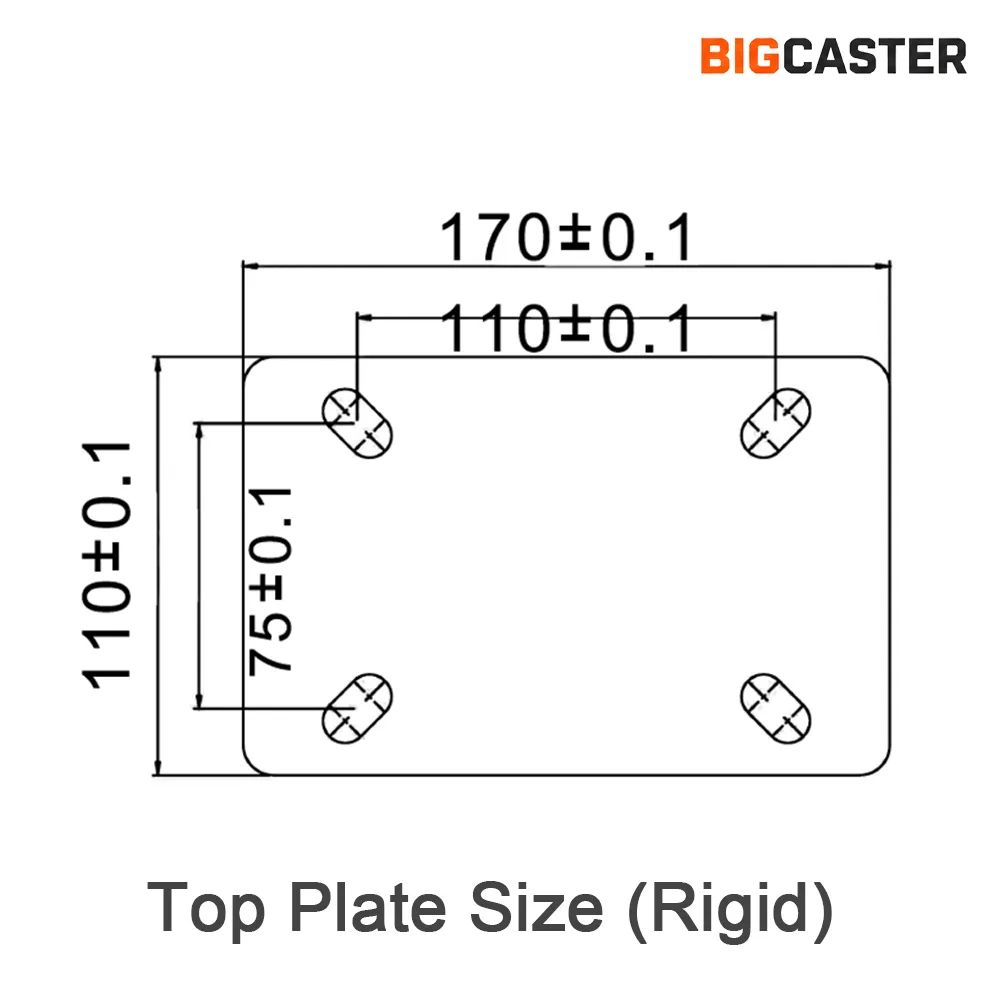

extra-heavy-duty-rigid-casters-top-plate-size-e0201

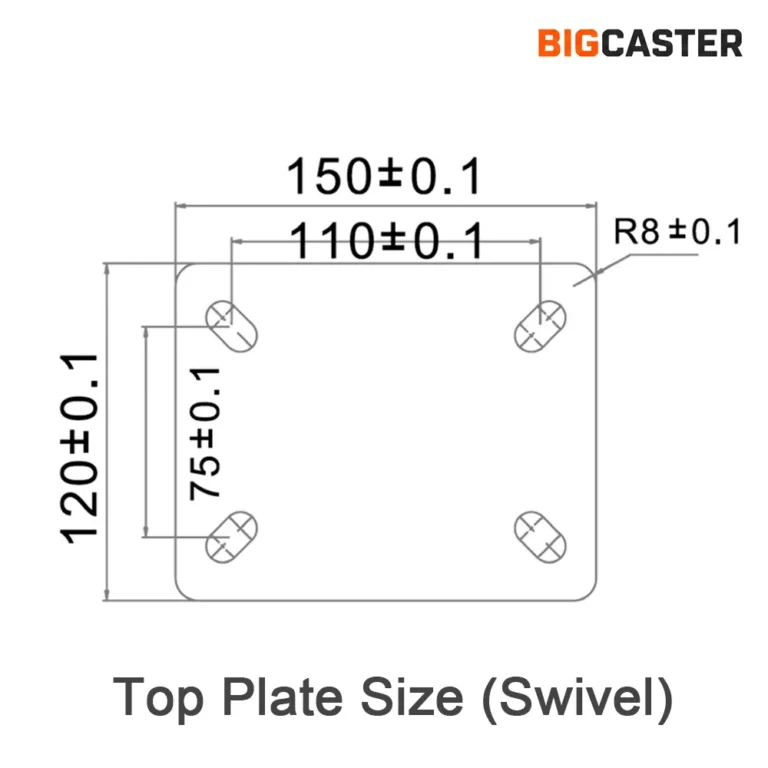

extra-heavy-duty-swivel-casters-top-plate-size-e0201

Extra Heavy Duty Dual Wheel Steel Casters E0201

Load Capacity (lbs): 3500-6200 lbs

Load Capacity (kg): 1200-2800 kg

SKU: E0201 Series

Wheel Material: Steel

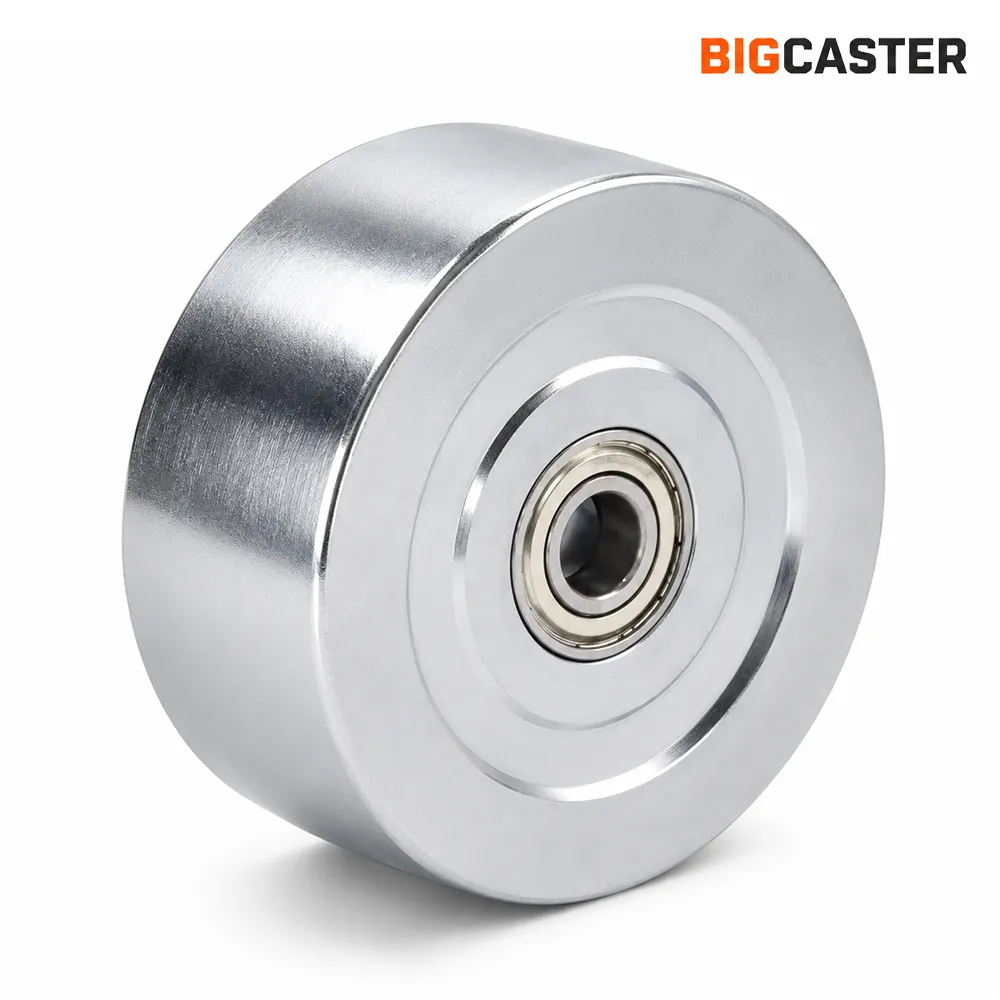

Heavy-duty forged steel double-wheel casters. Wheels are made of 45# steel. Each wheel is equipped with two ball bearings. Load capacity up to 2800kg. The swivel mechanism uses tapered bearings and an impact-resistant structure. Custom caster configurations can be tailored to your load requirements, installation needs, and operating environment.

Casters Data Sheet:

Size	Diameter (mm)	Wheel Width (mm)	Load (KG)	Bearing	Height (mm)	Rotation Radius (mm)	Swivel Plate Size (mm)	Rigid Plate Size (mm)	Hole Space (mm)
4''	100	55*2	1600	6303*2	162	78	150*120	170*110	110*75
5''	125	55*2	2000	6303*2	187	95	150*120	170*110	110*75
6''	150	55*2	2400	6304*2	212	113	150*120	170*110	110*75
8''	200	55*2	2800	6304*2	262	148	150*120	170*110	110*75
