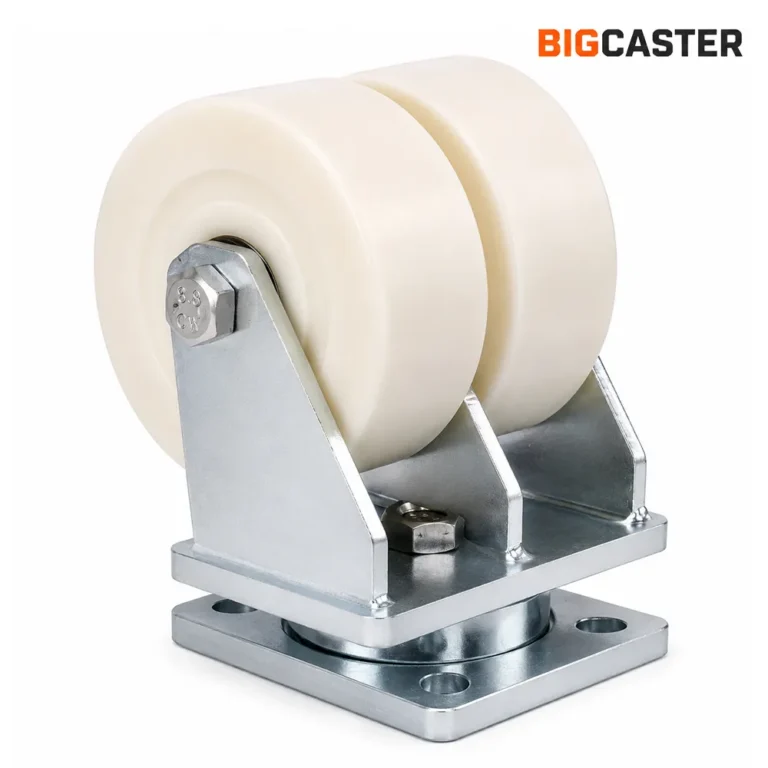

extra-heavy-duty-dual-wheel-nylon-swivel-caster-E0501

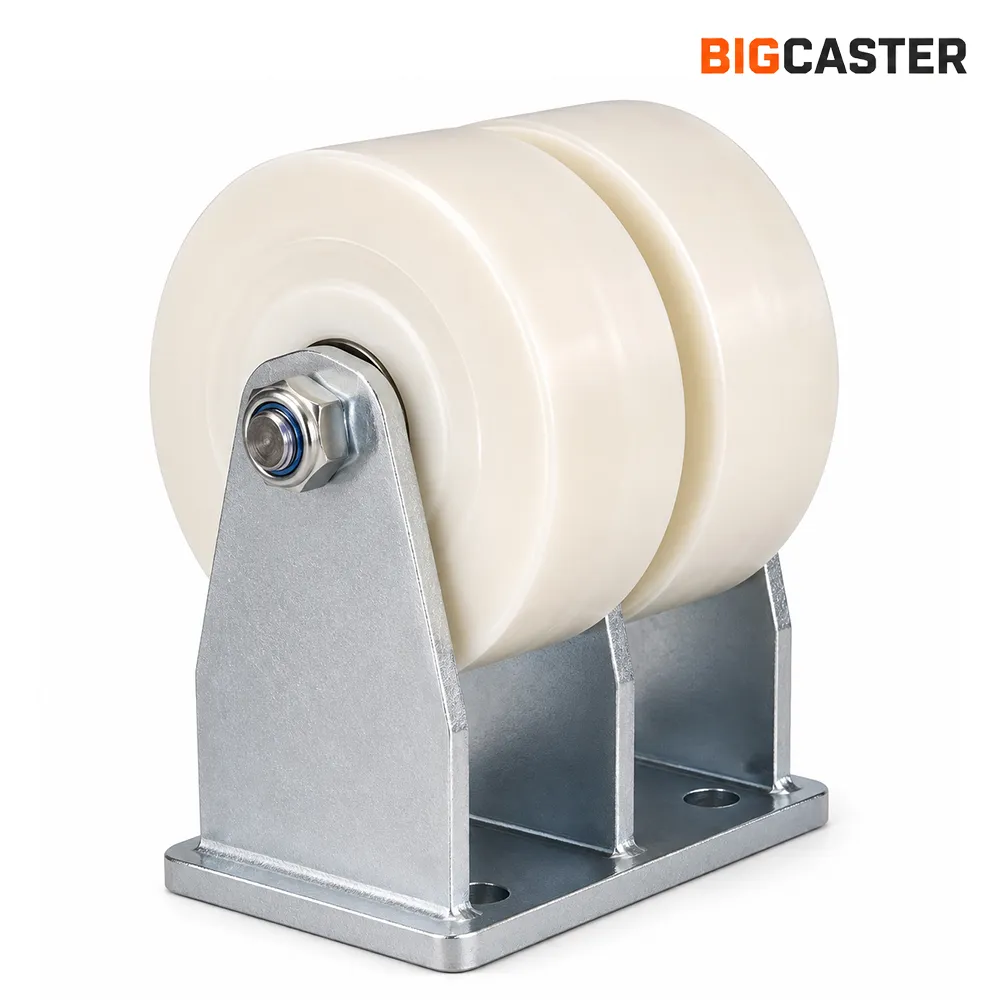

extra-heavy-duty-dual-wheel-nylon-rigid-caster-wheel-E0501

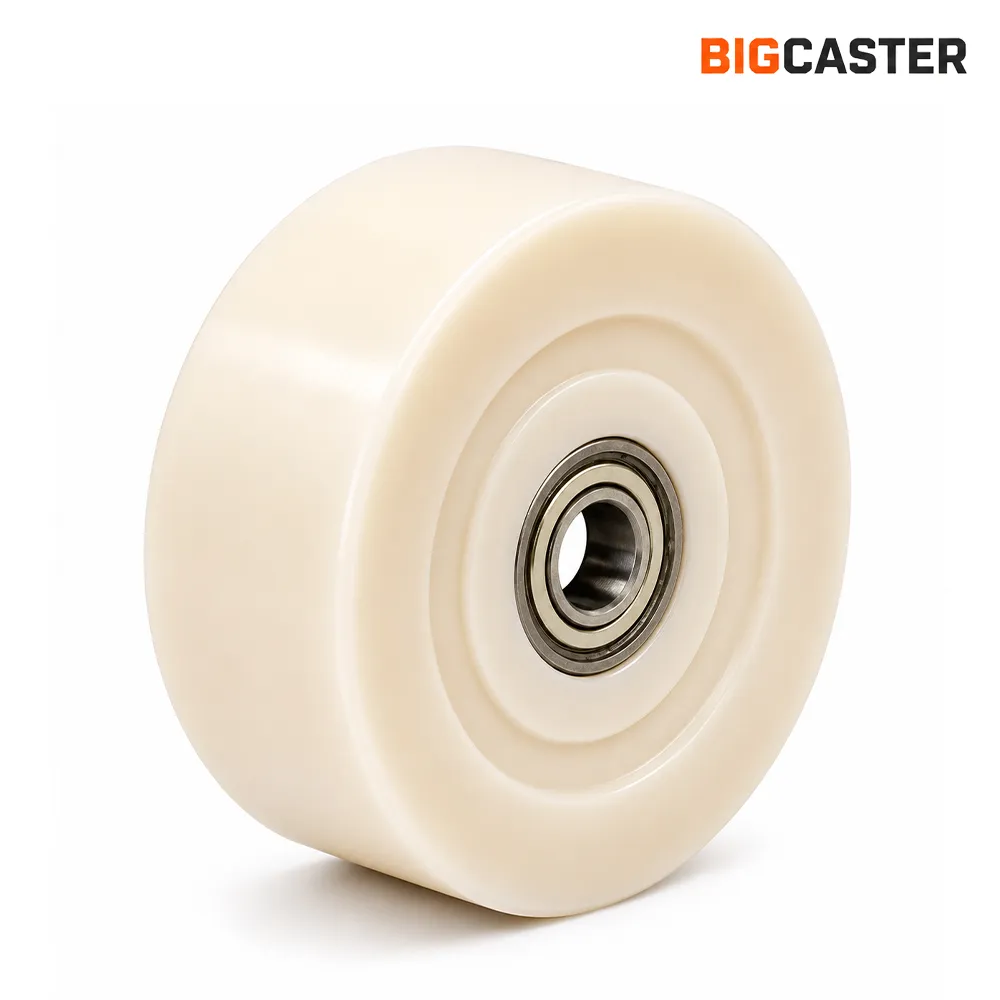

extra-heavy-duty-nylon-caster's-wheel-E0501

Steering-lock-for-super-heavy-duty-casters

extra-heavy-duty-swivel-casters-top-plate-size-e0201

extra-heavy-duty-rigid-casters-top-plate-size-e0201

Extra Heavy Duty Dual-Wheel Nylon Caster Wheel E0501

Load Capacity (lbs): 3000-6000 lbs

Load Capacity (kg): 1400-2500 kg

SKU: E0501 Series

Wheel Material: PA Nylon

Super heavy-duty nylon double-wheel casters. The wheels are made of wear-resistant nylon, suitable for various floor types. Each wheel is equipped with two ball bearings. Individual wheel width is 55mm. Overall wheel width is 120mm. The swivel mechanism uses both flat and tapered bearings, with an impact-resistant structure. Custom caster configurations can be tailored to your load-bearing requirements, installation needs, and operating environment.

Casters Data Sheet:

Size	Diameter (mm)	Wheel Width (mm)	Load (KG)	Bearing	Height (mm)	Rotation Radius (mm)	Swivel Plate Size (mm)	Rigid Plate Size (mm)	Hole Space (mm)
4''	100	55*2	1400	6303*2	162	78	150*120	170*110	110*75
5''	125	55*2	1700	6303*2	187	95	150*120	170*110	110*75
6''	150	55*2	2000	6304*2	212	113	150*120	170*110	110*75
8''	200	55*2	2500	6304*2	262	148	150*120	170*110	110*75
