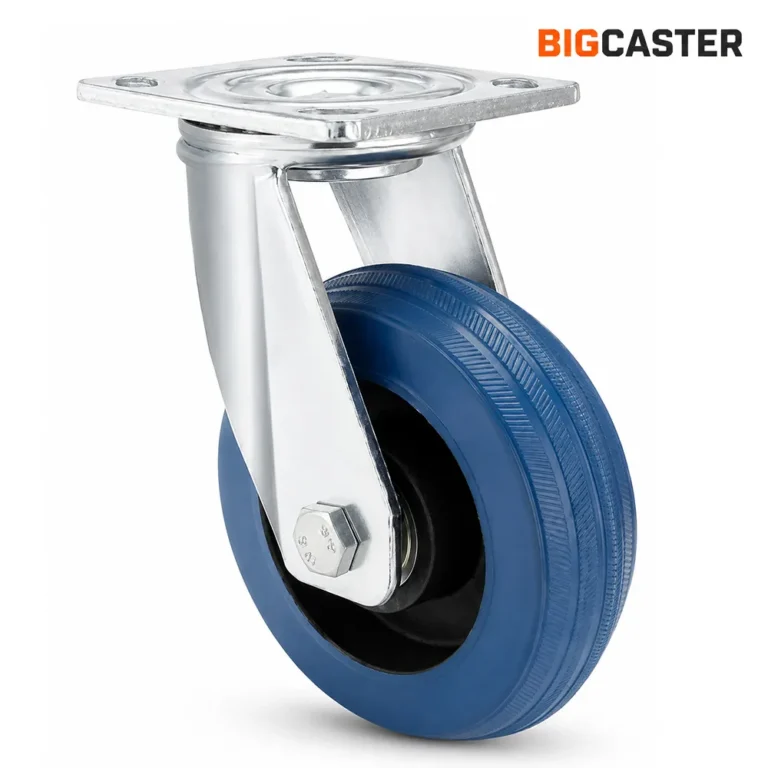

6-inch-iron-core-heavy-duty-elastic-rubber-swivel-caster-m0150

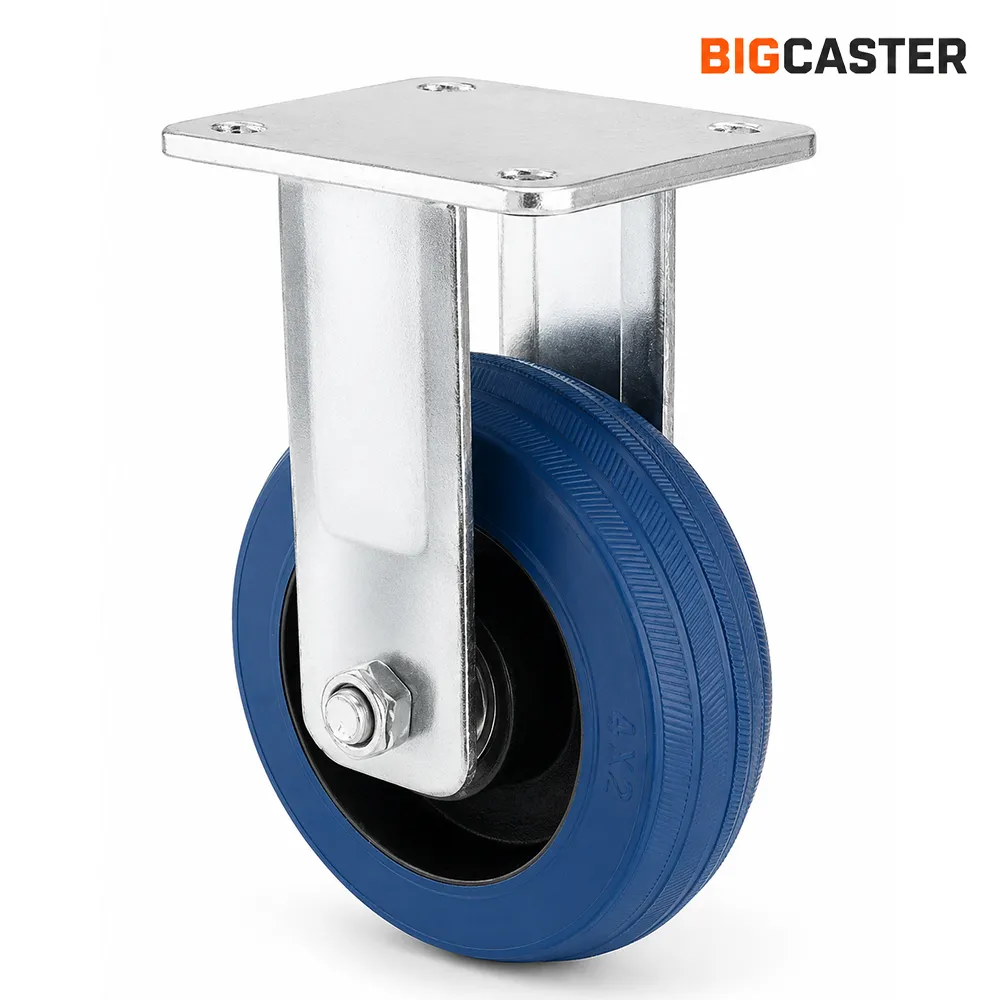

6-inch-iron-core-heavy-duty-elastic-rubber-rigid-caster-m0150

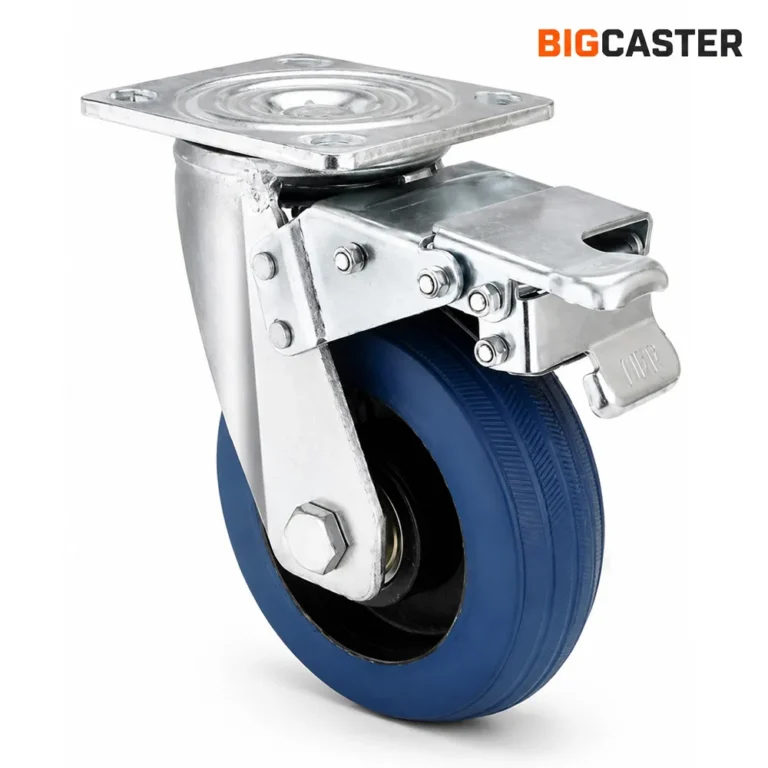

6-inch-iron-core-heavy-duty-elastic-rubber-brake-caster-m0150
Caster top plate installation dimensions

Elastic Rubber Iron Core Heavy Duty Rubber Caster M0150

Load Capacity (lbs): 450-850 lbs
Load Capacity (kg): 200- 380 kg
SKU: M0150 Series
Wheel Material: Elastic Rubber (Iron core)
Heavy-duty casters featuring high-elasticity natural rubber treads and cast-iron cores, equipped with dual silent ball bearings for high load capacity; dust covers are available as an option. Top plate dimensions and mounting hole patterns can be customized, and the bracket material can be upgraded to stainless steel.
Get a Quick Quote
Customize Needs

Casters Data Sheet:

Size Diameter (mm) Wheel Width (mm) Load (KG) Bearing Height (mm) Rotation Radius (mm) Plate Size (mm) Hole Space (mm) Aperture (mm)
4'' 100 50 200 6203*2 143 83 115*100 84*72 11
5'' 125 50 230 6203*2 165 96 115*100 84*72 11
6'' 150 50 300 6203*2 190 113 115*100 84*72 11
8'' 200 50 350 6203*2 241 145 115*100 84*72 11
