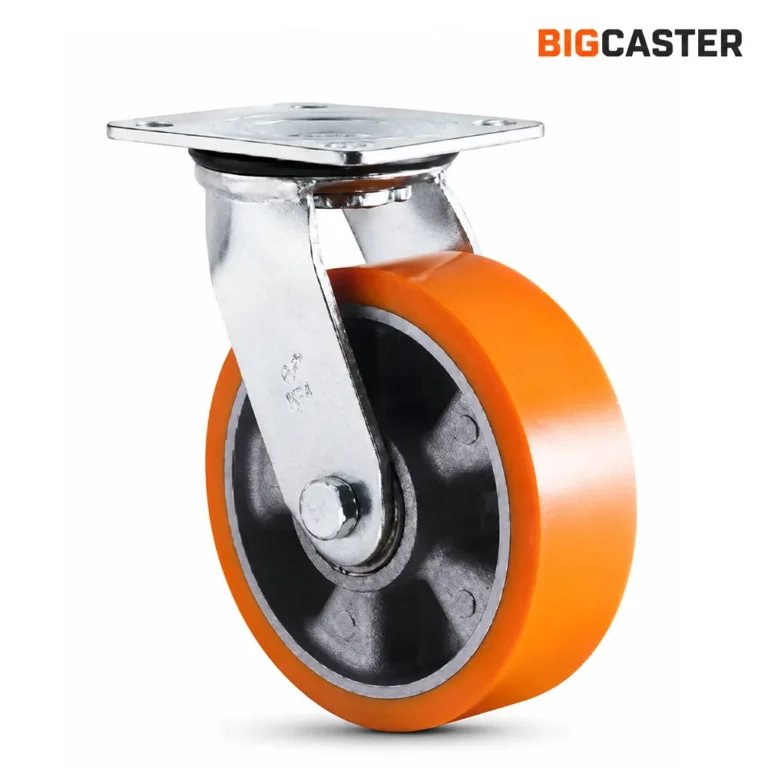

6-inch-heavy-duty-aluminum-core-polyurethane-swivel-caster-G42202

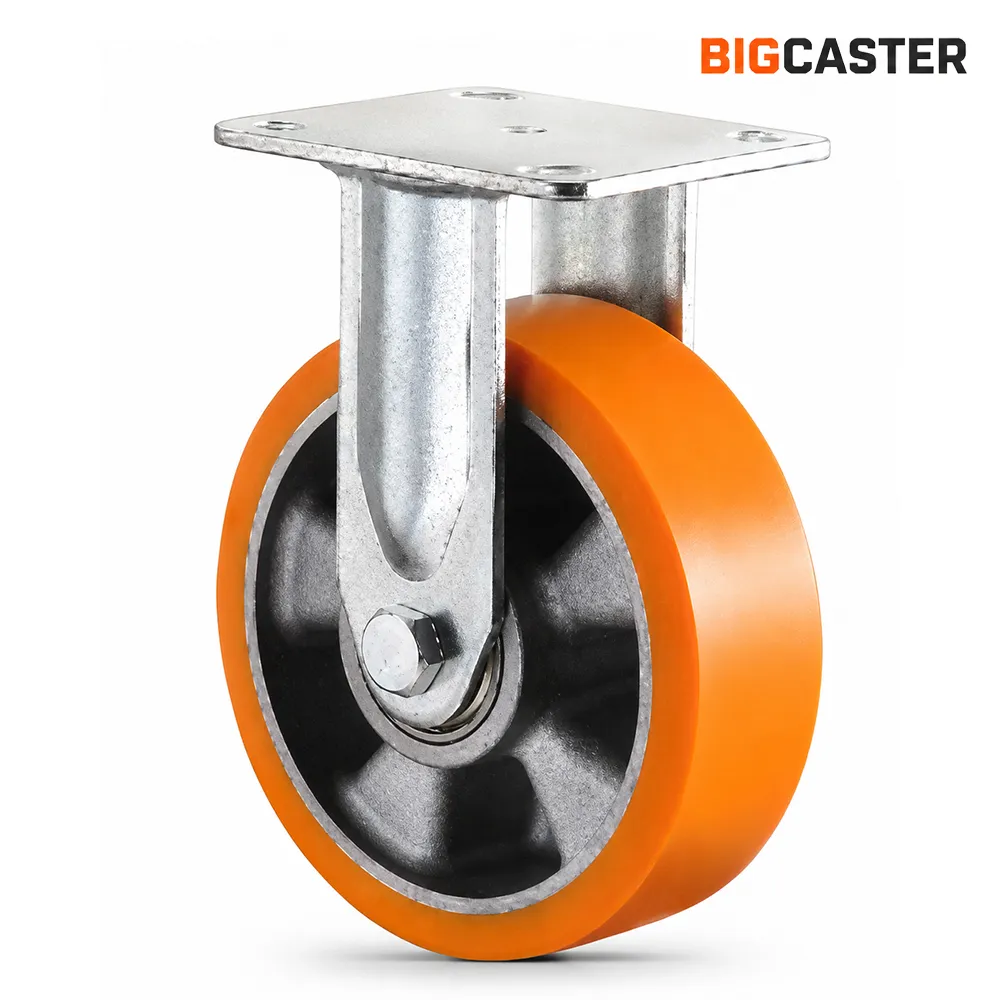

5-inch-heavy-duty-aluminum-core-polyurethane-rigid-caster-G42202

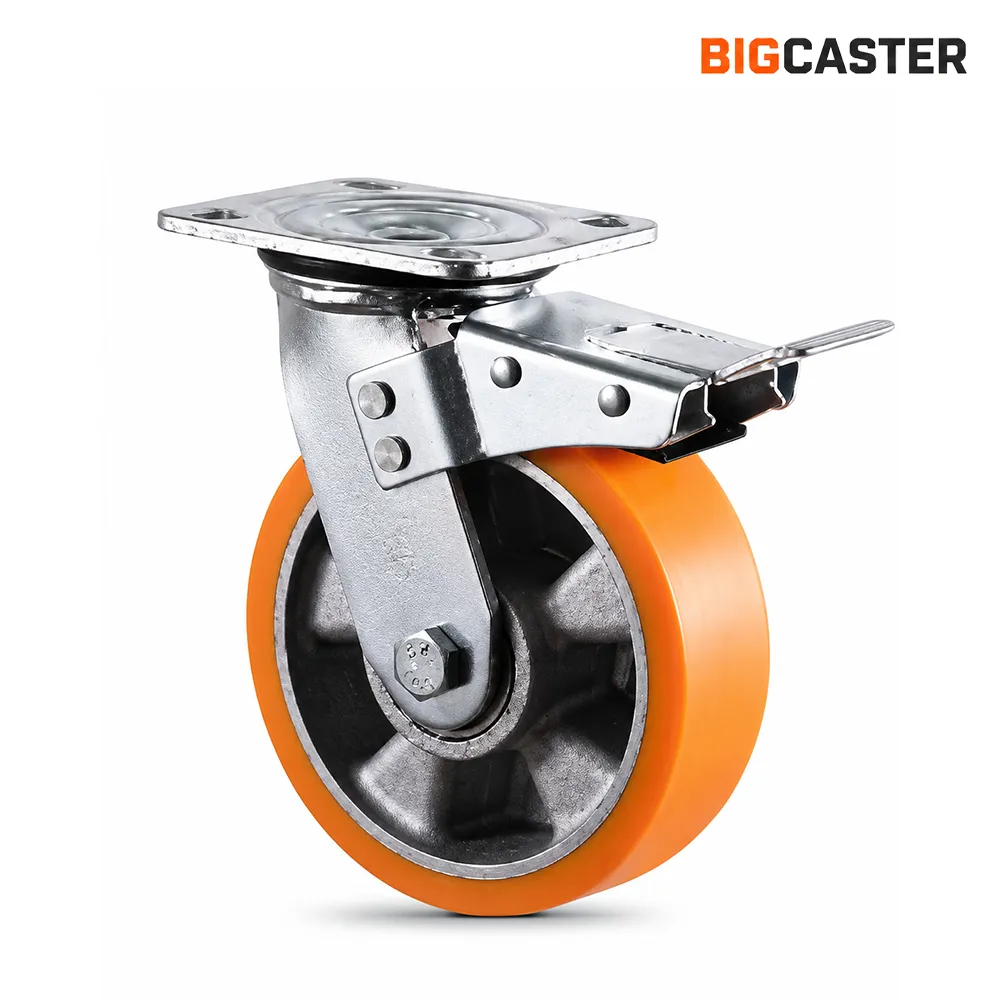

8inch-heavy-duty-aluminum-core-polyurethane-brake-caster-G42202

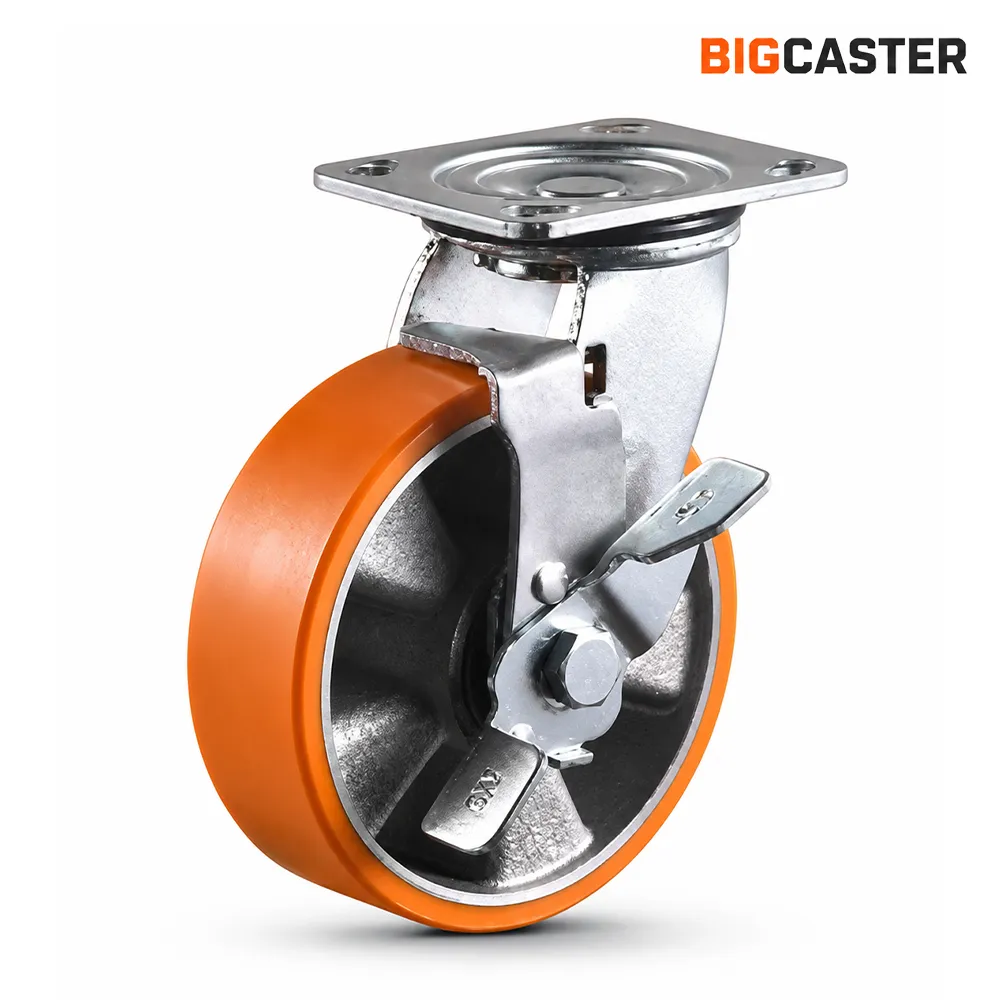

6-inch-heavy-duty-aluminum-core-polyurethane-side-brake-caster-G42202

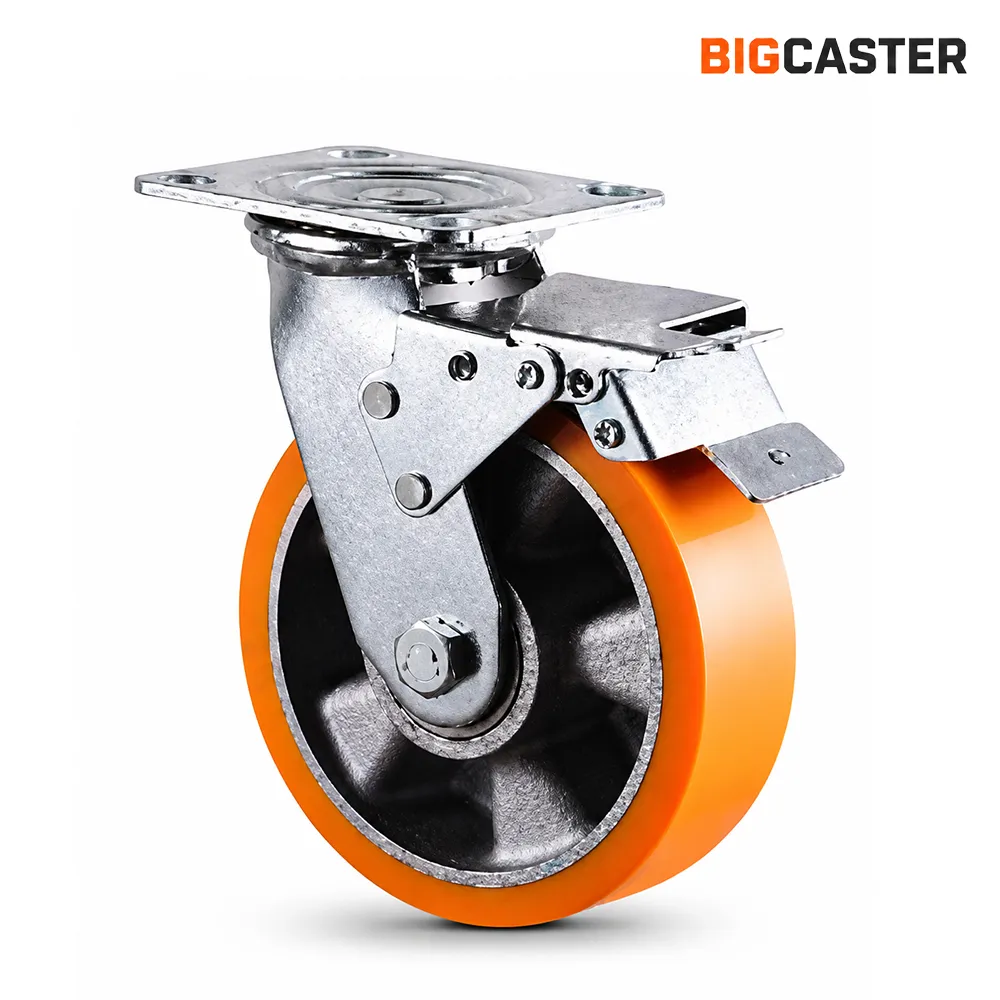

4-inch-heavy-duty-aluminum-core-polyurethane-brake-caster-G42202

Aluminum Core Heavy Duty Polyurethane Casters G42202

Load Capacity (lbs): 900- 1200 lbs
Load Capacity (kg): 400- 550 kg
SKU: G42202 Series
Wheel Material: Polyurethane (aluminum core)
Heavy-duty aluminum core polyurethane casters. The aluminum core significantly reduces the caster’s weight. The outer layer of the core is coated with wear-resistant polyurethane and equipped with two ball bearings, providing superior quiet operation and floor protection. Flat wheel edges ensure more stable rotation. Top plate size, bracket material, and surface treatment are customizable.
Get a Quick Quote
Customize Needs

Casters Data Sheet:

Size Diameter (mm) Wheel Width (mm) Load (KG) Bearing Height (mm) Rotation Radius (mm) Plate Size (mm) Hole Space (mm) Aperture (mm)
4'' 100 50 400 6203*2 143 83 115*100 84*72 11
5'' 125 50 450 6203*2 165 96 115*100 84*72 11
6'' 150 50 500 6203*2 190 113 115*100 84*72 11
8'' 200 50 550 6203*2 241 145 115*100 84*72 11
