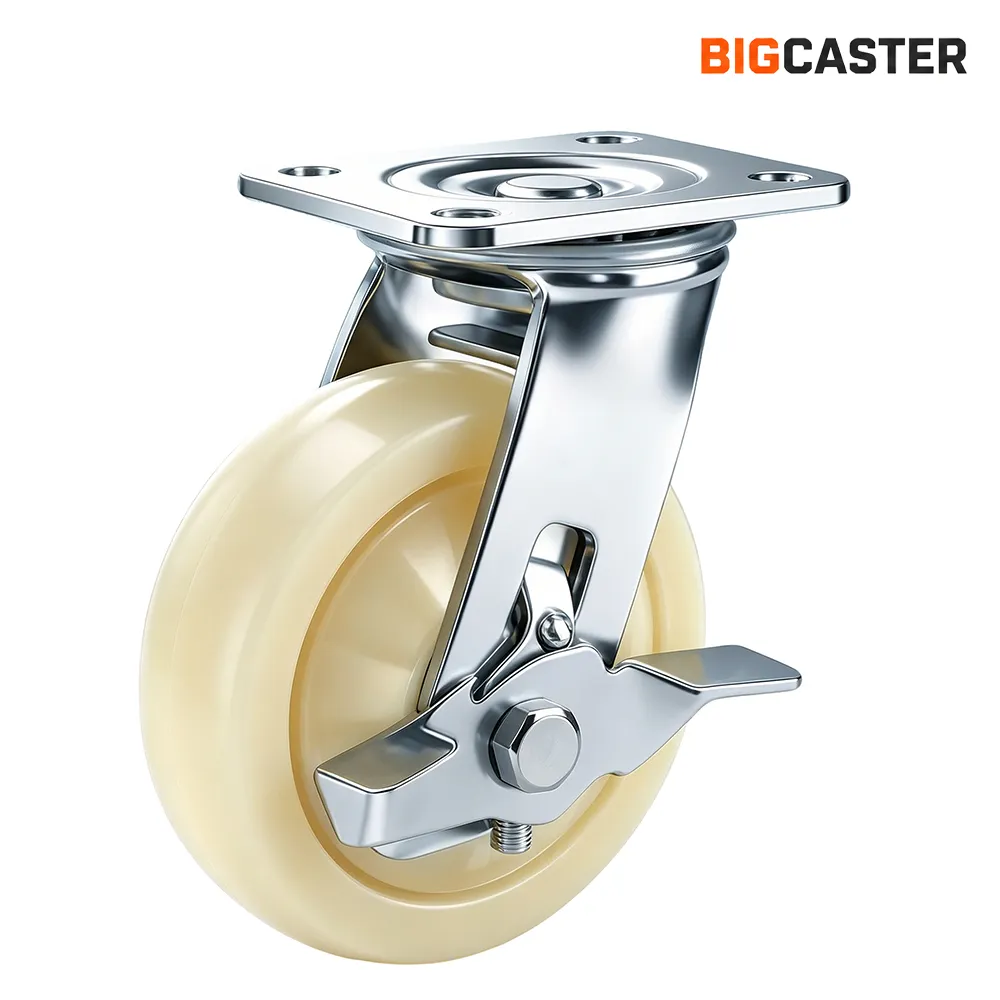

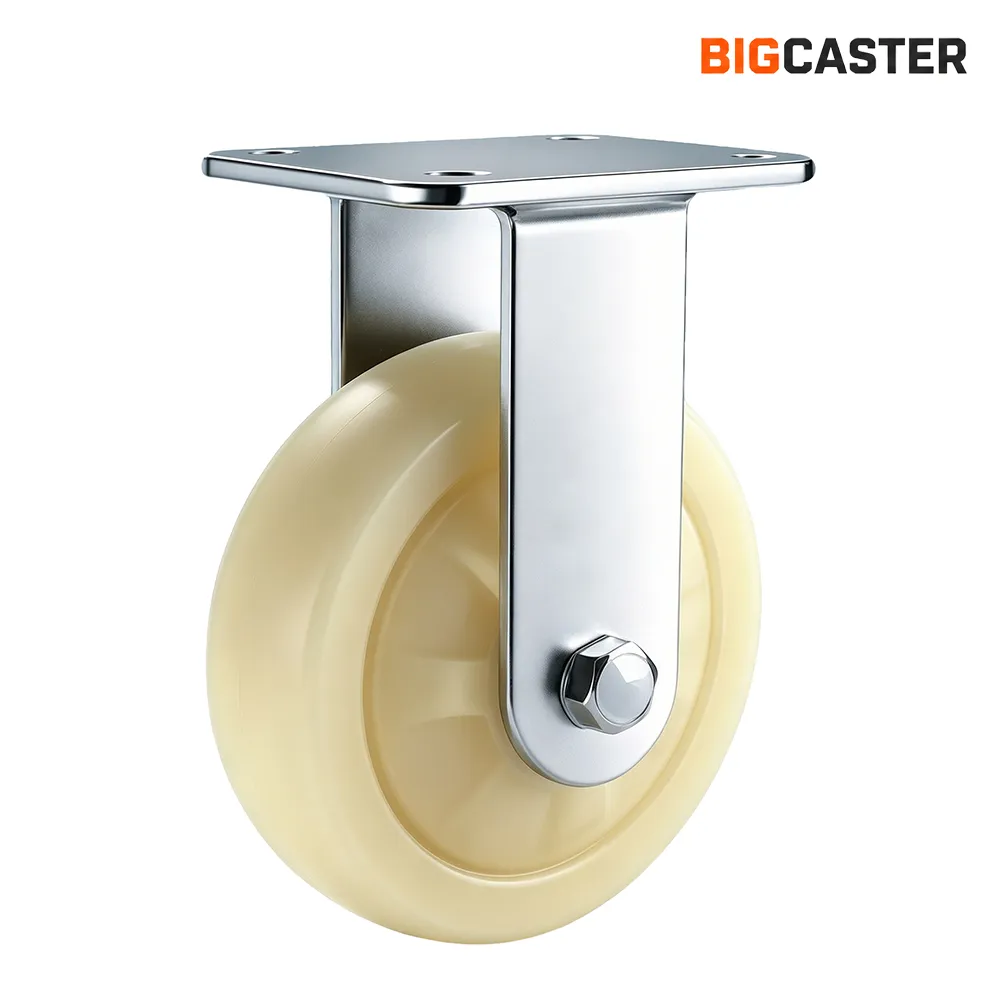

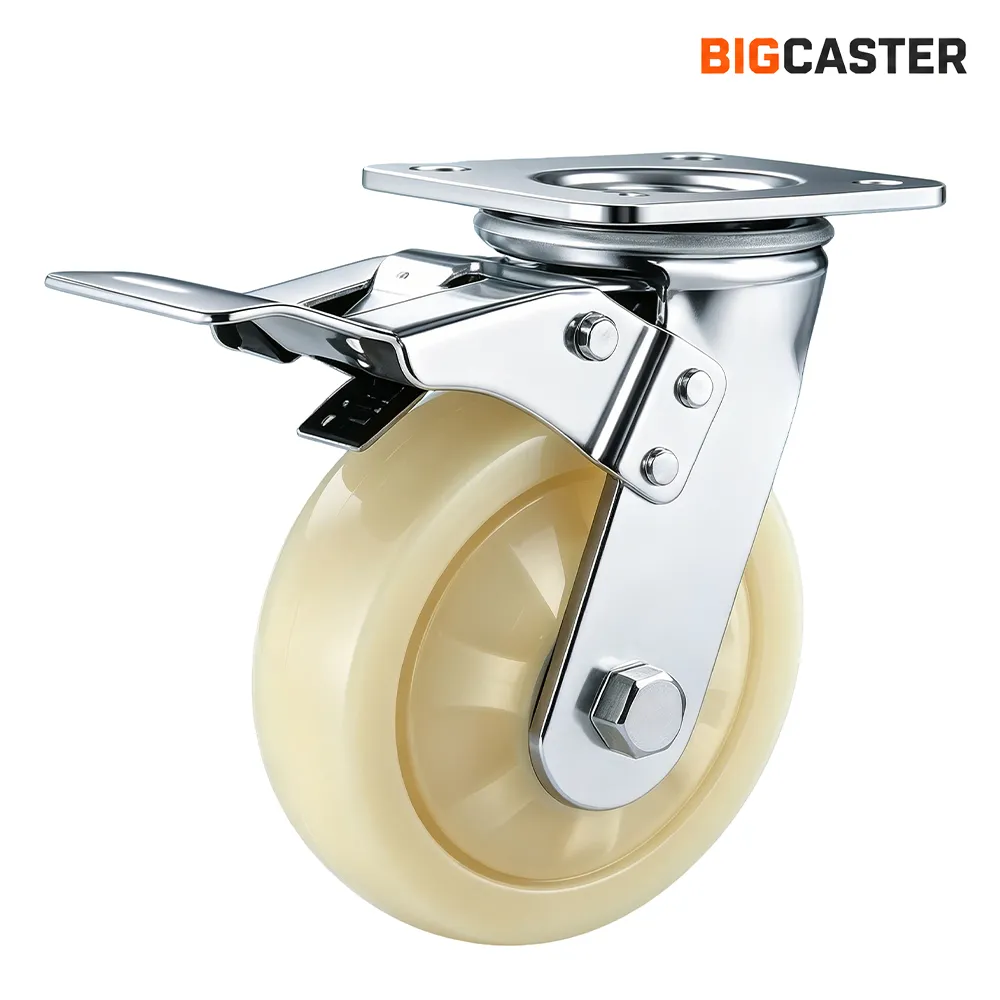

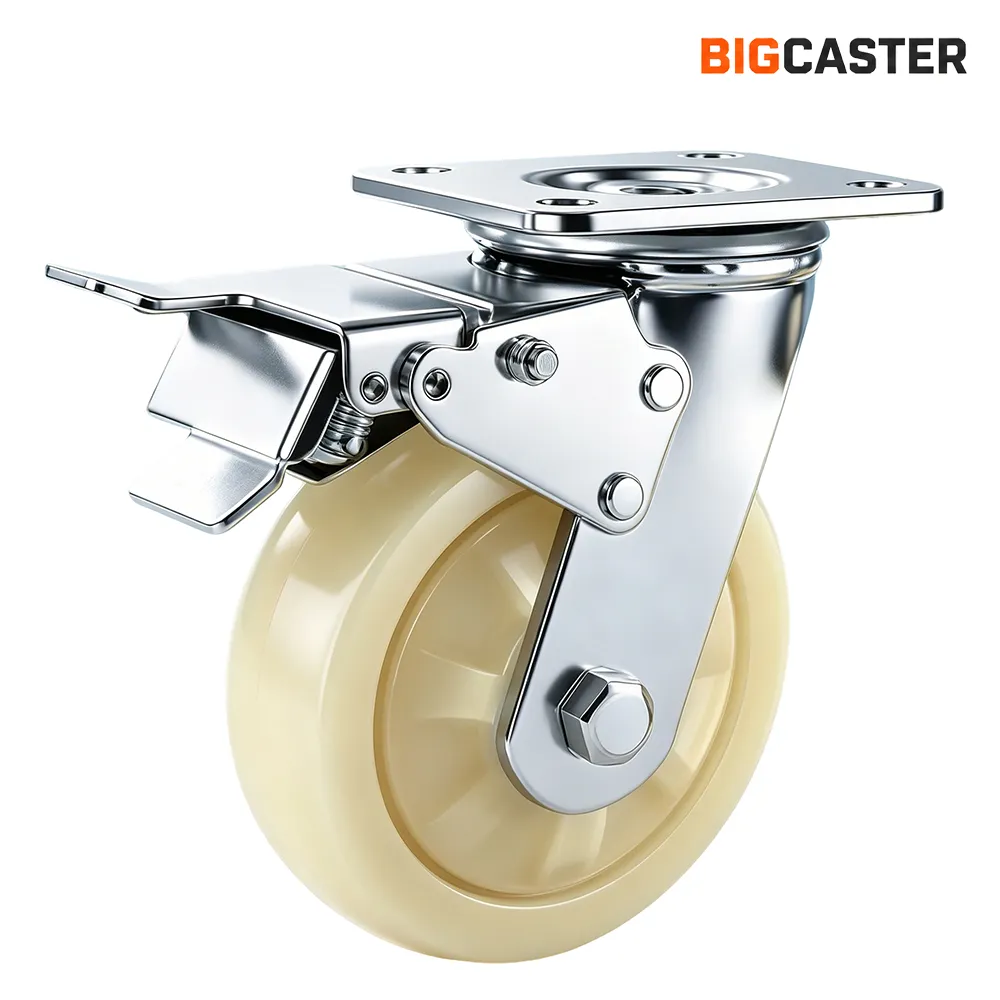

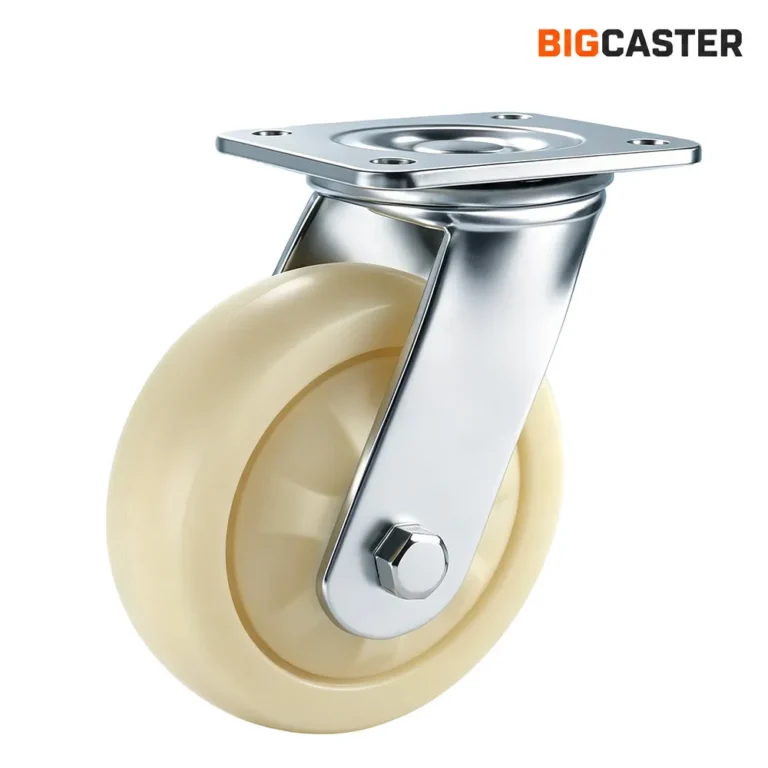

Heavy Duty PP Caster Wheel G410 Series
Load Capacity (lbs): 600 – 1000 lbs
Load Capacity (kg): 290 – 430 KG
Wheel Material: High-strength polypropylene
6mm galvanized bracket, assembled using a screw-and-nut fastening method followed by riveting.
The wheel is made of high-strength, highly wear-resistant PP and equipped with two high-precision bearing-steel ball bearings; dust covers or anti-tangle guards are available as options. It offers superior wear resistance and is widely used in industrial production.
Casters Data Sheet
| Size | Diameter(mm) | Wheel Width (mm) | Load (KG) | Bearing | Height (mm) | Rotation Radius (mm) | Plate Size (mm) | Hole Space (mm) | Aperture (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 4'' | 100 | 45 | 290 | 6202*2 | 143 | 82 | 115*100 | 84*72 | 11 |
| 5'' | 125 | 45 | 360 | 6202*2 | 165 | 93 | 115*100 | 84*72 | 11 |
| 6'' | 150 | 45 | 410 | 6202*2 | 190 | 111 | 115*100 | 84*72 | 11 |
| 8'' | 200 | 45 | 430 | 6202*2 | 241 | 139 | 115*100 | 84*72 | 11 |
